Ch1:2″TDandCh2:24″PTwith5″ProbeTip

Name: Ch1: 2" TD and Ch2: 24" PT with 5" Probe Tip
Brand: none
SKU: HiTemp140X2-2TD-PT5
Availability: InStock

£0.00

HiTemp140X2-2TD-PT1 | Channel 1: 2″ TD rigid probe | Channel 2: 24″ PT mineral insulated probe with 5″ probe tip

Information

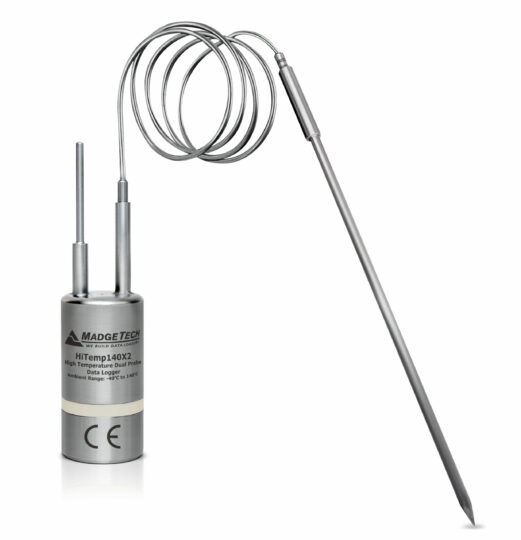

HiTemp140X2-2TD-PT1 is an extreme temperature data logger that has two external temperature channels.

Channel 1: 2" TD rigid probe

Channel 2: 24" PT mineral insulated probe with 5" probe tip

Manufacturer: MadgeTech
Parameter(s): Temperature
Usage Type: Multiple
Connectivity: USB via interface
Sensor internal or external: External
Channels: 2
Sensor type: [TD] Rigid 2.0" x 0.125" with 0.188" transitional diameter
[PT-1] Mineral Insulated Probe: Probe Tip 1.7" x 0.125"
Bendable Portion 22" x 0.062"
[PT-5] Mineral Insulated Probe: Tip 4.8" x 0.125" with 1" x 0.188" handle
Bendable Portion 22" x 0.062"
[FP 36] Flexible Probe 36" x 0.10"
[FP 72] Flexible Probe 72" x 0.10"
Memory: 32767 readings
Sample rate: 1 reading a second ~ 1 reading a day.
Range: [TD] Rigid Probe: -200 °C to +260°C
[PT] Bendable Probe: -200 °C to +350°C
[FP] Flexible Probe: -60 °C to +260°C
Accuracy: +/- 0.1°C
Resolution: 0.01°C
Material: 316 Stainless Steel
Power: User replaceable battery
Battery Life: 365 days
Dimensions: Data logger 1.89" x 0.97"
Environment: IP68
Operating Conditions: -40 °C ~ +140 C
-200°C ~ +250°C (With Thermal Shield)
Features: Suitable for use in autoclaves, cooking and package validation
Compatible with thermal shield for use in extreme temperatures
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer
