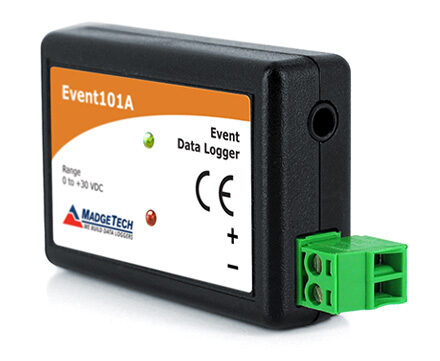

Event101ADataLogger
By MadgeTech Data LoggersOverview
Event recording data logger
Record
Occurrences of a specific event via inputs 0 to 30 V
Long runtime
Collect up to 838K data for up to 10 years
Cost Effective
Utilises the free powerful Madgetech software for simple or in-depth analysis. Optional secure software is available for applications that require 21 CFR 11 compliance.
Information
Product Description
Requires IFC200 interface and free software (see downloads section).
The Event101A data logger monitors events and records whilst time stamping each event.

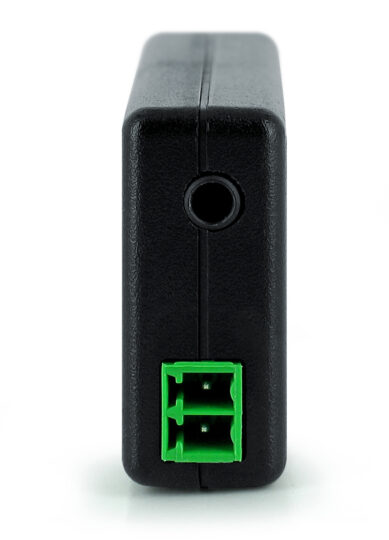

The 10 year battery life makes the Event101A suitable for long term studies and a removable screw terminal block which enables the data logger to be removed and returned from its location without interrupting installed wiring. Push button start enables the Event101A to be pre programmed off site and started by the operator when insitu. A start delay of up to 18 months can be programmed by the user.
The powerful free MadgeTech software enables users to convert data into required units and data can be viewed in graphical or tabular formats. Data can be exported to excel or PDF format for easy distribution.
Applications include relay or dry contact closure, monitoring Gas, Water or Electric meters. Time and traffic studies.
Specifications
- Manufacturer
Madgetech
- Parameter(s)
Event
- Usage Type
Multi use
- Connectivity
USB via IFC200 interface
- Channels
Single
- Memory
838,041 readings; software configurable memory wrap
838,041 readings in multiple start/stop mode- Sample rate
4Hz to 1 event every 24 hours
- Resolution
4 Hz (reading rate selectable in software)
- Material
Polycarbonate
- Power
Battery
- Battery Life
10 years typical, dependent upon frequency and
duty cycle- Dimensions
1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
- Environment
IP54 for dry environments used with Waterbox101A for IP65 applications
- Operating Conditions
-40 °C ~ +80 °C and 0 %RH to 95 %RH non-condensing
- Alarm
User selectable high and low limits; blinking LED for alarm and low battery
- Features
User replaceable battery, Push button start, Optional password protection, LED, Battery life indicator, up to 10 year battery life
