Product Description

Uniform Temperature Recording

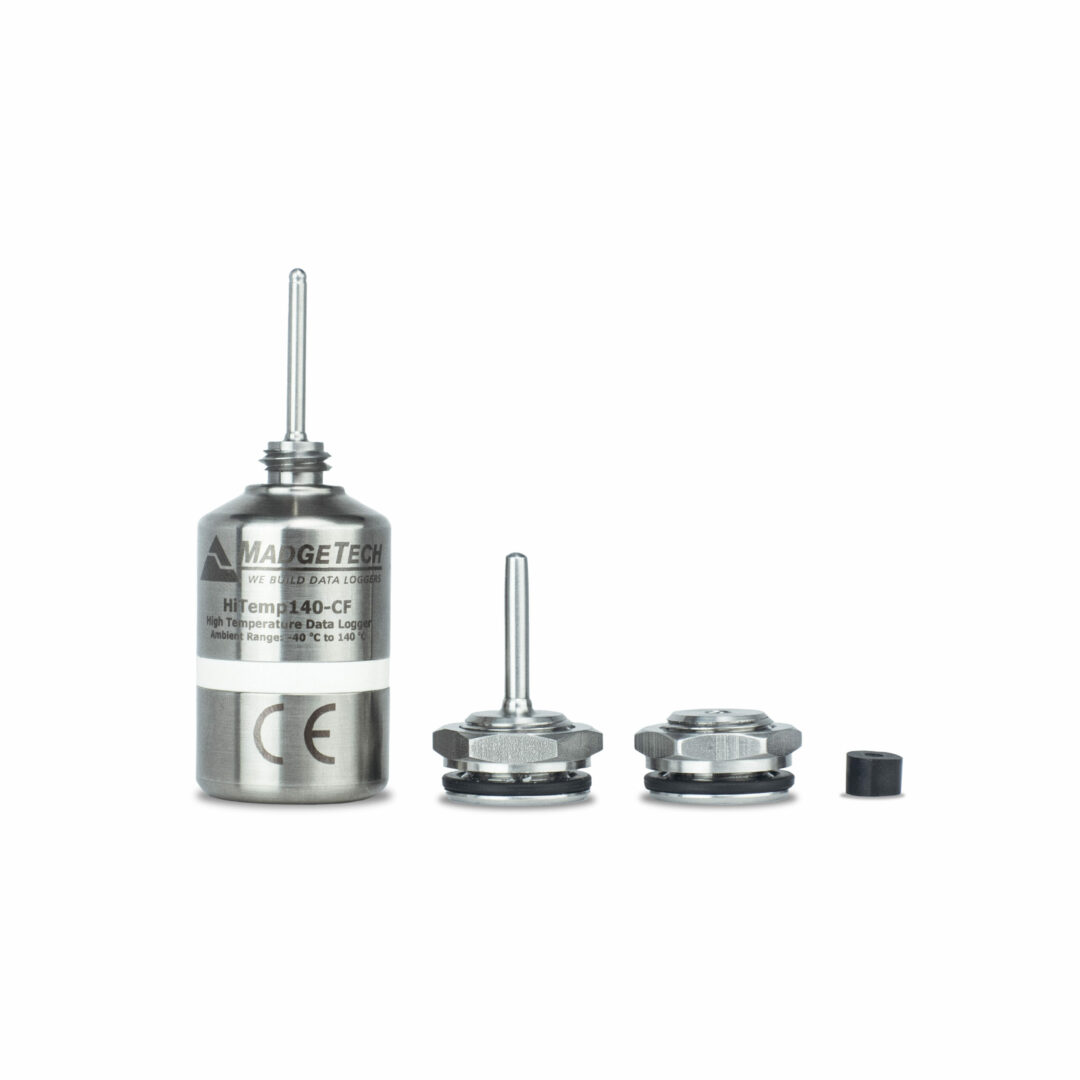

Achieve consistent and accurate temperature measurements with the HiTemp140-HPT, a premier solution for heat penetration studies. This robust system includes the HiTemp140-CF, a data logger with a secure screw thread, the CF202 and Thermalock canning fittings, and an M12 spanner to ensure a tight and secure setup.

Customisable to Your Needs
The HiTemp140-HPT offers flexibility with four available probe lengths. Please refer to the can sizing document for proper guidance. The selected length applies to both the HiTemp140-CF probe and the Thermalock sheath. Additionally, the supplied fittings are compatible with various packaging types, including jars, bottles, and pouches.

Robust and Accurate
The HiTemp140-CF MadgeTech validation data loggers provide precise temperature recording with an accuracy of +/-0.1°C across a wide temperature range. This ensures reliable data for your critical heat penetration studies.

Easy to Use
Setting up the HiTemp140-HPT is straightforward. Configure a single HiTemp140-CF using the IFC400 interface or manage multiple data loggers with the IFC406 multiplexer. The stainless steel, submersible IP68 construction guarantees durability and reliable operation in any environment between -40°C and +140°C.

Utilize the MT4 software to streamline your data management. The 'workflows' feature allows automatic downloading and saving of data, generating customised reports, and performing comprehensive analytical functions.

• Graphical temperature vs. time with threshold analysis
• Table of temperature vs. time data
• Statistical evaluation
  • Maximum
  • Minimum
  • Average
  • Change over time
  • F0
  • PU

Calibration Certificate

• Includes ISO17025 calibration certificate at standard points 30 and 140°C
• Custom calibration: 3 user defined points across measuring or operating range

What else is required?

IFC400 or IFC406 interface along with free issued MT4 software (see downloads section).
