1.7″Probetip

£0.00

Overview

Semi-Flexible probe, 1.7″ sensor tip, high temperature data logger.

Information

Product Description

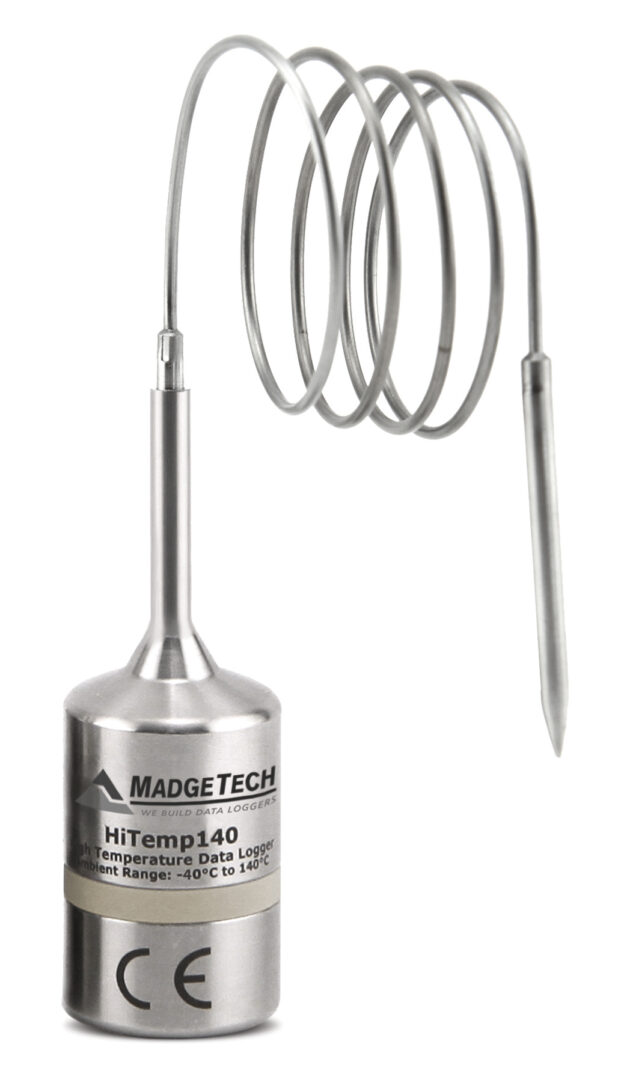

HiTemp140-PT-1 has a 1.5" sensor tip at the end of a 24" mineral insulated cable run. This cable and sensor will collect precise (+/-0.1°C) data in the harshest of environments. The semi-flexible probe is ideally suited to product and air temperature verification studies. A carefully configured semi flexible probe can be coiled, bent or angled in any direction and will stay in that position throughout the validation exercise.

Configure a single HiTemp140-PT-1 using the IFC400 interface or multiple data loggers with the IFC406 multiplexer. Stainless steel, submersible IP68 construction enables the operation in any environment between -40°C and +140°C (with no time limit) or -200°C to +250°C for a limited time, using the TSK shield and +350°C using the ThermoVault Max barrier.

Once the validation exercise has been concluded, wait for the data loggers to cool down or warm up and insert them back into the interface, using MT4 software and 'workflows' to automatically download and save data before generating customised reports and performing analytical functions, including:

  • Graphical temperature vs. time with threshold analysis
  • Table of temperature vs. time data.
  • Statistical evaluation
    • Maximum
    • Minimum
    • Average
    • Change over time
    • F0
    • PU

Compatible with the HiTemp140 range of products and accessories which encompass the demand for reliability and high performance at reasonable prices.

Also available with 5" sensor tip.

Requires: IFC400 or IFC406 interface along with free issued MT4 software

Specifications

Manufacturer

MadgeTech

Parameter(s)

Temperature

Usage Type

Multiple

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

1

Sensor type

1.7" x 0.125" RTD probe with 24" mineral insulated probe cable

Memory

32767 readings

Sample rate

1 reading a second ~ 1 reading a day.

Range

-200°C ~ + 350°C

Accuracy

+/- 0.1°C

Resolution

0.01°C

Material

316 Stainless Steel

Power

User replaceable battery

Battery Life

365 days

Dimensions

Data logger 1.9" x 0.97"

Environment

IP68

Operating Conditions

-40 °C ~ +140 C
-200°C ~ +350°C (With Thermal Shield)

Features

Suitable for use in autoclaves
Compatible with thermal shield for use in extreme temperatures
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer
