pHtemp2000pHandTemperatureDataLogger
By MadgeTech Data LoggersOverview

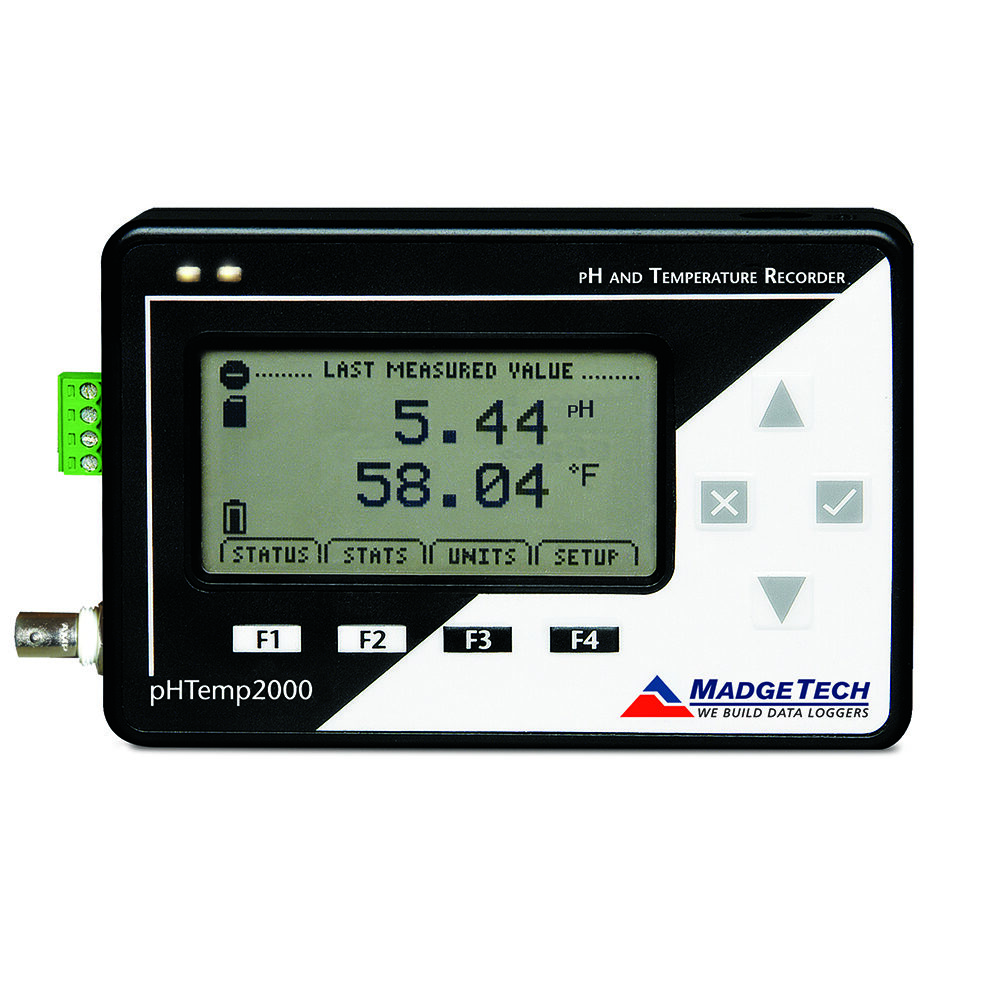

Rugged, standalone, battery powered, LCD display temperature and pH data logger
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Data cable - Required to download data
LCD Display
The display allows immediate viewing of current readings and a large internal memory of 131,071 reading per channel for long term studies
Measures
-2 to +16pH via any electrode fitted with BNC connector and -40 °C to +110 °C using a 4 wire PT100 temperature sensor
Cost Effective
Utilises the free powerful Madgetech software for simple or in-depth analysis. Optional secure software is available for applications that require 21 CFR 11 compliance.
Information
Product Description
Please note: Requires IFC200 interface
The pHtemp2000 features an LCD display for checking real time readings and an large internal memory of 131,071 reading per channel for long term studies. Battery powered for field use and also supplied with a 12V mains adaptor for fixed installations.
Temperature is measured using a highly accurate RTD probe (sold separately) wired directly into the pHtemp2000. The pH is measured using commonly available pH electrodes and is connected to the pHtemp2000 using a female BNC connector. The free powerful Madgetech software enables users to program and download data directly froma PC or laptop. Detailed reports can be exported in PDF and excel for easy distribution.
Specifications
- Manufacturer
Madgetech
- Parameter(s)
Temperature, pH,
- Usage Type
Multi use
- Connectivity
USB via IFC200 interface
- Sensor internal or external
External sensors
- Channels
2 channels
- Sensor type
RTD and pH
- Memory
131,071 readings per channel
- Sample rate
1 reading every 2 seconds up to 1 reading every 24 hours
- Range
-40 °C ~ +110 °C
-2 pH ~ +16 pH (±1000 mV)- Accuracy
±0.15 °C
±0.01 pH- Resolution
0.01 °C
0.01 pH/0.001 pH- Material
Black annodized aluminum
- Power
9V lithium
user replaceable- Battery Life
1 year battery life at 1 minute reading rate with display off. 30 days typical with continuous display use. Optional AC adapter available.
- Dimensions
122 mm x 84 mm x 32 mm
- Operating Conditions
-5 ºC ~ +50 ºC
0 %RH ~ 95 %RH (non-condensing)- Features
Rugged, standalone, battery powered, LCD display temperature and pH data logger
Downloads
Product Brochure
pHtemp2000 Datasheet WPLSPDF • 2 MB
Software - Windows PC only
MadgeTech SoftwareZIP • 25MB
