PRTemp140 NPT
PRTemp140 NPT Luer Lock print
PRTemp140 NPT
PRTemp140 NPT Luer Lock print
PRTemp140

PRTemp140 Autoclave Pressure and Temperature Data Logger

From: £1,015.00

Cost effective autoclave pressure and temperature data logger.

Product Description

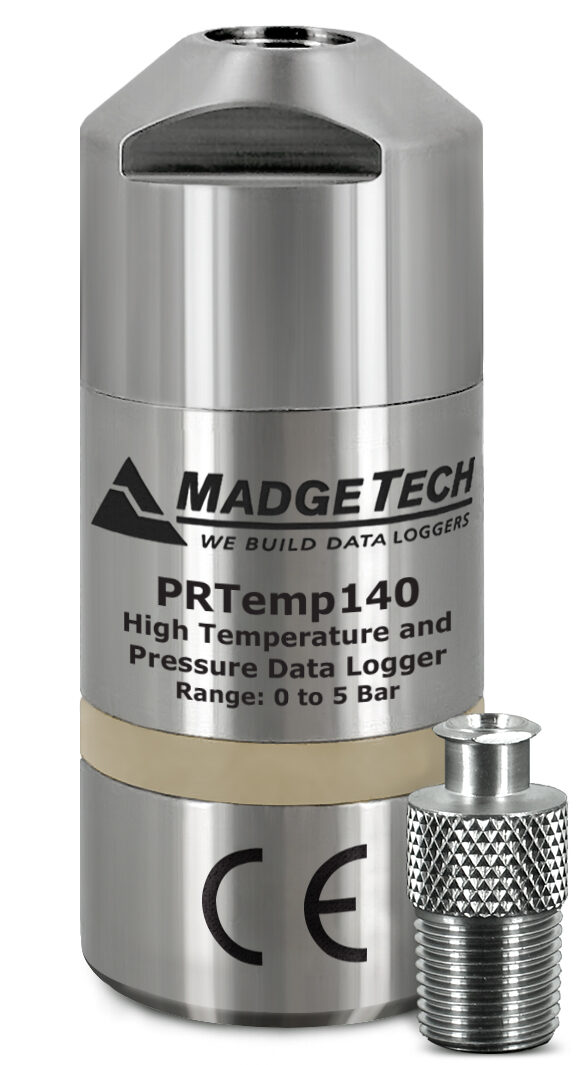

The PRTemp140 is a rugged combined pressure and temperature data logger that measures 0 to 5 bar in harsh environments up to + 140°C. Specifically designed to validate autoclaves and sterilisers in the medical and pharmaceutical industries the PRTemp140 boasts features of much more expensive competitors.

Manufactured from stainless steel the durable PRTemp140 is fully submersible with a IP68 rating and benefits from a field replaceable battery.

Often used in conjunction with the HiTemp140 temperature data loggers the free Madgetech software enables users to analyse pressure along side temperature overlaying in graphical or tabular data. Lethality/sterilisation points F0 & A0 can automatically be calculated in the software and data exported in excel and PDF for easy distribution.

Optional 21 CFR 11 compliance Madgetech secure software and validation workbook are available.

Requires: IFC400 or IFC406 interface along with free issued MT4 software

Calibration option standard points: 0, 121, 134°C and 0, 2.5, 5 bar

Manufacturer

Madgetech

Parameter(s)

Pressure / temperature

Usage Type

Multi use

Connectivity

USB via IFC400 interface

Sensor internal or external

Internal

Channels

Single

Sensor type

Semiconductor Strain Gauge

Memory

32,767 readings

Sample rate

1 second to once every 24 hours

Range

0 ~ 5 Bar (0 ~ 72.5 PSIA)
-20°C ~ +140°C

Accuracy

±0.03 Bar (±0.435 PSI)
+20 °C ~ +140 °C
±0.1 °C

Resolution

0.1 mBar (0.0015 PSIA)
0.01 °C

Material

Stainless Steel

Power

3.6v lithium

Battery Life

2 years typical (1 minute reading rate at 25°C)

Dimensions

58.2 mm x 24.6mm x 24.6mm

Environment

-20°C to +140°C , 0%RH to 100%RH
Note: The PR140 may be used above +60°C for up to 8 hours, per 24 hour period

Operating Conditions

-20°C to +140°C , 0%RH to 100%RH
Note: The PR140 may be used above +60 °C for up to 8 hours, per 24 hour period

Features

Cost effective autoclave pressure and temperature data logger

Product Brochure
prtemp1000 Data Sheet WPLS PDF 1 MB
Instruction Manual
PRTemp140 Information Card WPLS PDF 299 KB

Product Description

The PRTemp140 is a rugged combined pressure and temperature data logger that measures 0 to 5 bar in harsh environments up to + 140°C. Specifically designed to validate autoclaves and sterilisers in the medical and pharmaceutical industries the PRTemp140 boasts features of much more expensive competitors.

Manufactured from stainless steel the durable PRTemp140 is fully submersible with a IP68 rating and benefits from a field replaceable battery.

Often used in conjunction with the HiTemp140 temperature data loggers the free Madgetech software enables users to analyse pressure along side temperature overlaying in graphical or tabular data. Lethality/sterilisation points F0 & A0 can automatically be calculated in the software and data exported in excel and PDF for easy distribution.

Optional 21 CFR 11 compliance Madgetech secure software and validation workbook are available.

Requires: IFC400 or IFC406 interface along with free issued MT4 software

Calibration option standard points: 0, 121, 134°C and 0, 2.5, 5 bar

Manufacturer

Madgetech

Parameter(s)

Pressure / temperature

Usage Type

Multi use

Connectivity

USB via IFC400 interface

Sensor internal or external

Internal

Channels

Single

Sensor type

Semiconductor Strain Gauge

Memory

32,767 readings

Sample rate

1 second to once every 24 hours

Range

0 ~ 5 Bar (0 ~ 72.5 PSIA)
-20°C ~ +140°C

Accuracy

±0.03 Bar (±0.435 PSI)
+20 °C ~ +140 °C
±0.1 °C

Resolution

0.1 mBar (0.0015 PSIA)
0.01 °C

Material

Stainless Steel

Power

3.6v lithium

Battery Life

2 years typical (1 minute reading rate at 25°C)

Dimensions

58.2 mm x 24.6mm x 24.6mm

Environment

-20°C to +140°C , 0%RH to 100%RH
Note: The PR140 may be used above +60°C for up to 8 hours, per 24 hour period

Operating Conditions

-20°C to +140°C , 0%RH to 100%RH
Note: The PR140 may be used above +60 °C for up to 8 hours, per 24 hour period

Features

Cost effective autoclave pressure and temperature data logger

Product Brochure
prtemp1000 Data Sheet WPLS PDF 1 MB
Instruction Manual
PRTemp140 Information Card WPLS PDF 299 KB
