RFRHTemp2000AUSBandWirelessHumidityTemperatureDataLogger

By MadgeTech Data Loggers
From: £278.75
Wireless Cloud and alarm functions LCD display
From: £278.75
Customise

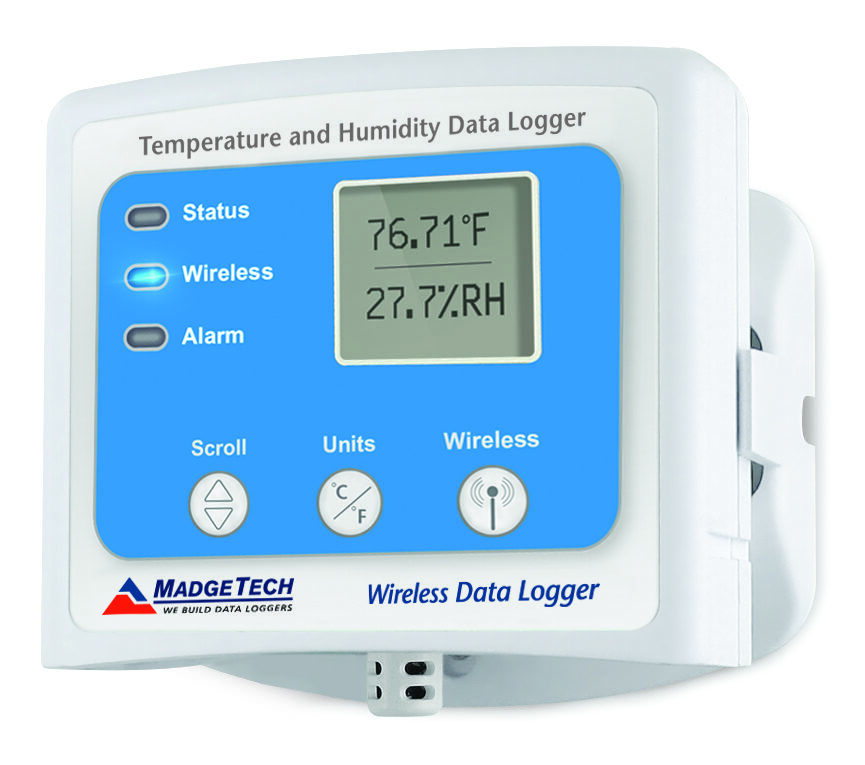

RFRHTemp2000A temperature & humidity data loggers
RFRHTemp2000A temperature & humidity data loggers
RFRHTemp2000A temperature & humidity data loggers

Overview

Humidity and temperature USB or wireless radio data logger.

Customise this datalogger

Enhance your monitoring with these options

  • Calibration Certificate *
  • Power adapter
  • Software upgrade
  • Wireless Transceiver
* Calibration takes between 3 - 7 business days Add and customise

Wireless Measurement

Over PT100 4 wire

Cloud

Compatible with MadgeTech cloud for remote data collection via the internet

LCD Display

The display allows immediate viewing of current readings along with historical statistics and alarm status

Information

Product Description

The RFRHTemp2000A is a USB humidity and temperature data logger with integral sensors and LCD display, built-in wireless radio communication for optional real-time monitoring and alarm management.

it is battery or mains powered so it can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD screen, trigger local audible/visual alarms and connect to a USB computer for periodic analysis. If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeaters.

Ideally suited for use in a regulated environment to collect and display accurate data, connect to the new 'Cloud Relay' for internet based analysis and email alarm management.

Hardware Features

  • USB and Wireless connectivity
  • Temperature, Humidity data logger
  • Email and audible alarms
  • LCD display
  • Battery or optional mains power supply
  • Cloud services compatibility

Applications

  • Incubator validation
  • Pharmaceutical and Medical
  • Laboratory and clean rooms
  • Ambient monitoring

MT4 standard software Features

  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with: Integral sensors, battery, mounting/stand bracket , MT4 software and USB cable.

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device
  • Mains power adaptor

Specifications

Manufacturer

Madgetech

Parameter(s)

Temperature and Humidity

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

Internal

Channels

2 channel

Sensor type

Resistance Temperature Detector (RTD)

Memory

16,128 readings per channel

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

Internal channel : -20 ~ 60°C
0 %RH to 95 %RH

Accuracy

±0.5 °C
(0°C ~ 55°C)

±3.0 %RH
(25 % ~ 75 %RH @ 20 °C ~ +40 °C)

Hysteresis Error 1 % typical, 3 % Maximum

Resolution

0.01°C
0.1 %RH

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

3 years typical at a 1 minute reading rate

Dimensions

76.2 mm x 88.9 mm x 24.1 mm

Environment

-20 °C to ~ 60 °C, 0 %RH to 95 %RH non-condensing

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless , email & audible alarms, 21 CFR 11, LCD display, battery or mains powered

Downloads

Product Brochure

RFRHTemp2000A Datasheet
PDF • 1 MB

Instruction Manual

RFRHTemp2000A User Guide
PDF • 407 KB

Software - Windows PC only

MT4 Software
ZIP • 30MB

Consider these alternatives

T&D Data Loggers

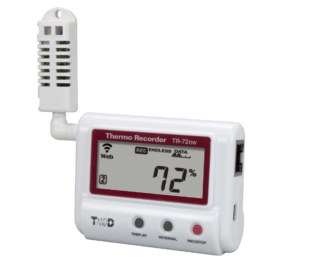

TR72NW
