4 Channel Voltage Data Logger
Multi-function wireless radio Pulse data logger supplied with PIC-3150 Pulse adaptor
Part of a suite of products designed to work as a complete monitoring system
Multi-function - Pulse
Supplied with a Pulse adaptor but compatible with Thermocouple, PT100 voltage and current modules.
Bluetooth setup with wireless data collection via LAN/USB/WiFi/GSM base station options
Automated download with emails alarms and online cloud reporting via the free WebStorageService (WSS)

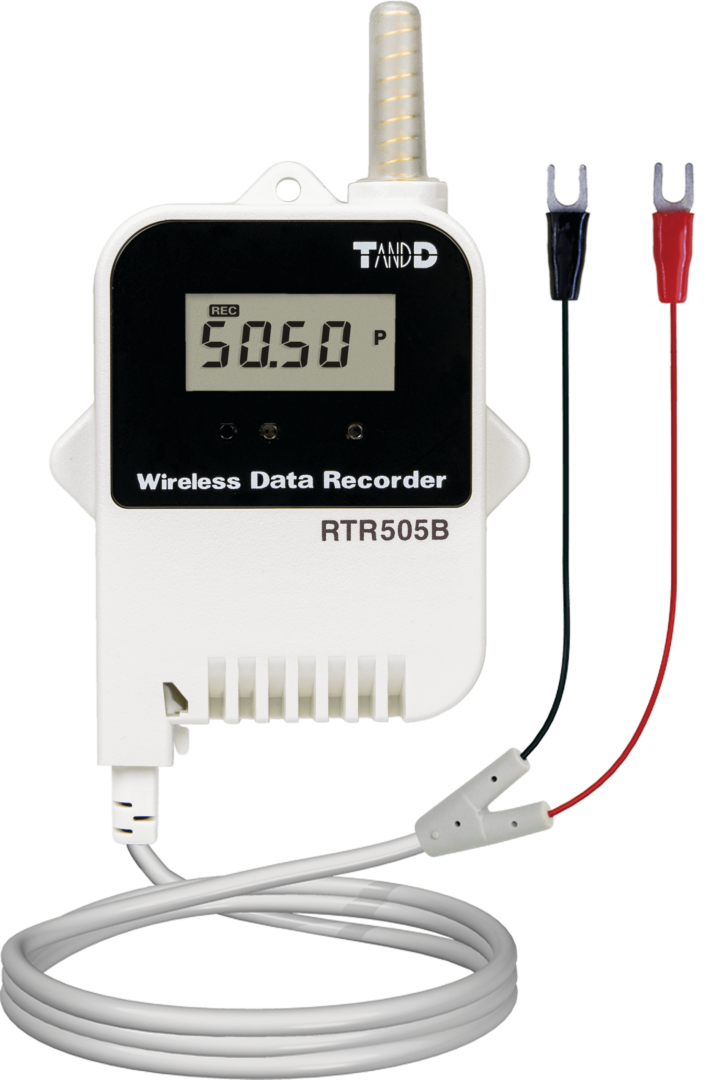

This package includes: 1 x RTR505B Multi-function data logger and 1 x PIC-3150 Pulse adaptor
The RTR505B is a multi-function wireless data logger from T&D that includes an LCD display and comes with five selectable adaptor options for delivering Voltage (VIM-3010), Current (AIM-3010), Thermocouple (TCM-3010), PT100 (PTM-3010), or Pulse (PIC-3150) data to WSS online service when used in conjunction with an RTR500B base station.
Simply partner your RTR505B wireless data logger with the designated base station via Bluetooth using a device running iOS or Android select or via USB on a Windows PC.
Use your RTR505B wireless data logger to create a cost effective – local or global – scalable network of wireless data loggers, with flexible access options via LAN/WLAN/USB and even 4G GSM. RTR505B multi-function wireless data logger will help you ensure that your data can be reliably retrieved and actioned irrespective of existing I.T. infrastructure.
RTR505B multi-function data logger comes with 3.6v user replaceable battery as a standard, but it can be purchased with a [L] Long life battery upgrade or [PSU] external mains power adapter.
By combining the RTR505B multi-function data logger with various optional modules, it is possible to measure temperature, voltage, current, and pulse data with ease.
RTR505B Multi-Function Data Logger Adaptor Options:
Thermocouples are an industry standard temperature sensor, although accuracy figures are typically less than that of a thermistor or platinum resistant RTD, no other sensor has a wider measurement range or a smaller measurement tip. These characteristics make a thermocouple ideally suited to applications such as the validation and monitoring of liquid Nitrogen dewars and the surface temperatures on pipework.
A selection of our probes can be found on our website
RTR505B Multi-Function Data Logger Application Examples:
The RTR500B Multi-Function Wireless Data Logger Features:
Free service: Provide our engineers with details of your monitoring requirements and we will be pleased to assist you in setting up your system ready for deployment
0 to 3.5kHZ
0 to 61'439 (pulse count)
Dimensions are detailed in the 'Adaptors' PDF accessed via the downloads tab.
Wireless radio to USB [RTR500BC]
Wireless radio to Network [RTR500BW]
Wireless radio to GSM [RTR-500MBS and RTR500MB]
Wireless radio to Handheld collector [RTR-500DC]
16000 reading back-up memory
1 reading a second ~ 1 reading every hour
ABS Plastic with O-ring seal
User replaceable battery
Mains with power supply adaptor
10 months - Standard battery
24 ~ 48 months - [L] Large battery
86mm x 47mm x 19mm - Standard battery
86mm x 47mm x 46.5mm - [L] Large battery
Sensor must be kept dry
-40°C ~ +80°C
Email when using USB or network base station
SMS and email when using GSM base station
On-line when using TandD Webstorage-service
Free remote internet access.
Free offline analytical and reporting utilities
Robust and durable design.
Accurate and can be recalibrated
User replaceable battery
