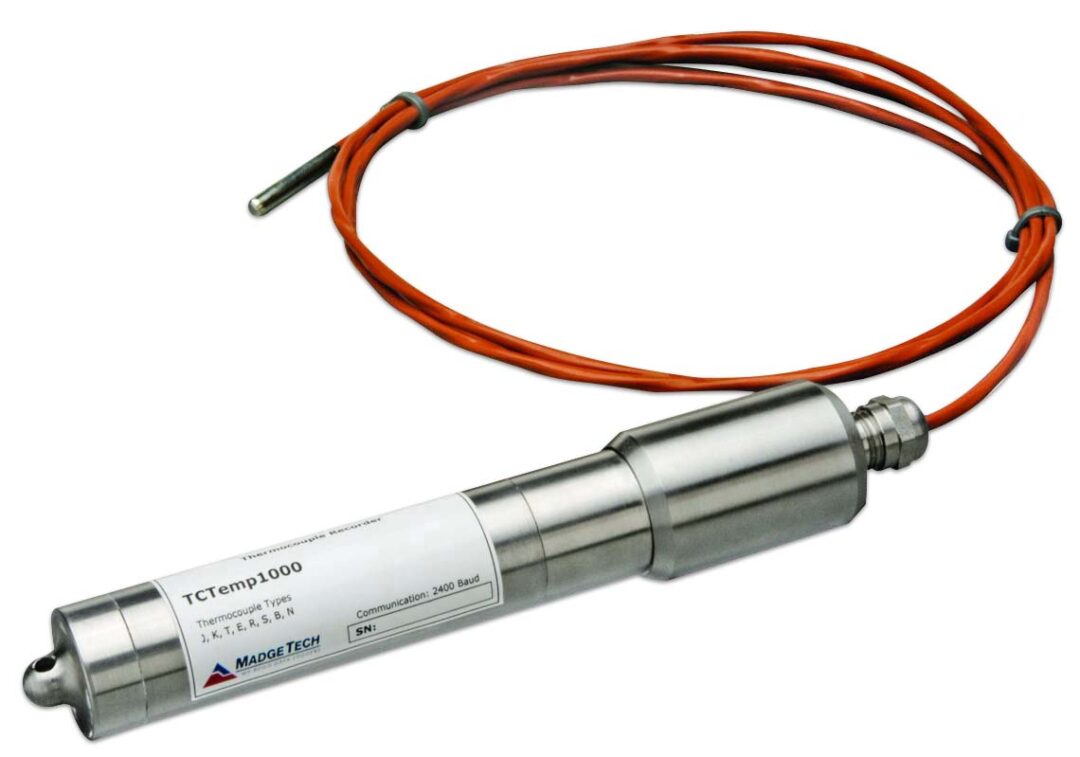

TCTemp1000ThermocoupleTemperatureDataLogger
By MadgeTech Data Loggers
Overview
Submersible, Rugged, standalone, battery powered, extreme temperature thermocouple data logger
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Probe Options
- Calibration certificate
- Data Interface - Required to download data
- Software upgrade
IP68 Submersible
Measures temperature over the range of -270 to +1370 °C. Compatible thermocouples probes.
Robust
Stainless steel data logger with eyelet for tethering in place
Cost Effective
Utilises the free powerful Madgetech software for simple or in-depth analysis. Optional secure software is available for applications that require 21 CFR 11 compliance.
Information
Product Description
Industrial grade rugged data logger for measuring and recording temperature in challenging environments.
The submersible IP68 rated robust stainless steel is ideal for for harsh field based or industrial studies. The Solid State memory can record up to 16,383 readings per channel and will retain data even in the event of power loss. Free powerful MadgeTech software allows for simple or in depth data analysis.
1/4 inch NPT fitting enables simple connection to a wide range of applications.
Available in a number of pressure ranges
Features
- Large memory
- Rugged design
- Submersible IP68
- Battery powered
- 1 year battery life (typical )
Applications
- Oil & gas industries
- Process control systems
- Chemical processing
- Environmental studies
- Waste water treatment
- HVAC
Specifications
- Manufacturer
Madgetech
- Parameter(s)
Temperature
- Usage Type
Multi use
- Connectivity
USB via IFC200 interface
- Sensor internal or external
Internal and external thermocouple
- Channels
2 channel
- Sensor type
internal semiconductor and external thermocouple
- Memory
16,383
- Sample rate
1 reading every 2 seconds ~ 1 reading every 12 hours
- Range
K type thermocouple -270 ~ +1370°C
Internal sensor -40 ~ +80°C- Accuracy
0.5°C
- Resolution
0.1°C
- Material
303 stainless steel
- Enviroment
IP68
- Power
TLH-5902 Lithium Battery 3.6V 1/2 AA
- Battery Life
1 year typical
- Dimensions
188 mm x 31 mm
- Operating Conditions
-40 °C to ~80 °C , 0 %RH to 100 %RH
- Features
Submersible, Rugged, standalone, battery powered, extreme temperature thermocouple data logger
Downloads
Product Brochure
TCtemp1000 Datasheet WPLSPDF • 1 MB
Instruction Manual
TCTemp1000 Reference card WPLSPDF • 215 KB
Software - Windows PC only
MadgeTech SoftwareZIP • 25MB
