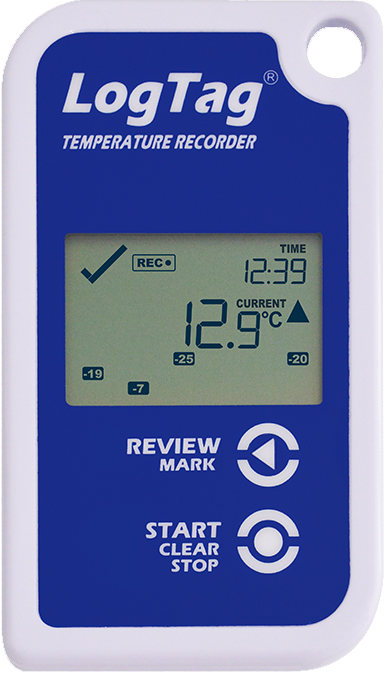

The TRED30-16R is a min/max temperature data logger with audible alert and connector for an external temperature sensor, LCD display, 30-day summary, memory for 15’905 readings and user replaceable battery.
Part of a suite of products designed to work as a complete monitoring system
Audible Alarm
Integrated audible alarm triggered if readings outside pre-set limits are breached
LCD Display
The display allows immediate viewing of current and min/max /alarm, daily entries over a 30 day period.
Replaceable Battery
An inexpensive coin cell battery that can be sourced and replaced without special tools.
Requires LogTag temperature probe, USB cradle interface and LogTag software for measurement, configuration and analysis (see downloads section).
The TRED30-16R is ideally suited for use as a fridge or freezer data logger where temperatures of time temperature sensitive medical products are stored. It is also ideal in the validation of shipping containers used to transport medicinal products in the supply chain.
The easy to read LCD display delivers key information at a glance and enables users to navigate through a 30 day summary of min/max results and alarm events before interfacing with a computer.
Display functions: Current temperature | Alarm Status - In range (Tick) out of range (cross) | Recording status| Battery condition
If a measurement is recorded outside of user definable temperature alarm limits an audible alert will be generated to attract the attention of responsible personnel.
The next step will be to review details of the alarm on the local LCD display before interfacing the data logger with a computer to inspect the collected time vs temperature data.
Configuration is performed using LogTag data logger software. Pair and address the LogTag TRED30-16R with an appliance or provide a unique name for use in mapping the thermal properties of an appliance or location within a storage area. Set a recording interval, low and high alarm limits and the method of triggering the recording (Button start or predefined date and time) and deploy the data logger using the handy anchoring point (Hole in the corner) or using the optional mounting bracket. Review the data using the LCD display and collect the data logger for download in the event of temperature excursion or for weekly or monthly audit. Upon insertion of the data logger into the USB cradle, downloaded data is stored automatically and presented in a clear and concise report which can be printed or distributed via email. Additional analysis can be performed within the software using the graphical, tabular and statistical features.
Supplied with user replaceable battery.
LogTag
Temperature
Multiple Use
USB via interface
External
1
Thermistor
15,905
(66 days at 6 min recording interval)
30 days of Min/Max/Duration and alarm statistics
30 seconds ~ 60 minutes
-40°C ~ +99°C
< +/-0.5°C between -20°C and +40°C
Contact our calibration department for advice on offset adjustment.
0.1°C between -40°C and +50°C
Polycarbonate
3V user replaceable battery
12 months
Assumes 6 minute recording interval, daily review of Min/Max on LCD and daily download
NOTE: Continual activation of the audible alarm will reduce the working life of the battery.
93mm (H) x 54.5mm (W) x 8.6mm (T)
IP61
-30°C ~ +60°C
Audible
LCD
Detailed in PDF Report
Audible alert, LCD and button 30 day calendar Min/Max, alarm summary navigation feature
Windows PC
RTCA/DO‐160G section 21 as category H
