2°CColdMark®TemperatureIndicator
Overview
Pack of 100 | 2°C temperature indicators
Information
Product Description
An adhesive, irreversible, visual alert device that clearly indicates if a product has been exposed to temperatures below a critical threshold.
Some chemicals, solvents and most importantly all vaccines can not be exposed to freezing temperatures, to do so could render them ineffective. Without an indicator or a data logger attached to these valuable products, it can be difficult to verify that a freeze event took place within the supply chain.
Available Trigger Thresholds
- ColdMark | -3°C
- ColdMark | 0°C
- ColdMark | 5°C
- ColdMark | 10°C
Operation | Simple installation with adhesive backing for fixing the temperature indicator to the package and clear visual indication of temperature excursion
Quality | Proven solution manufactured to the highest standard, overseen by ISO9001 procedures.

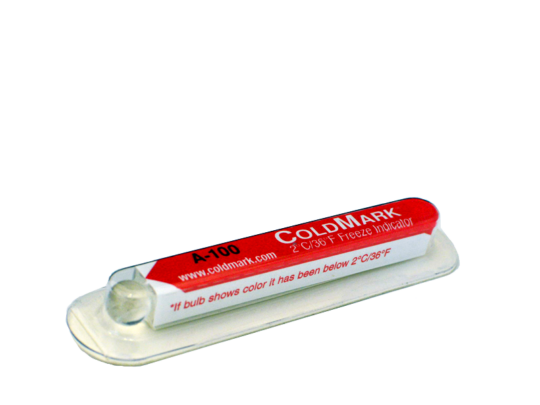

How it works | The ColdMark indicator bulb turns from clear to violet when the temperature goes below a predetermined threshold.
In this example, the 0°C indicator is shown but it will vary according to the threshold temperature that you choose. Please refer to the ColdMark instructions in the “Downloads” section for more details.
Specifications
- Manufacturer
Shockwatch
- Parameter(s)
Temperature
- Usage Type
Single use
- Deployment
Pressure sensative adhesive backing
- Available trigger temperatures
-3°C
0°C
2°C
5°C
10°C- Activation time
< 30 minutes
- Accuracy
1°C
- Dimensions
84mmx 19mm x 9mm
- Alarm
Visual pass/fail indication
- Features
Simple to mount and read
Validated, proven technology.
Low cost
