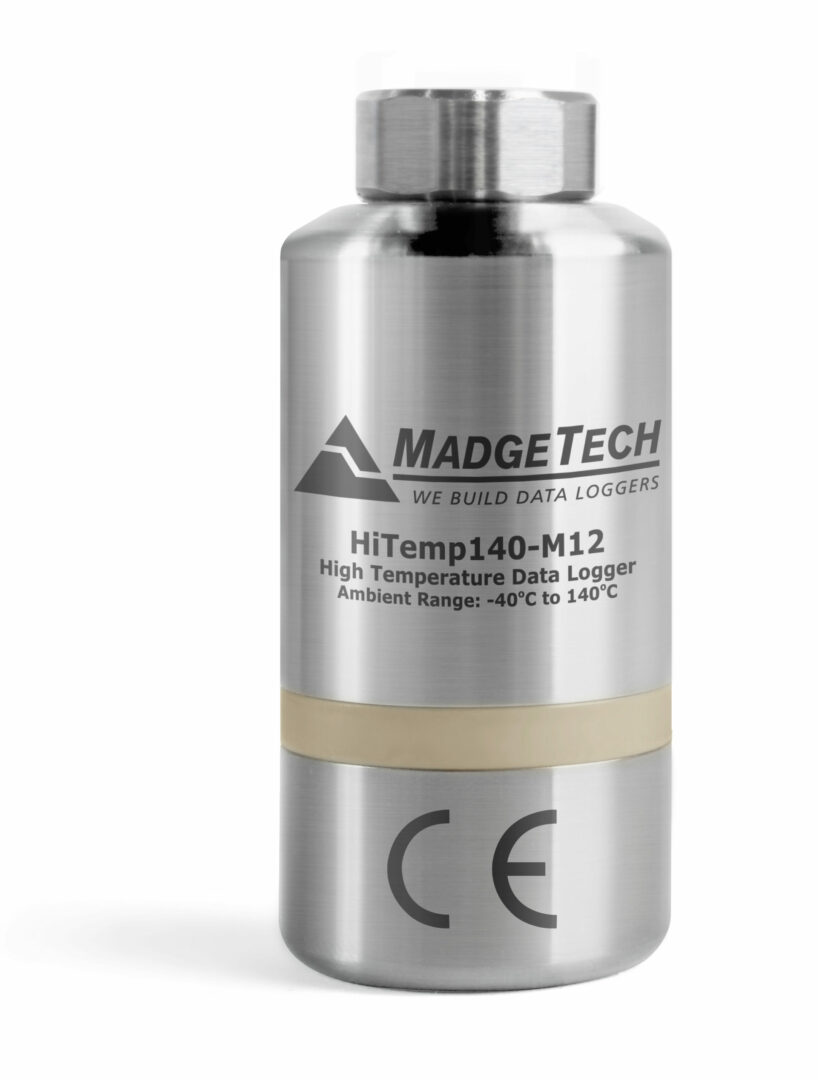

HiTemp140-M12HighTemperatureMultipleProbeDataLogger
By MadgeTech Data LoggersOverview
High temperature data logger with M12 connector for use with multiple probes.
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Calibration certificate
- Probes
- Data interface - One required to download data
- Mount
- Software upgrade
Compatible
With the ability to change probes as required. This device satisfies a multitude of applications.
Accurate
A probe dependant accuracy of +/- 0.05 °C is achievable
Easy to use
Self contained operation with interface and user friendly software. 21 CFR Part 11 compliance and GxP documentation available
Information
Product Description
Requires: IFC400 or IFC406 interface along with free issued MT4 software (see downloads section).
HiTemp140-M12 features an M12 connector enabling multiple probes to connected to a single M12 data logger. The M12 will collect precise (+/-0.1°C) data in the harshest of environments and record up to 850°C (depending on probe).
The range of M12 probes allows for flexibility across a range of applications using one data logger.
The semi-flexible probe is ideally suited to product and air temperature verification studies. A carefully configured semi flexible probe can be coiled, bent or angled in any direction and will stay in that position throughout the validation exercise.
Configure a single HiTemp140-M12 using the IFC400 interface or multiple data loggers with the IFC406 multiplexer. Stainless steel, submersible IP68 construction enables the operation in any environment between -40°C and +140°C (with no time limit) or -200°C to +250°C for a limited time, using the TSK shield and +350°C using the ThermoVault Max barrier.
Once the validation exercise has been concluded, wait for the data loggers to cool down or warm up and insert them back into the interface. Using MT4 software and 'workflows' to automatically download and save data before generating customised reports and performing analytical functions, including:
- Graphical temperature vs. time with threshold analysis
- Table of temperature vs. time data
- Statistical evaluation
- Maximum
- Minimum
- Average
- Change over time
- F0
- PU
Compatible with the HiTemp140 range of products and accessories which encompass the demand for reliability and high performance at reasonable prices.
Calibration Certificate
- Standard calibration: 30 and 140°C
- Custom calibration: 3 user defined points across measuring or operating range
- ISO17025 calibration available on request.
Specifications
- Manufacturer
MadgeTech
- Parameter(s)
Temperature
- Usage Type
Multiple
- Connectivity
USB via interface
- Sensor internal or external
External M12 probes sold separately
- Channels
1
- Sensor type
Various RTD Probes with M12 Connector (sold separately)
- Memory
43,690 readings
- Sample rate
4 readings per second ~ 1 reading a day
- Range
-200°C ~ + 850°C (probe dependant)
- Accuracy
-200 ~ +265°C = +/- 0.0015 ohms
+265 ~ +850°C = +/- 0.01% of reading- Resolution
0.01°C
- Material
316 Stainless Steel
- Power
User replaceable battery
- Battery Life
365 days
- Dimensions
Data logger 54.5mm x 24.6mm x 24.6mm
- Environment
IP68
- Operating Conditions
Data logger -40°C ~ +140°C
Probe -200°C ~ +850°C- Features
Suitable for use in autoclaves
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer
