iTag4HumidityandTemperatureDataLoggerandIndicator
By TempSen Data LoggersOverview
Single use humidity and temperature data logger with detailed electronic time temperature indicator functionality.

Single use
Up to 60 day run time. User configured. Deployable in environments -30 to + 70 °C and 0 to 100% rH

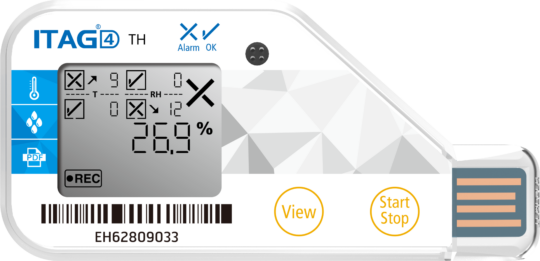

Detailed LCD
Presenting the status of high and low alarm ranges, current, historical temperature/humidity along with the operational status on the device

USB to PDF and PDF to Cloud
Secure embedded PDF reporting with optional Cloud utility TempSen CloudTM
Information
Product Description
Tempsen iTag4rH is a single use temperature and humidity USB, PDF, recording indicator, delivering all the functionality of a calibrated data logger but with the addition of a clear and detailed LCD display instantly providing details on recorded data, alarm excursions and transport duration statistics.
Designed to meet regulatory demands imposed on organisations operating in the field of pharmaceutical, biological and clinical trial supply chain this low cost, user configurable this data logger is ideally suited to both validation and verification exercises where humidity and temperature must be maintained during transportation of time temperature and humidity sensitive materials.
Each iTag4rH is supplied calibrated and ready to be configured using TempSen Express installed on a Windows PC or on any device with a web browser and USB port. Shipping profiles can be configured to last 1-60 days with user definable recording intervals and alarm ranges. Once received the iTag4rH LCD will deliver the critical information and simply connecting the data logger via USB will generate a detailed PDF report.
- 21 CFR Part 11 Compliant
- Suitable for frozen, refrigerated and ambient monitoring in transport
- End user readable with direct USB connection
- PDF automated reporting
- Supplied with validation certificate

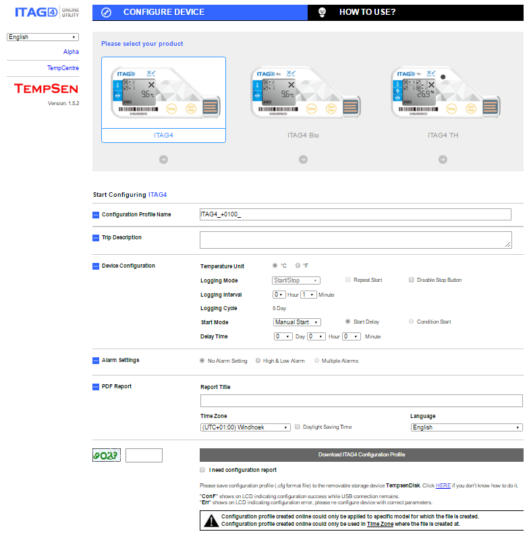

- Complete software free operation - Internet configuration utility
- Software installation - Using free TempSen Express software (See Downloads section)

INTUATIVE LCD INDICATION
LCD presents following key information of recording task.
- Alarm Status
- Running Status
- Monitoring Statistics
- Limit Violation Duration Time
- Limit Violation Event Indication

AUTO PDF REPORT WITH EMBEDDED RAW DATA
Automatically generated encrypted PDF format report, no software required to access data record, embedded raw data allows further analysis of data via TempSen Express and Cold Chain Cloud™.
Specifications
- Usage Type
Single Use
- Memory Capacity
7200 readings
- Measurement Range
-30°C...70°C (-22°F...158°F)
0% RH...100% RH- Accuracy
± 0.5°C (0°C…60°C), ± 1°C (rest range)
±4% RH (20% RH...80% RH), ±5% (rest range)- Resolution
0.1°C / °F, 0.1% RH
- Logging interval
1 minute...2 hours
- Alarm Ranges
High and low alarm
- Battery
3.0V CR2032 lithium battery
- Battery Life
60 days
- Shelf Life
2 years (1 year if activated)
- Display
LCD
•OK(√), Alarm(x), Running status
•Limit violation event indicator
•Duration time of each alarm zone
•Temperature and humidity statistics (max, min, avg)- Connection
USB
- Automatic Data File
Encrypted PDF report with embedded raw data
- Software
TempCentre Data Management Software
- Compatibility
Windows PC
- Dimensions
93mm L x 45mm W x 7mm H
- Weight
Approx. 25g
