LogTagGlycolBufferAdapter
By LogTag Data Loggers
Overview
70ml Glycol buffer adapter for use with ST100K-15 or ST100K-30 probe and your Glycol to dampen temperature readings in compliance with CDC requirements.
Build a system
Part of a suite of products designed to work as a complete monitoring system
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Glycol
Alarm buffer
Use the glycol buffer to dampen temperature readings in compliance with CDC requirements.
Requires ST100K Probe
The buffer is used with LogTag®s ST100K-15 or ST100K-30 sensors connected to any TRED30-16R, UTRED/UTRED30 or TREX-8 temperature loggers
Information
Product Description

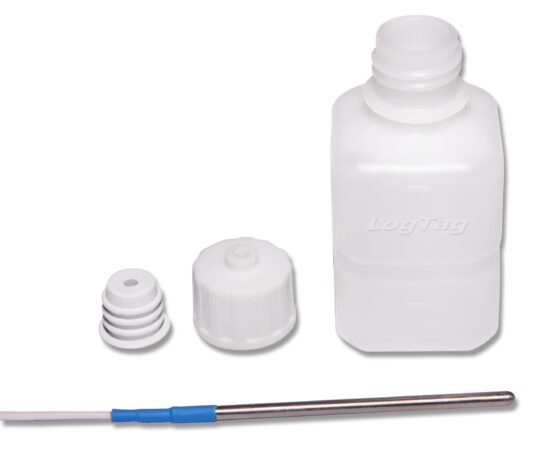

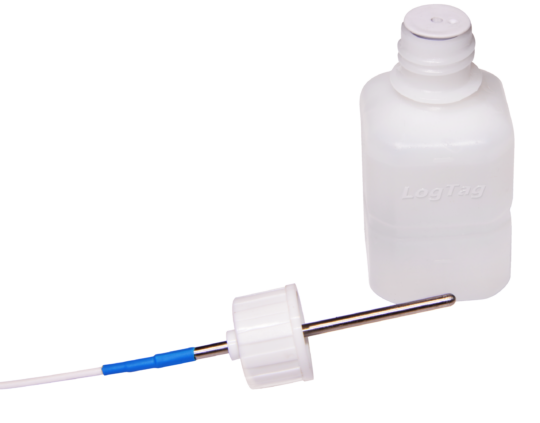

The 70ml LogTag® Glycol Buffer is used where vaccines need to be monitored during storage or transport. It mirrors the temperature environment inside a vaccine vial, creating realistic temperature tracking data, which allow you to monitor that vaccines are not exposed to excessively high or low temperatures.
The buffer is used with LogTag®s ST100K-15 or ST100K-30 sensors connected to any TRED30-16R, UTRED/UTRED30 or TREX-8 temperature loggers and approx. 57ml (1.9 fl oz) of glycol.
The buffer is also used with LogTag®s ST10M-15 sensor connected to any TREL/TREL30 and UTREL/UTREL30 loggers. These items are not part of the kit and need to be ordered separately.
70ml bottle supplied with seal, 79mm (H) 38mm (W) 38mm (D) vial and cap | T90 response time = 45 mins
Also available: 35ml bottle, 79mm (H) 30mm (W) 30mm (D) vial and cap | T90 response time = 41 mins
Note: External Temperature Probe and Glycol are not provided (select from drop down menu if needed)
Downloads
Instruction Manual
Glycol Buffer InstructionsPDF • 410 KB
