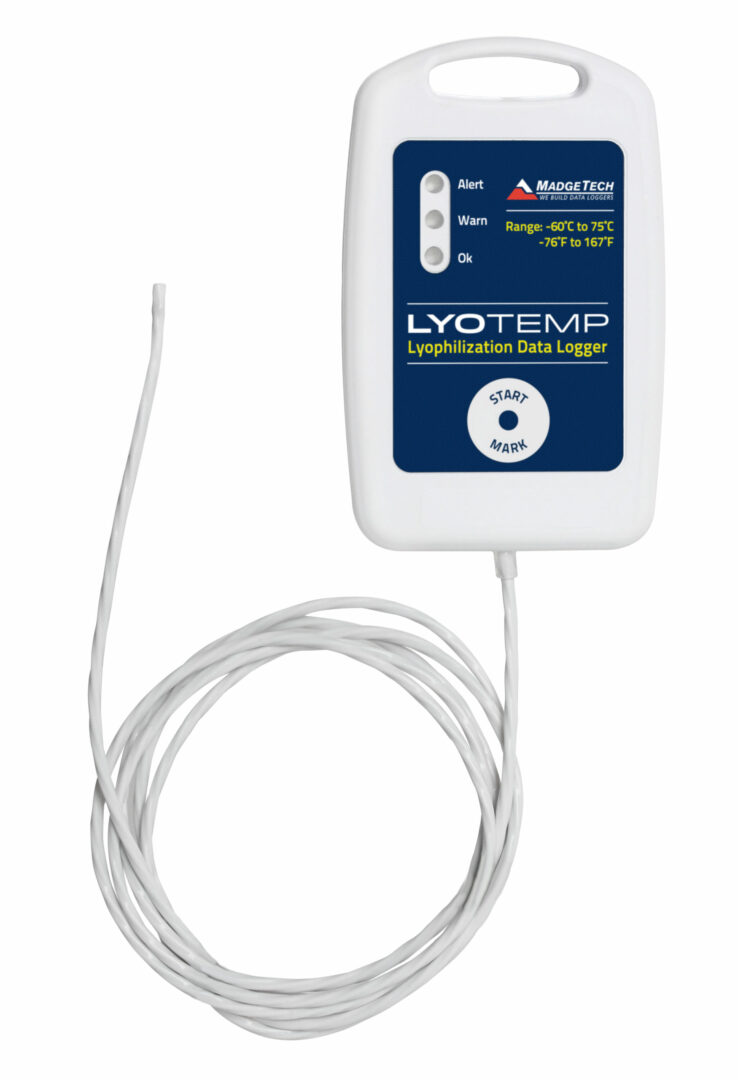

LyoTempLyophilizationDataLogger
By MadgeTech Data Loggers
Overview
External thermistor, extreme temperature, LED, Multi use data logger. Includes ISO17025 calibration certificate at standard points -60 and 25°C
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Interface - Required to download data
- Software upgrade
- Probe adapter
Rated for -60 °C
320000 temperature readings over -60 °C to +750 °C measurement range
Fast response
Temperature detection via 1219mm probe with 3.2mm diameter.
Cost Effective
Utilises the free powerful Madgetech software for simple or in-depth analysis. Optional secure software is available for applications that require 21 CFR 11 compliance.
Information
Product Description
Please note: Requires: IFC300 interface along with free issued MT4 software (see downloads section).
The LyoTemp Data Logger is specifically designed for Lyophilization process but is also used for a variety of extreme / ultra low temperature monitoring such as freezers and cryo shipping.
Includes ISO17025 calibration certificate at standard points -60 and 25°C
This cost effective solution utilises the free powerful Madgetch software for simple or in-depth analysis. Programming multiple data loggers is quick and easy using the simple batch program function and data can be exported in excel. Optional secure software is available for applications that require 21 CFR 11 compliance.
Features
- Ultra low temperature
- 1 year battery life (typical)
- External thermistor
- Visual LED's
- 21 CFR 11 secure validated software (optional)
- Cost effective
Applications
- Lyophilization
- Low temperature freezer monitoring / validation
- Plasma and Red cell
- Cryo / low temperature shipping
Specifications
- Manufacturer
Madgetech
- Parameter(s)
Temperature
- Usage Type
Multi use
- Connectivity
USB via IFC300 interface
- Sensor internal or external
External
- Channels
Single
- Sensor type
External thermistor
- Memory
32,767 readings
- Sample rate
1 reading every 5 seconds up to 1 reading every 30 minutes
- Range
-60 °C ~ +75 °C
- Accuracy
0.5°C
- Resolution
0.1°C
- Material
ABS Plastic
- Power
Battery
- Battery Life
365 days typical
- Dimensions
83 mm x 54 mm x 11 mm
- Environment
IP50
- Operating Conditions
-60 °C to +75 °C
- Alarm
visual LED and in software alarms
- Features
External thermistor, extreme temperature, LED, Multi use
Downloads
Product Brochure
Lyotemp Datasheet WPLSPDF • 1 MB
Instruction Manual
Lyotemp User Guide WPLSPDF • 661 KB LyoTemp Dimensional Drawing WPLS
PDF • 205 KB
Software - Windows PC only
MadgeTech SoftwareZIP • 25MB
