MicroDiscSurfaceprobeattachment
Overview
Surface probe attachment to HiTemp140-FP and LyoTemp thermistor temperature probes.
Information
Product Description

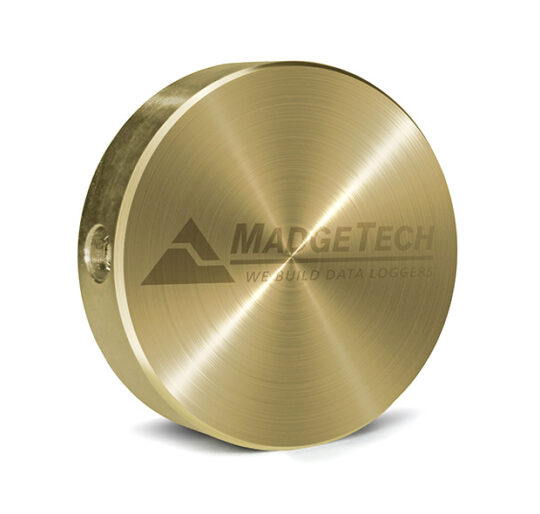

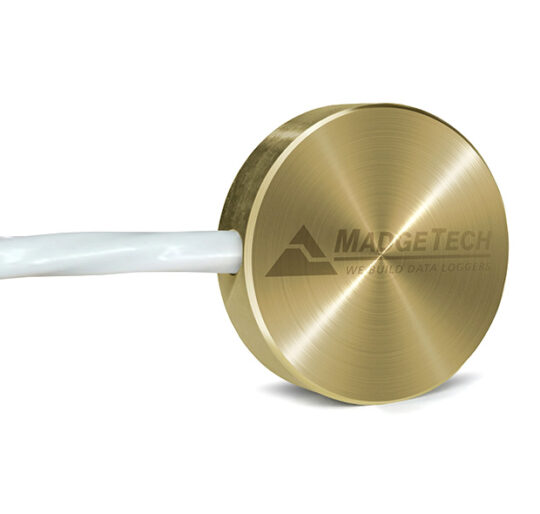

The MicroDisc is a surface temperature probe attachment designed to be used with the MadgeTech HiTemp140-FP or LyoTemp data loggers. Made of C46400 brass, this rugged disc probe attachment is formed to connect directly to the tip of the thermistor probe.
The MicroDisc is specifically designed to give the user the ability to perform processes that require surface temperature monitoring.
With its compact size, puck like shape and wide operating range, the MicroDisc allows for close contact with flat surfaces ensuring accurate temperature monitoring of shelving during the Lyophilization process.
The MicroDisc is fitted with a silicone rubber insert that secures the probe connection throughout the data logging process.
Specifications
- Manufacturer
MadgeTech
- Compatibility
HiTemp140 FP
LyoTemp- Material
Brass (C46400)
Silicone Rubber Insert- Dimensions
6.5m x 25mm x 25mm
- Operating Conditions
-60°C ~ +177°C
Downloads
Product Brochure
MicroDisc Data Sheet WPLSPDF • 235 KB MicroDisc Dimensional Drawing WPLS
PDF • 251 KB
Product Manual
MicroDisc manual WPLSPDF • 433 KB
