PR1000PressureandTemperatureDataLogger
By MadgeTech Data LoggersOverview
Submersible, Rugged, standalone, battery powered, temperature pressure data logger. 1/4 inch NPT fitting.
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Pressure Ranges
- Data Interface - Required to download data
IP68 Submersible
Available in 0 to 30 PSIA and 0 to 5000 PSIA options
Rapid
Capable of sampling and recording at 128hZ.
Supported
With free user friendly software and optional 21 CFR part 11 compliant and GxP documentation upgrade.
Information
Product Description
Requires IFC400 Interface and Software (see the downloads section).

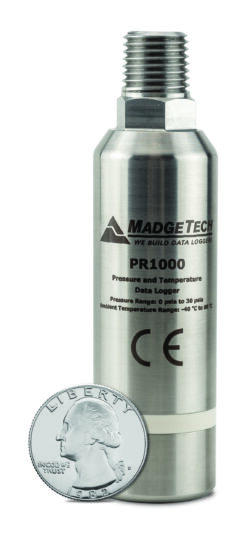

The PR1000 is a pressure and temperature data logger used to accurately monitor and record at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.
The PR1000 can also monitor and record transient pressure through software configuration of user defined trigger thresholds and time periods. The logger can be configured to record measurements at rates as fast as 128Hz or as slow as once every
24 hours. The non-volatile memory has a capacity of over 1 million readings.
The PR1000 uses a stainless steel pressure strain gauge to accurately measure the pressure.
The 1/4 inch NPT pressure port featured on the device allows for compatibility with a variety of fittings and adapters. The internal temperature sensor provides ambient temperature measurements. The PR1000 is also fully submersible. There are many different pressure ranges available to fit most any application.
Available in a number of pressure ranges
Features
- Long battery life
- Large memory
- Multiple pressure ranges
- Rugged design
Applications
- Oil & gas industries
- Natural gas production
- Pneumatics
- Process control systems
- Gas compressors
- Lubrication systems
- Chemical processing
- Pulp and paper processing
- Medical instrumentation
- Environmental studies
- Waste water treatment
- HVAC
Specifications
- Manufacturer
Madgetech
- Parameter(s)
Pressure
- Usage Type
Multi use
- Connectivity
USB via IFC400 interface
- Sensor internal or external
Internal sensors
- Channels
1 channel temperature
1 channel pressure- Sensor type
Internal Semiconductor
- Memory
1,396,736
- Sample rate
1 reading every second up to 1 reading every 24 hours
Up to 128 Hz in transient mode- Range
0 ~ 30, 100, 300, and 500 PSIA/G
0 ~ 1000 and 5000 PSIA- Accuracy
2 %FSR, 0.25 % at 25 °C typical
- Resolution
See Specification sheet
- Material
316 stainless steel
- Enviroment
IP68
- Battery Life
1 year typical (1 minute reading rate at 25 °C)
10 days at 128 Hz in transient mode- Dimensions
3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.)
- Operating Conditions
-40 °C to +80 °C (-40 °F to +176 °F)
0 %RH to 100 %RH- Data Format
Date and time stamped °C, °F, K, °R ; mbar, PSI, inHg, mmHg, atm, Torr, Pa, kPa, MPa, m
- Approvals
CE
- Features
Submersible, Rugged, standalone, battery powered, temperature pressure data logger, 1/4 inch NPT.
