PR11K-TypeSemiFlexibleThermocoupleDataLogger
Overview

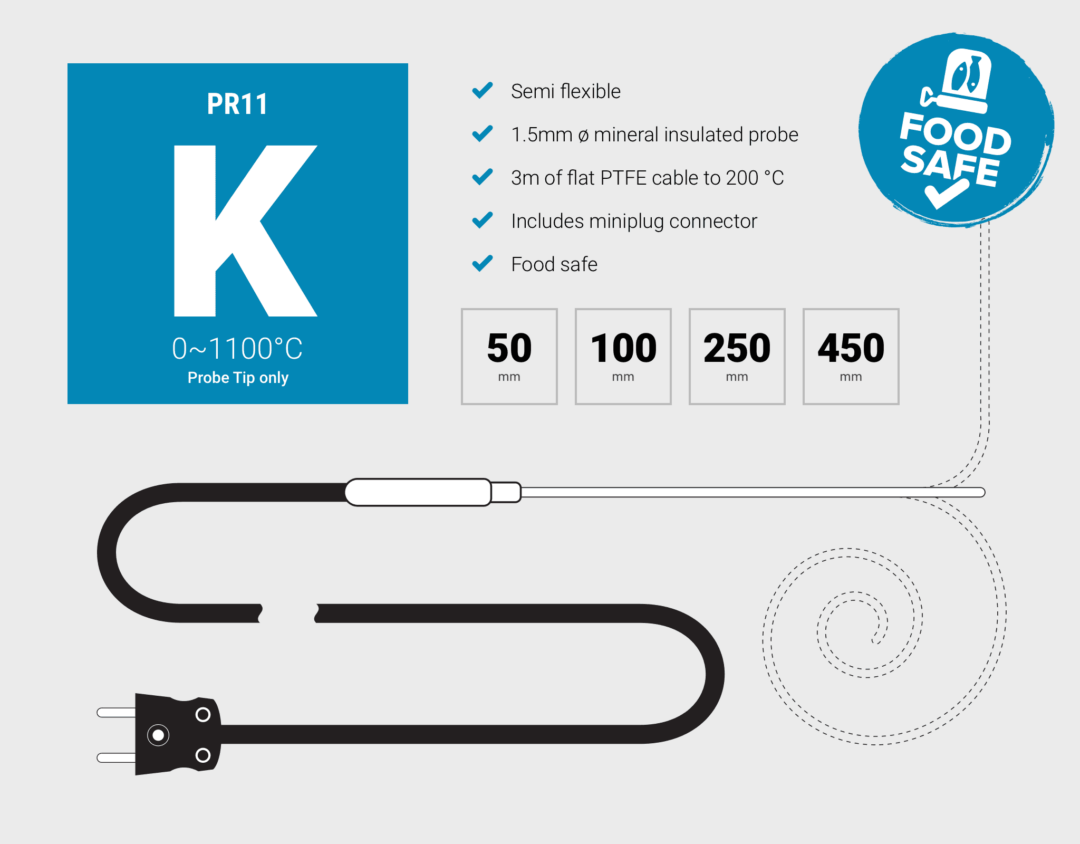

Semi flexible K-Type thermocouple high quality temperature sensor, recommended for use between 0 ~ 200 °C
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Length
Probe
K-Type Semi flexible 1.5mm dia mineral insulated probe available in lengths from 50 to 450mm
Cable
3m of Flat pair PTFE cable
Compatible
With thermocouple data loggers
Information
Product Description
K -Type sensor/pot/cable rated to +200°C, available in four different lengths all fitted with 3M of PTFE cable and a thermocouple mini-plug.
For higher temperatures, please use the ceramic version.
Semi flexible thermocouples can be bent to shape and inserted into water, liquid Nitrogen or into high temperature environments such as a furnace or oven, these durable probes are suitable for most applications.
- 50mm for insertion into food product or small spaces
- 100mm for standard use
- 250mm a universal general purpose solution
- 450mm for insertion into larger volumes of liquids or ovens
Specifications
- Manufacturer
LS
- Sensor type
K-Type Thermocouple
- Measuring range
0~1100°C
- Operating Conditions
[Probe tip] -200 ~ +1100°C
[Pot] <+200 °C [Cable] <+260 °C- Accuracy
0.5°C
- Material
Stainless Steel Mineral Insulated
PTFE Cable- Dimensions
1.5mm diameter [sensing]
6mm pot [Sensing to cable]
3M PTFE flat pair cable[PR11 - 50] 50mm shaft
[PR11 - 250] 250mm shaft
[PR11 - 450] 450mm shaft- Environment
Air and liquid
- Features
Can be bent into a specific shape
