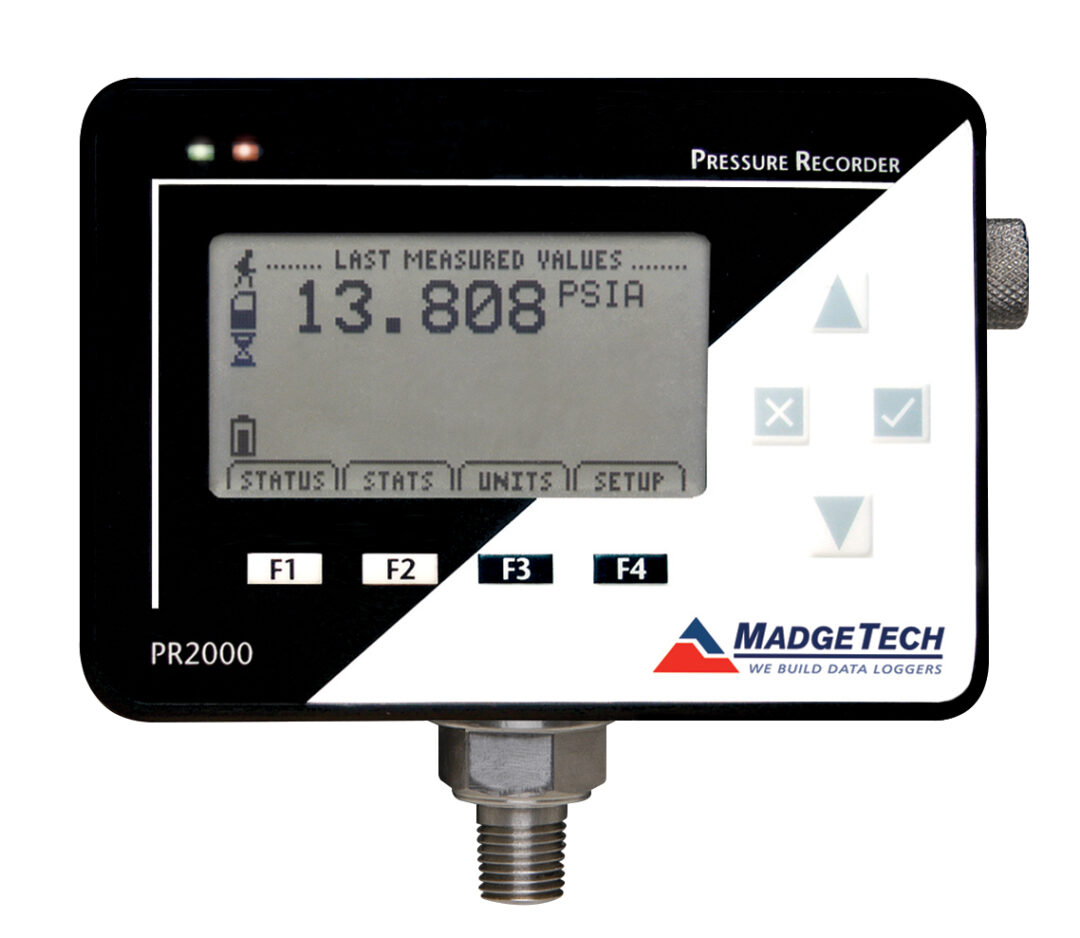

PR2000 pressure data logger
PR2000 Pressure data logger

PR2000 Pressure Data Logger

£640.00

Rugged, standalone, battery powered, LCD display pressure data logger

Product Description

Industrial grade pressure data logger for measuring and recording pressure levels against time in pipes and processes.

Featuring a LCD display and largest internal memory capacity around the PR2000 is the choice for a wide range of industrial and field applications.  The Solid State memory will retain data even in the event of power loss.  Free powerful Madgetech software allows for simple or in depth data analysis.

Features

  • Long battery life with optional main power adaptor
  • Large memory
  • Multiple pressure ranges
  • Rugged design
  • Clear LCD for reviewing live statistics

Applications

  • Geothermal
  • Industrial
  • Medical / Pharmaceutical
  • HVAC
  • Field and Environmental studies



Requires IFC200 Interface and Software

Manufacturer

Madgetech

Parameter(s)

pressure

Usage Type

Multi use

Connectivity

USB via IFC200 interface

Sensor internal or external

internal sensors

Channels

1 channel

Sensor type

Semiconductor (strain gauge)

Memory

262,143 total readings

Sample rate

1 reading every 2 seconds up to 1 reading every 24 hours

Range

0 ~ 30, 100, 300, and 500 PSIA/G
0 ~ 1000 and 5000 PSIA

Accuracy

2 %FSR, 0.25 % at +25 °C Typical

Resolution

0 ~ 30: 0.002, 0 ~ 100:0.005,
0 ~ 300: 0.02, 0 ~ 500: 0.05, 0 ~ 1000: 0.05
0 ~ 5000: 0.2

Material

Black annodized aluminum

Power

6 alkaline AA batteries, user replaceable
optional mains adaptor available

Battery Life

365 days typical at 1 minute recording with display off.

Dimensions

130 mm x 122 mm x 45 mm

Operating Conditions

-5 ºC ~ +50 ºC
0 %RH ~ 95 %RH (non-condensing)

Features

Rugged, standalone, battery powered, LCD display pressure data logger

Product Brochure
pr2000 Data Sheet WPLS PDF 1 MB
