Process 101A

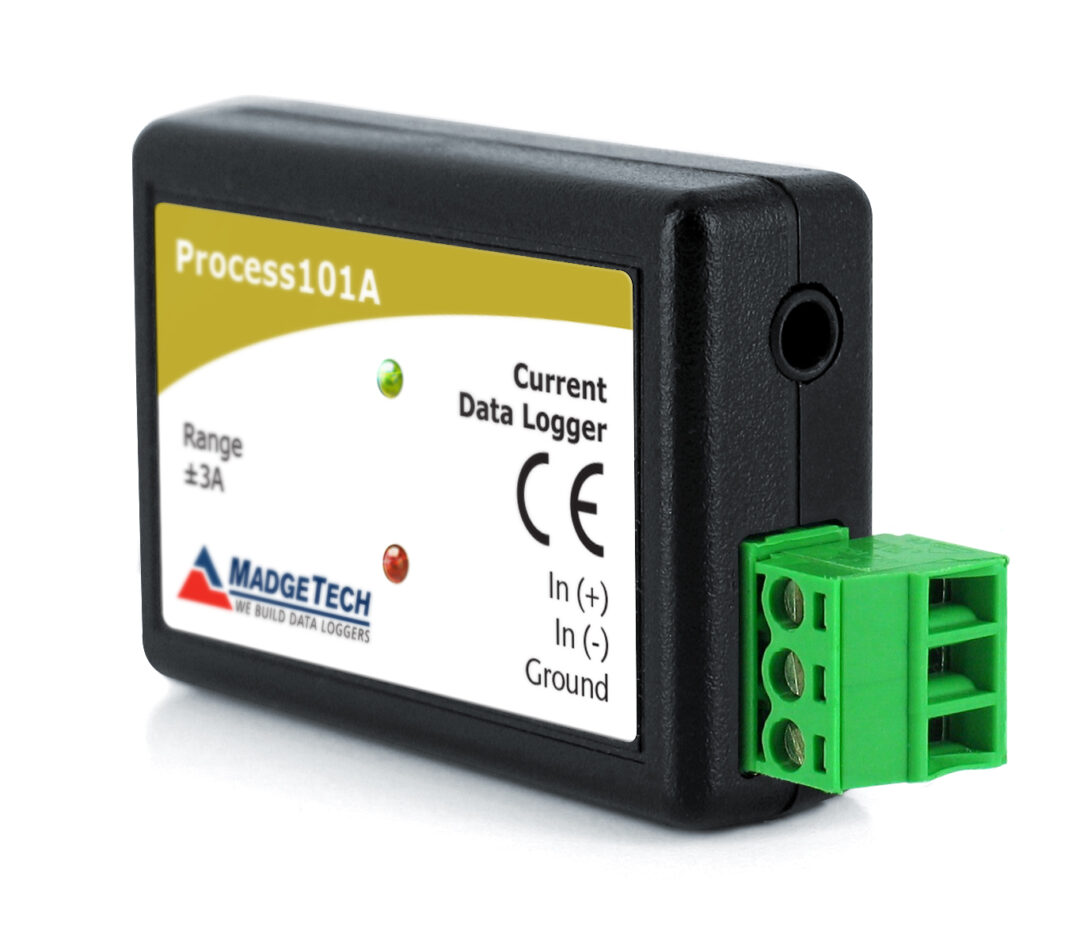

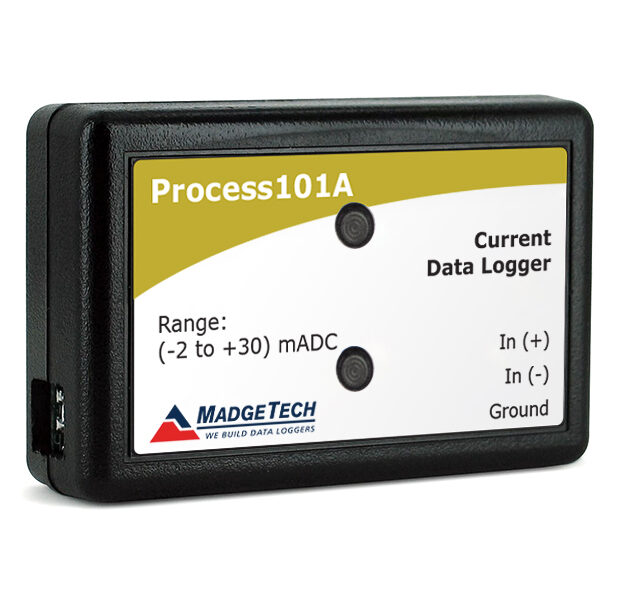

Process 101A Data Logger

By MadgeTech Data Loggers

£174.92

DC Current data logger available in three different measurement ranges, 20 mA, ±160 mA and ±3 A.



Product Description

The MadgeTech Process101A Data Logger measures and records low level DC current and is used for general current measuring applications including battery or photo voltaic studies.

Available in three different measurement ranges, 20 mA, ±160 mA and ±3 A the Process101A.

Features of the Process101A include up to 10 year battery life,  a battery life indicator, optional password protection, programmable high-low alarms, 1,000,000 readings and 4Hz recording rate.

Screw terminal block is designed to easily connect and disconnect to the logger body to enable quick and simple removal for downloading data.

Requires IFC200 interface and free software





Manufacturer

Madgetech

Parameter(s)

Current

Usage Type

Multi use

Connectivity

USB via IFC200

Channels

Single

Memory

2,095,104 readings; software configurable memory wrap
698,368 readings in multiple start/stop mode

Sample rate

4 Hz to 1 reading every 24 hours

Accuracy

20 mA, 160 mA: ±0.05 %FSR
3 A: ±0.15 %FSR

Resolution

20 mA: 0.5 μA
±160 mA: 5 μA
±3 A: 100 μA

Material

Polycarbonate

Power

Battery

Battery Life

10 years typical at a 15 minute reading rate

Dimensions

35 mm x 54 mm x 15 mm

Environment

IP54 for dry environments used with Waterbox101A for IP65 applications

Operating Conditions

-40 °C ~ +80 °C and 0 %RH to 95 %RH non-condensing

Alarm

LED and in report

Programmable high and low limits; alarm is activated when current reaches or exceeds set limits

Features

User replaceable battery, Push button start, Optional password protection, LED, Battery life indicator, up to 10 year battery life

Product Brochure
Process101A Datasheet WPLSPDF1 MB
Instruction Manual
process101a Information card WPLSPDF284 KB
Process101A User Guide WPLSPDF420 KB
Software
MadgeTech SoftwareZIP25MB
