RFPRHTemp2000A USB and Wireless Pressure Humidity Temperature Data Logger

£390.56

Pressure, humidity and temperature USB or wireless radio data logger.

Sub-total
£390.56
QuantityPriceYou Save
5+£367.136%
11+£359.328%
30+£335.8814%
50+£331.9815%
100+£320.2618%
1+£390.560%

Product Description

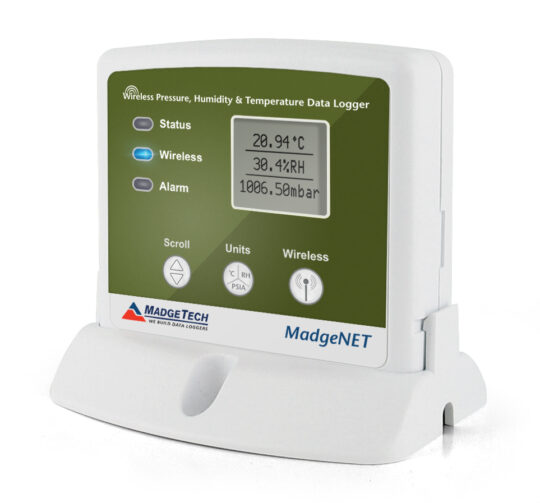

The RFPRHTemp2000A is a compact data logger supplied with integral pressure, humidity and temperature sensors.

it is either battery or mains powered so it can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD screen, trigger local audible/visual alarms and connect to a USB computer for periodic analysis. If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeaters.

Ideally suited to short term handheld, desk mounted applications or can be wall mounted for longer term or permanent monitoring of barometric pressure, temperature and humidity levels in regulated environments.

Hardware Features

  • USB and Wireless connectivity
  • Temperature, Humidity, Pressure data logger
  • Email and audible alarms
  • LCD display
  • Battery or optional mains power supply.
  • Cloud services compatibility

Applications

  • Pharmaceutical, Medical, Laboratory and Clean Rooms.

MT4 standard software Features

  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with:  Integral sensors, battery, mounting/stand bracket , MT4 software and USB cable.

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adaptor
Manufacturer

Madgetech

Parameter(s)

Pressure, Temperature, Humidity

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

Internal

Channels

3 channel

Sensor type

Resistance Temperature Detector (RTD)

Memory

10,752 readings

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

Internal channel : -20 ~ 60°C
0 %RH to 95 %RH
250 mbar to 1300 mbar

Accuracy

±0.5 °C at 0 °C to +55 °C
±3.0 %RH,
+10 mbar (0 °C to +55 °C)

Resolution

0.01°C
0.1 %RH
0.02 mbar

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

Approximate 5 years typical at a 15 minute reading rate

Dimensions

76.2 mm x 88.9 mm x 24.1 mm

Environment

-20 °C to ~ 60 °C, 0 %RH to 95 %RH non-condensing

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless , email & audible alarms, 21 CFR 11, LCD display, battery or mains powered

Product Brochure
RFprhtemp2000A Datasheet WPLSPDF1 MB
MadgeTech Warehouse Brochure WPLSPDF3MB
Instruction Manual
RFprhtemp2000A User Guide WPLSPDF533 KB
Software
MadgeTech SoftwareZIP25MB
