TR72A

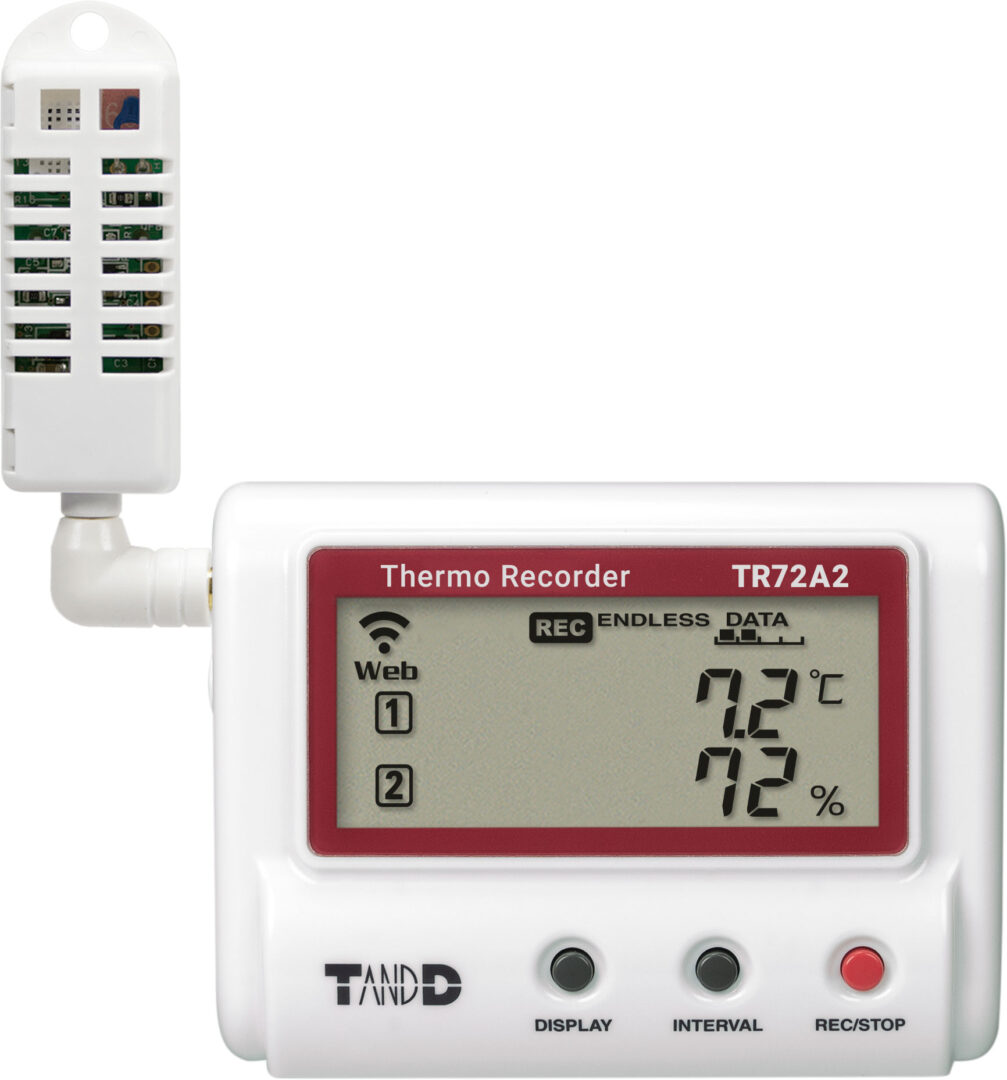

TR72A Wi-Fi, Bluetooth and USB 2 Channel Temperature Data Logger

From: £190.00

Wi-Fi, Bluetooth and USB, Web accessible humidity and temperature  network data logger.

Product Description

Free – Online Cloud Interface and data storage
Free – Mobile Application (APP) for iOS and Android includes PDF reporting on mobile

Utilise your existing Wi-Fi network to create a wireless temperature data logging and alarm monitoring system with the TR72A,  humidity temperature data logger.
Interface with your TR72A in the field using the built-in Bluetooth functionality and an iOS or Android compatible mobile device.

This battery or mains powered data logger displays, collects and stores humidity and temperature data measured by a plud in sensor supplied in the box. Historical data can be extracted to a PC using the integral USB connector or linked in real-time data via the Wi-Fi module to a mobile device running iOS, Android or that hosts an internet connection and browser.

Boasts a large LCD display that rotates between temperature and humidity readings, along with the recording, network and battery status.

Connect your data logger to the supplied probe and deploy in the desired location for measurements.
Add multiple data loggers until all environments are covered then monitor your data and alarm conditions from a central location via the TandD cloud utility called ‘Webstorage-service’.

Unlike alternatives offered by LS and our competitors, TandD deliver free application and cloud storage utilities with no contracts or restrictions. Traditionally costs associated with these centralised cloud services is invoiced monthly or annually and should always be considered when calculating the TandD cost of ownership versus any other alternative networked solution.

Connectivity

  • Direct via USB
  • Bluetooth
  • Online using free cloud storage utility

Alternative powering options

  • 5v 200mA USB power supply

Compatibility and expansion

In addition to a limitless number of TR72A data loggers that can be located at any geographical location, once assigned to ‘Webstorage-service’ you can add any number of the following data logging solutions;

  • TR71A, 2 channel temperature
  • RTR500 system including the RTR500MBS – 3G GSM base station for collecting data from RTR500 data loggers at locations where there is no I.T infrastructure

Compatibility mobile applications

Google Play BadgeApp Store Badge



Manufacturer

TandD

Parameter(s)

Humidity
Temperature

Usage Type

Multiple use

Connectivity

USB
Wireless LAN
Bluetooth

Sensor internal or external

External

Channels

2

Sensor type

Thermistor
Polymer Resistance

Memory

30'000 readings

Sample rate

1 reading a second ~ 1 reading an hour

Range

0°C ~ 55°C
10% ~ 95%

Accuracy

+/- 0.5°C
+/- 5% rH

Resolution

0.1°C
1% rH

Material

ABS plastic

Power

Internal battery
USB power supply

Battery Life

10 days ~ 15 months
Depends on screen mode and upload frequency

Dimensions

58mm x 78mm x 26mm

Operating Conditions

-10°C ~ +60°C
<90% rH

Alarm

Email

Features

Cloud data storage
Globally accessible data
Networked data
Automatic download
Free software
Email alerts
LCD display

Product Brochure
TR7a-Brochure WPLSPDF1 MB
Software
T&D Graph Analytical SoftwareEXE
TR7A Setup Software
T&D DataserverEXE
Product Manual
man-users-tr7a-engPDF3 MB
