TRIL-16UDataLogger

Name: TRIL-16U Data Logger
Brand: LogTag Data Loggers
SKU: TRIL-16U
Price: 72.98 GBP
Availability: InStock

By LogTag Data Loggers

From: £72.98

Overview

The LogTag TRIL-16U is an ultra low temperature data logger which is user configurable with an integral probe for freezer and dry ice temperature monitoring up to 16000 readings and a clear LED alarm.

Customise this datalogger

Enhance your monitoring with these options

Calibration Certificate *
Pre configuration
Protective Enclosure
Bracket

* Calibration takes between 3 - 7 business days Add and customise

Rated for -80 °C

Up to 16000 temperature readings over -80 °C to +40 °C measurement range

Multiple Use

Up to 1000 hours use in -80 °C environment, delivering cost effective operation without a probe being needed.

Software

Take advantage of LogTag's freely available companion software LogTag© Analyser

Information

Product Description

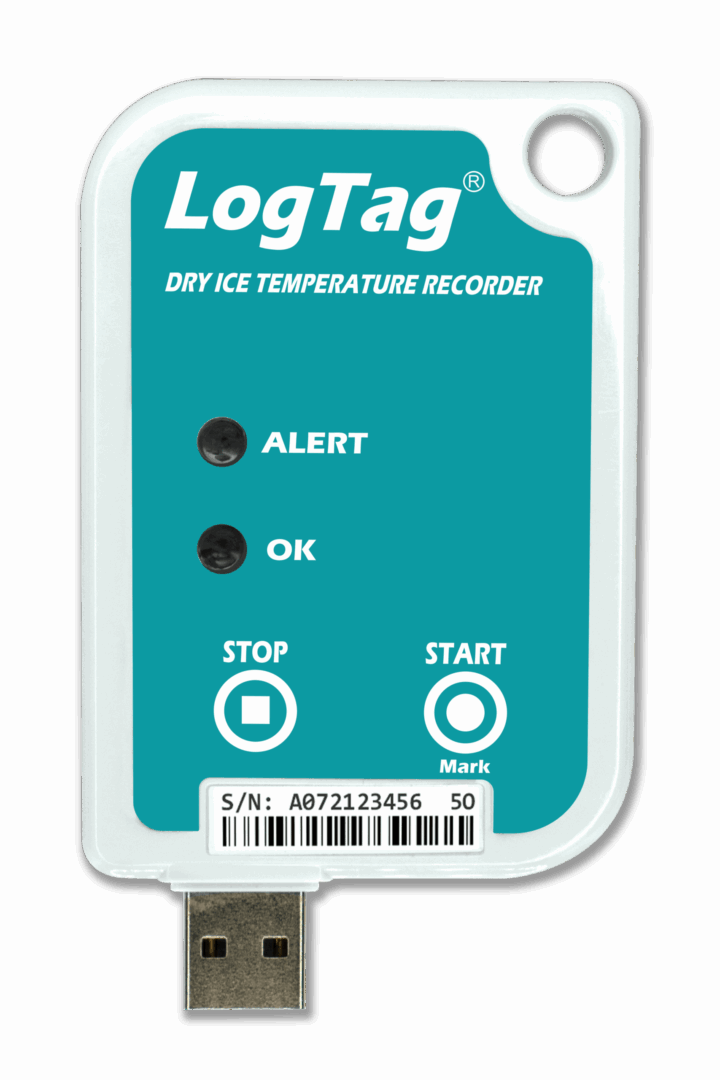

The TRIL-16U ultra low temperature data logger comes with an integral temperature probe, designed for use in ultra low temperature freezers and in the repeated distribution of time temperature sensitive products in dry ice at -80°C.

Simply configure and reconfigure the TRIL-16U temperature data logger using the USB interface cradle and free issued LogTag analyser data logger software (see downloads section) and deploy the data logger directly into the cold chain shipping container or assigned location(s) within the ultra low temperature freezer.

When temperature monitoring is finished, a clear indication will be presented via the green and red flashing LED and a full audit can be extracted, verified and automatically distributed to assigned personnel. Rapid configuration, retrieval of collected data and analysis is performed using the free issued LogTag analyser software in conjunction with a USB interface cradle.

Specifications

Manufacturer: LogTag
Parameter(s): Temperature
Usage Type: Multiple
Connectivity: USB
Sensor internal or external: Internal
Channels: 1
Sensor type: Thermistor
Memory: 16000
Sample rate: 1 minute ~ several hours
Range: -80°C ~ +40°C
Accuracy: Better than ±1 °C (±1.8 °F) for -30 °C to +20 °C (-22 °F to +68 °F).
Better than ±1.2 °C (±2.1 °F) for -45 °C to -30 °C (-49 °F to -22 °F)
and +20 °C to +40 °C (+68 °F to +104 °F).
Better than ±1.7 °C (±3.1 °F) for -80 °C to -45 °C (-112 °F to -49 °F).
Actual performance is typically much better than the rated values.
Accuracy figures can be improved by recalibration.
Resolution: Less than 0.1 °C (0.2 °F) for -80 °C to 0 °C (-112 °F to +32 °F).
Less than 0.2 °C (0.4 °F) for 0 °C to +20 °C (+32 °F to +68 °F).
Less than 0.5 °C (0.9 °F) for +20 °C to +40 °C (+68 °F to +104 °F).
LogTag® Analyzer currently displays to one decimal place of °C or
°F. The native resolution is what is stored in the LogTag®.
Material: Polycarbonate
Power: 3.6V low temperature chemistry Lithium (Fixed) battery
Battery Life: Up to 1000hrs dependent on sample frequency.
Dimensions: 86mm x 54.5mm x 8.6mm
Environment: IP65 (roughly equivalent to NEMA 4)
Operating Conditions: -80°C ~ +40°C
Suitable for use in dry ice shipment and ultra low temperature freezers
Alarm: Flashing LED and in report
Features: LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance
Computer Requirements: Windows PC
Compliance: RTCA/DO‐160G section 21 as category H
