uTrix16

uTrix-16 Data Logger

By LogTag Data Loggers

From: £19.94

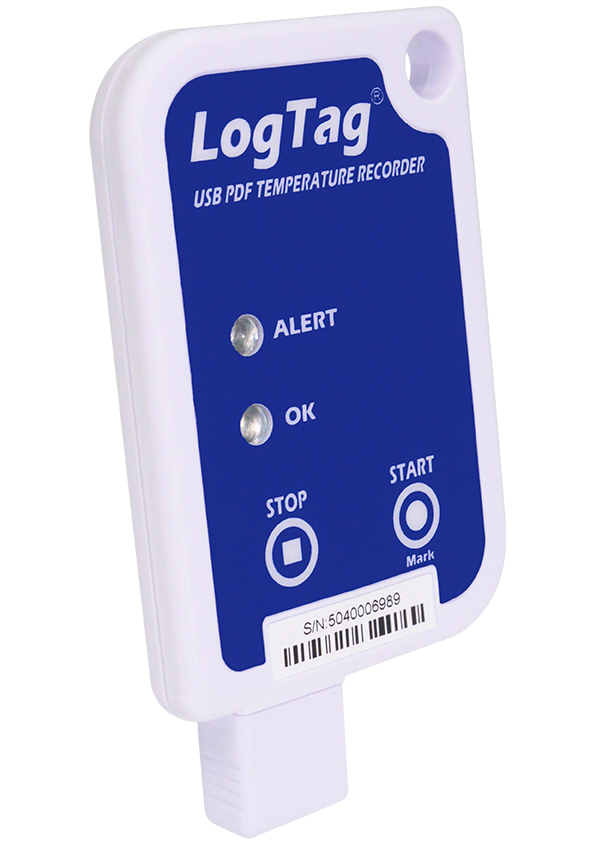

The LogTag uTrix-16 is a user configurable, multiple use temperature data logger with direct USB connection and PDF reporting.

QuantityPriceYou Save
5+£19.442.5%
10+£18.945%
50+£18.547%
1+£19.940%

Product Description

The uTrix-16 LogTag data logger is a user configurable, multiple use temperature data logger with direct USB connectivity and automated PDF reports.

It is Ideally suited to both static and shipping applications where there is a level of control enabling users to retrieve and reuse their temperature data loggers. Coupled with a market leading price tag the uTrix-16 data logger offers MHRA wholesalers and quality departments in hospitals affordable solutions to record temperatures in a wide range of refrigerated appliances and incubators.

Download the free LogTag data logger Analyzer software (see the downloads section)to configure the data logger. Please note it is not needed to create finished PDF reports.  Optional analysis can be performed by plotting saved data in graphical, tabular, statistical formats and cross referencing multiple plots on one time line.

It does not require a bespoke USB interface and is supplied with a USB cap, instructions, 2nd label for shipping labels and LogTag Analyzer data logger software.

Updated in 2018 with 6 level alarm feature, providing users with greater resolution on alarm management on cascading time vs temperature thresholds.

Manufacturer

LogTag

Parameter(s)

Temperature

Usage Type

Multiple use

Connectivity

Direct USB

Sensor internal or external

Internal

Channels

1

Sensor type

Digital

Memory

16129

Sample rate

30 seconds ~ 18 hours

Range

-30°C ~ +70°C

Accuracy

< +/- 0.5°C between -20 and +40°C

Resolution

0.1°C

Material

Polycarbonate

Power

Battery

Battery Life

17520 hours
15 minute recording interval
Monthly download

Dimensions

93mm x 54.5mm x 8.6mm

Environment

IEC 60529, IP64 with USB cap fitted

Operating Conditions

-25°C ~ +60°C

Alarm

LED and in post analysis report
6 user defined alarm levels

Features

Direct USB connection
PDF reporting
Detailed analysis and automated data distribution
User configurable
21 CFR Part 11 and Annex 11 compliant

Computer Requirements

Windows PC

Compliance

RTCA/DO‐160G section 21 as category H

Product Brochure
LogTag UTRIX-16 Brochure WPLSPDF5 MB
Instruction Manual
UTRIX-16 User Guide WPLSPDF2 MB
USB Quick Start Guide WPLSPDF3 MB
Software
LogTag LTAnalyzer SoftwareEXE85MB
LogTag Xpress Quick StartEXE20MB

Product Description

The uTrix-16 LogTag data logger is a user configurable, multiple use temperature data logger with direct USB connectivity and automated PDF reports.

It is Ideally suited to both static and shipping applications where there is a level of control enabling users to retrieve and reuse their temperature data loggers. Coupled with a market leading price tag the uTrix-16 data logger offers MHRA wholesalers and quality departments in hospitals affordable solutions to record temperatures in a wide range of refrigerated appliances and incubators.

Download the free LogTag data logger Analyzer software (see the downloads section)to configure the data logger. Please note it is not needed to create finished PDF reports.  Optional analysis can be performed by plotting saved data in graphical, tabular, statistical formats and cross referencing multiple plots on one time line.

It does not require a bespoke USB interface and is supplied with a USB cap, instructions, 2nd label for shipping labels and LogTag Analyzer data logger software.

Updated in 2018 with 6 level alarm feature, providing users with greater resolution on alarm management on cascading time vs temperature thresholds.

Manufacturer

LogTag

Parameter(s)

Temperature

Usage Type

Multiple use

Connectivity

Direct USB

Sensor internal or external

Internal

Channels

1

Sensor type

Digital

Memory

16129

Sample rate

30 seconds ~ 18 hours

Range

-30°C ~ +70°C

Accuracy

< +/- 0.5°C between -20 and +40°C

Resolution

0.1°C

Material

Polycarbonate

Power

Battery

Battery Life

17520 hours
15 minute recording interval
Monthly download

Dimensions

93mm x 54.5mm x 8.6mm

Environment

IEC 60529, IP64 with USB cap fitted

Operating Conditions

-25°C ~ +60°C

Alarm

LED and in post analysis report
6 user defined alarm levels

Features

Direct USB connection
PDF reporting
Detailed analysis and automated data distribution
User configurable
21 CFR Part 11 and Annex 11 compliant

Computer Requirements

Windows PC

Compliance

RTCA/DO‐160G section 21 as category H

Product Brochure
LogTag UTRIX-16 Brochure WPLSPDF5 MB
Instruction Manual
UTRIX-16 User Guide WPLSPDF2 MB
USB Quick Start Guide WPLSPDF3 MB
Software
LogTag LTAnalyzer SoftwareEXE85MB
LogTag Xpress Quick StartEXE20MB
