HiTemp140

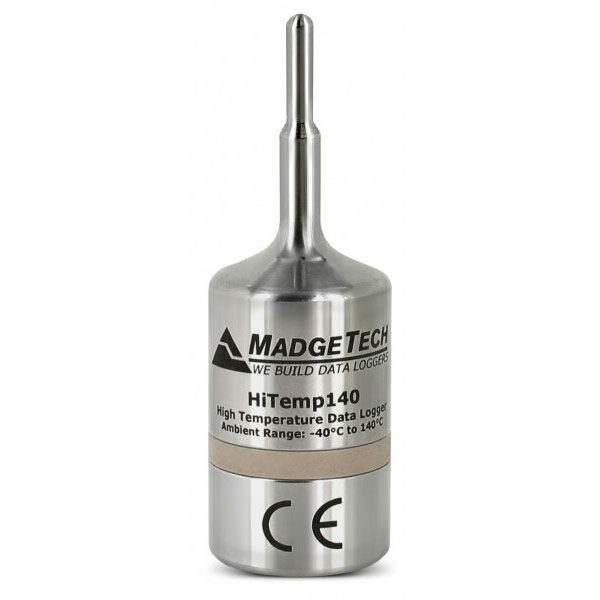

HiTemp140 Rigid Probe Extreme Temperature Data Logger

By MadgeTech Data Loggers

From: £450.00

Rigid probe, temperature data logger, rated to 140°C. Available with 6 probe variations. Includes ISO17025 calibration certificate at standard points 30 and 140°C

QuantityPriceYou Save
5+£423.006%
11+£414.008%
30+£387.0014%
50+£382.5015%
100+£369.0018%
1+£4500%

Product Description

Please note: Requires: IFC400 or IFC406 interface along with free issued MT4 software (see downloads section).

HiTemp140 available with 6 application specific probe sizes.

Includes ISO17025 calibration certificate at standard points 30 and 140°C

HiTemp140 MadgeTech validation data loggers, deliver precision (+/-0.1°C) temperature recording over a wide range of temperatures. Ideally suited to autoclave validation, canning and in package validation exercises.

Configure a single HiTemp140-1 using the IFC400 interface or multiple data loggers with the IFC406 multiplexer. Stainless steel, submersible IP68 construction enables the operation in any environment between -40°C and +140°C (with no time limit) or -200°C to +250°C for a limited time, using the TSK shield.

Once the validation exercise has been concluded, wait for the data loggers to cool down or warm up and insert them back into the interface. Using MT4 software and ‘workflows’ to automatically download and save data before generating customised reports and performing analytical functions, including:

  • Graphical temperature vs. time with threshold analysis
  • Table of temperature vs. time data
  • Statistical evaluation
    • Maximum
    • Minimum
    • Average
    • Change over time
    • F0
    • PU

Compatible with the HiTemp140 range of products and accessories which encompass the demand for reliability and high performance at reasonable prices.

Calibration Certificate

  • Standard calibration: 30 and 140°C
  • Custom calibration: 3 user defined points across measuring or operating range
  • ISO17025 calibration available on request.
Manufacturer

MadgeTech

Parameter(s)

Temperature

Usage Type

Multiple

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

1

Sensor type and dimensions - HiTemp140-1

1.1" RTD probe x 0.125" diameter

Response Time Slow Moving Air 63% = 270 seconds
Response Time Slow Moving Air 90% = 1400 seconds
Response Time Water 63% = 9 seconds
Response Time Water 90% = 13 seconds

Sensor type and dimensions - HiTemp140-2

2" sharp RTD probe x 0.188" diameter

Response Time Slow Moving Air 63% = 120 seconds
Response Time Slow Moving Air 90% = 1000 seconds
Response Time Water 63% = 8 seconds
Response Time Water 90% = 11 seconds

Sensor type and dimensions - HiTemp140-2TD

2" sharp RTD probe x 0.188" diameter into 0.125" sensor tip

Response Time Slow Moving Air 63% = 120 seconds
Response Time Slow Moving Air 90% = 1000 seconds
Response Time Water 63% = 8 seconds
Response Time Water 90% = 11 seconds

Sensor type and dimensions - HiTemp140-5

5.25" sharp RTD probe x 0.188" diameter

Response Time Slow Moving Air 63% = 97 seconds
Response Time Slow Moving Air 90% = 315 seconds
Response Time Water 63% = 8 seconds
Response Time Water 90% = 20 seconds

Sensor type and dimensions - HiTemp140-5TD

5.25" sharp RTD probe x 0.188" diameter into 0.125" sensor tip

Response Time Slow Moving Air 63% = 97 seconds
Response Time Slow Moving Air 90% = 315 seconds
Response Time Water 63% = 8 seconds
Response Time Water 90% = 20 seconds

Sensor type and dimensions - HiTemp140-7

7" sharp RTD probe x 0.188" diameter

Response Time Slow Moving Air 63% = 100 seconds
Response Time Slow Moving Air 90% = 250 seconds
Response Time Water 63% = 14 seconds
Response Time Water 90% = 32 seconds

Memory

32256 readings

Sample rate

1 reading a second ~ 1 reading a day

Range

-200°C ~ + 260°C

Accuracy

±0.1 ºC from 20 ºC ~+140 ºC
±0.3 °C from -20 °C to +19.99 °C
±0.4 °C from -40 °C to –20.01 °C

Resolution

0.01°C

Material

316 Stainless Steel

Power

User replaceable battery

Battery Life

1 year typical (1 minute reading rate at 25 °C/77 °F)

Dimensions

Data logger 1.6" x 0.97"

Environment

IP68

Operating Conditions

-40 °C ~ +140 C
-200°C ~ +250°C (With Thermal Shield)
6Bar (100PSI)

Features

Suitable for use in autoclaves
Compatible with thermal shield for use in extreme temperatures
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer

Product Brochure
HiTemp140 Datasheet WPLSPDF1 MB
HiTemp140 STANDARD Calibration CertificatePDF621 KB
Instruction Manual
Hitemp140 probechart WPLSPDF245 KB
HiTemp140 High Temperature Data Logger DimensionsPDF391 KB
Hitemp140-response-time WPLSPDF813 KB
HiTemp140 User Guide WPLSPDF5 MB
Software
MadgeTech SoftwareZIP25MB
