Autoclave flexible probe data logger
HiTemp140 Flexible probe data logger
product-ht140-fp
Autoclave flexible probe data logger
HiTemp140 Flexible probe data logger

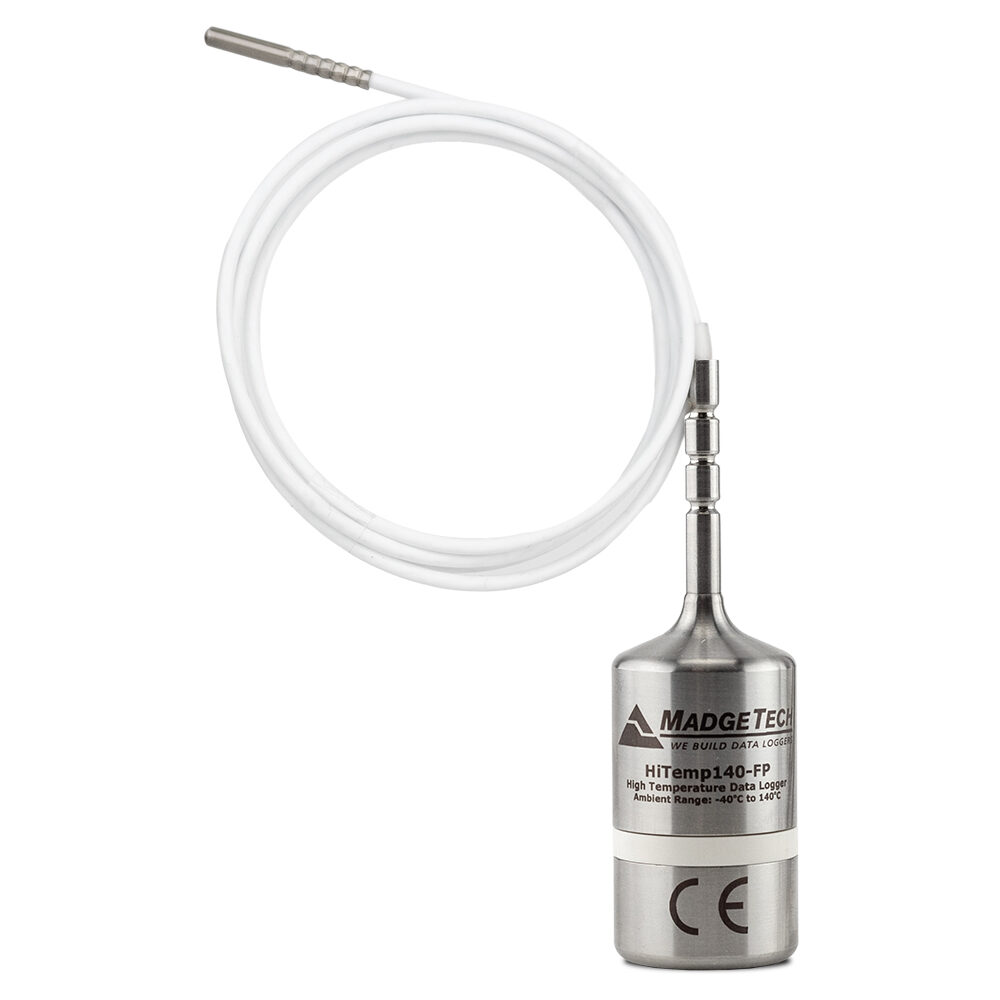

HiTemp140FP Flexible Probe

From: £385.00

Flexible fast response probe, 4Hz recording rate, high temperature data logger. Available in 4 probe lengths.

Quantity Price You Save
1+ £385 0%
5+ £361.90 6%
11+ £354.20 8%
30+ £331.10 14%
50+ £327.25 15%
100+ £315.70 18%

Product Description

HiTemp140-FP is a precision (+/-0.1°C) data logger for recording temperatures over a wide range of temperatures. Ideally suited to applications that require a PFA flexible temperature sensor that is easy to place into a desired location or product within Lyophilization and autoclave processes.

Configure a single HiTemp140-FP using the IFC400 interface or multiple data loggers with the IFC406 multiplexer. Stainless steel, submersible IP68 construction enables the operation in environments between -40°C and +140°C (with no time limit) or -200°C to +260°C for a limited time, using the TSK shield. Notice: Steam Sterilisation Applications:  The pervasive nature of pressurised steam creates a very difficult environment for electronics. Please contact us to discuss preventative maintenance procedure when using this device in steam sterilisation applications. Additionally, this device is not ideal for steam sterilisation applications above 121 °C/1.1 bar.

Utilise the trigger threshold to start recording once a user defined threshold has been breached to avoid collecting irrelevant data.

There are two methods for setting up multiple data loggers for a single validation exercise, using the batch start function.

A batch start is the same as ‘custom start’ but instead of the configuration window closing after configuring one data logger it remains open and automatically applies the same settings to each additional data logger that is inserted into the interface.

  • [Method 1] Batch start, with a single IFC400 interface or [Method 2] Batch start, with a multiplexer IFC406 interface.

Once the validation exercise has been concluded, wait for the data loggers to cool down or warm up and insert them back into the interface. Using MT4 software and ‘workflows’ to automatically download and save data before generating customised reports and performing analytical functions, including:

  • Graphical temperature vs. time with threshold analysis
  • Table of temperature vs. time data
  • Statistical evaluation
    • Maximum
    • Minimum
    • Average
    • Change over time
    • F0
    • PU

Compatible with the HiTemp140 range of products and accessories which encompass the demand for reliability and high performance at reasonable prices.

Requires: IFC400 or IFC406 interface along with free issued MT4 software

Calibration Certificate

  • Standard calibration: 0 and 121°C to MFG specification.
  • Custom calibration: 3 user defined points across measuring or operating range with option to exceed MFG specification.
  • ISO17025 calibration available on request.
Manufacturer

MadgeTech

Parameter(s)

Temperature

Usage Type

Multiple

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

1

Sensor type

PFA flexible RTD probe x 0.1" diameter available in 6/12/36 and 72" lengths

Memory

32767 readings

Sample rate

4 readings a second ~ 60 minutes

Range

-60°C ~ + 260°C

Accuracy

+20 °C to 140 °C ±0.1 °C
-20 °C to 19.99 °C ±0.3 °C
-40 °C to -20.01 °C ±0.4 °C
(Probe Range) -200 °C to 260 °C ±2.0 °C

Resolution

0.01°C

Material

316 Stainless Steel

Power

User replaceable battery

Battery Life

365 days

Dimensions

Data logger 2.95" x 0.97"

Environment

IP68

Operating Conditions

-40 °C ~ +140 C
-60°C ~ +250°C (With Thermal Shield)
4Bar pressure

Features

Rapid sampling and recording
Suitable for use in autoclaves
Compatible with thermal shield for use in extreme temperatures
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer

Product Brochure
HiTemp140 FP Data Sheet WPLS PDF 1 MB
Medical Pharma Overview 2016 WPLS PDF 4 MB
Instruction Manual
HiTemp140 FP User Guide WPLS PDF 275 KB
HiTemp140 FP Dimensional_Drawing WPS PDF 162 KB
MadgeTech4_Software_Manual WPLS PDF 5MB
