LCS140 – Lethality Compliance System

Product coming soon

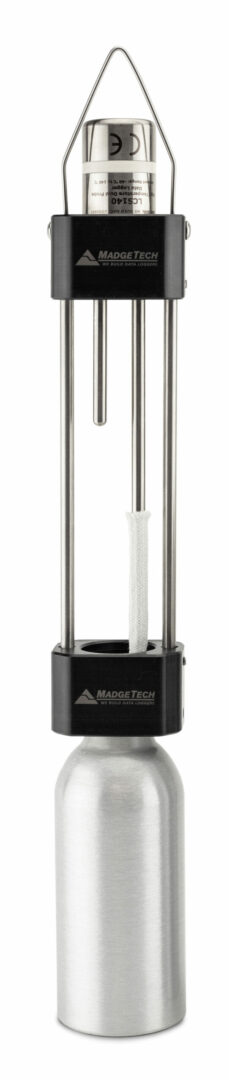

LCS140 – Lethality Compliance System – Wet and dry bulb data logger

QuantityPriceYou Save
5+£0.006%
11+£0.008%
30+£0.0014%
50+£0.0015%
100+£0.0018%
1+£0%

Product Description

Need to record humidity at high temperatures? Look no further than the LCS140 Wet-Bulb/Dry-Bulb system. Ditch the complexity of calculating with a psychrometer, the LCS140 coupled with the MadgeTech 4 Software does all the work for you!

Capable of withstanding temperatures from -40 °C to +140 °C (-40 °F to +284 °F), the dual probe LCS140 takes wet-bulb and dry-bulb readings simultaneously to determine the amount of humidity present.

The LCS140 Includes:

• LCS140 Dual Probe Data Logger

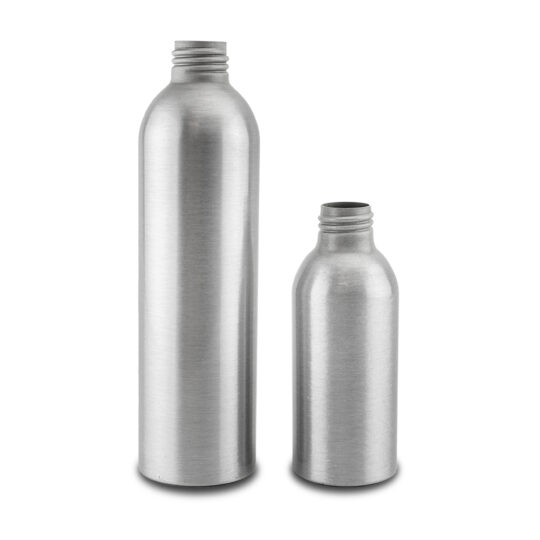

• Reservoir Bottle (recommended to use distilled water only)
• Wet Bulb Socks
• Hanging Fixture

The LCS140 is compatible with the latest MadgeTech 4 Software making starting,
stopping, and downloading simple and easy. Graphical, tabular, and summary data is
provided for analysis and can be viewed as customizable engineering units.

Manufacturer

MadgeTech

Parameter(s)

Temperature

Usage Type

Multiple

Connectivity

USB via interface

Sensor internal or external

External

Channels

2

Sensor type

2 channel PT100

Memory

32767 readings

Sample rate

1 reading a second ~ 1 reading a day

Range

+20 °C to 140 °C

Accuracy

+20 °C to 140 °C ±0.1 °C
Custom calibration can deliver enhanced accuracies.

Resolution

0.01°C

Material

316 Stainless Steel

Power

User replaceable battery

Battery Life

365 days

Dimensions

Data logger 1.89" x 0.97"

Environment

IP68

Operating Conditions

-20°C ~ +140°C

Features

Suitable for use in autoclaves, cooking and package validation
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer

Product Brochure
lcs140-ssPDF925 KB
Instruction Manual
lcs140-pugPDF375 KB
