UTREL30
Multi use, 16K reading, remote probed low temperature + replaceable battery.
Part of Wessex Power • Looking for Compliant Monitoring Solutions? Visit wessexpower.co.uk
Call 01929 459459 or email with any questions

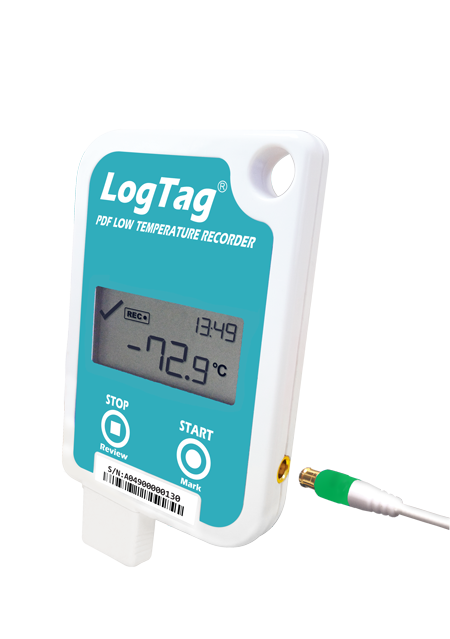

The UTREL16 is a -90°C min/max ultra low vaccine temperature data logger with connector for an external temperature sensor, LCD display and integrated USB connector.
Part of a suite of products designed to work as a complete monitoring system
Records -90 °C
Up to 8000 temperature readings over a range of -90 to +40 °C from interchangeable remote probe
USB Direct
Automatically generated detailed PDF reports with the option to download data with LogTag© Analyser
LCD Display
The display allows immediate viewing of current and salient historical environmental events
Discover the LogTag UTREL16 low temperature vaccine data logger, an affordable, multi-use solution with an external probe. The UTREL16 records up to 16129 temperature readings over -90°C to +40°C, where the external probe can be inserted into vaccine packages during storage or shipping.
A highly durable option, this vaccine data logger has a battery that typically expires after two years and no recharging is required.
Simply connect this low temperature data logger into a USB port to access all of your data at your fingertips. Create detailed PDF reports to analyse data and ensure you meet regulatory compliance.
Its modern LCD display allows you to monitor the progress of all vaccine storage and shipments, from recording status to real-time temperature readings. To ensure temperatures are not breached, this vaccine temperature monitoring device also has six user-configurable alarms. These can be customised depending on your requirements.
Using the UTREL16 is both simple and easy. Mount it to the outside of a package or to the side of an appliance, feed the probe into the low temperature environment and press the start button.
This vaccine data logger requires an ST10 probe.
Learn more about the UTREL16 by getting in touch with our team of experts at Loggershop. Call us on 01929 459459 or email [email protected].
LogTag
Temperature
Multiple Use
USB via interface
External
1
Thermistor
16,129
(112days at 10 min recording interval)
Current temperature
Min/Max
Status of 1~6 alarms
30 seconds ~ 60 minutes
-90°C ~ +40°C
Better than ±0.5°C for -20°C to +10°C
Better than ±0.7°C for -50°C to -20°C and +10°C to +30°C
Better than ±1°C for -80°C to -50°C and +30°C to +40°C
Better than ±1.8°C for -90°C to -80°C
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart above.
Accuracy figures can be improved by re-calibration.
0.1°C for measurements -80°C to 0°C
0.2°C for measurements 10°C to 20°C and -90°C to -80°C
0.3°C for measurements 18°C to 30°C
0.5°C for measurements 30°C to 40°C
Polycarbonate
1 year storage, 2 years of normal use (based on 15 minute logging, download data monthly).
93mm (H) x 54.5mm (W) x 8.6mm (T)
IP61 (when vertically mounted or hung with USB dust-cap in place).
-30°C ~ +60°C
Three configurable upper and three configurable lower alarms.
Windows PC
