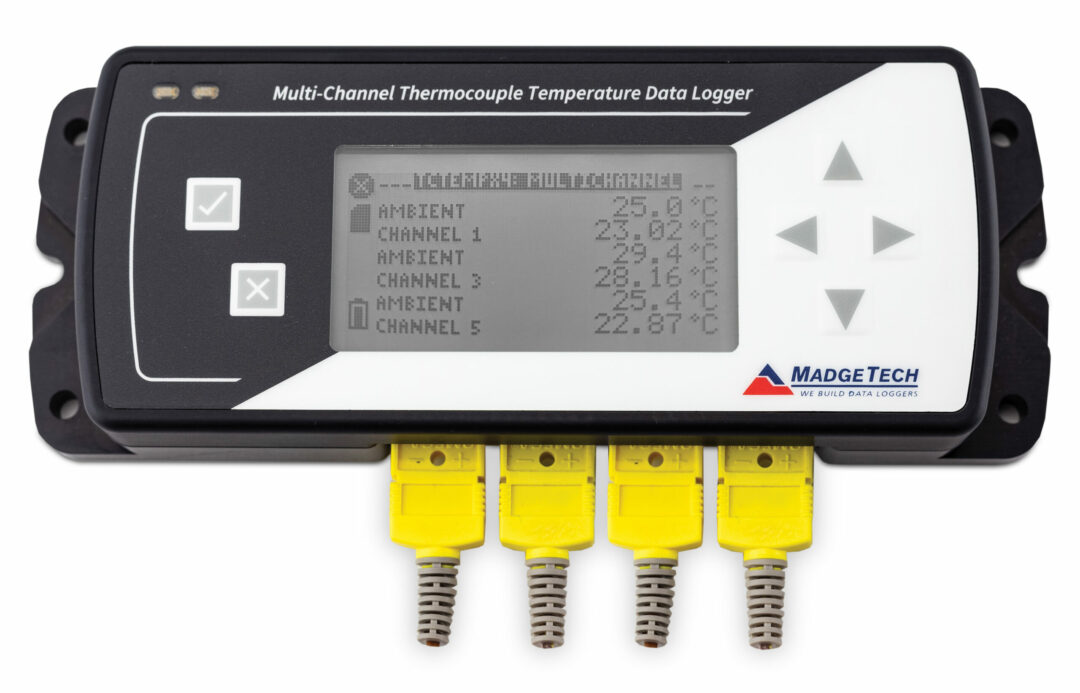

MadgeTechTCTempLCDXThermocoupleDataLoggerwithDisplay

By MadgeTech Data Loggers
From: £624.17

Overview

The TCTempXLCD display temperature data logger, available with 4 and 8 thermocouple inputs, features flexible data collection with optional temperature probes.

Customise this datalogger

Part of a suite of products designed to work as a complete monitoring system

  • Channel option
  • 3 Point System Calibration Certificate
* Calibration takes between 3 - 7 business days Add and customise

Measures

Temperature over the range of -270 to +1370 °C. Compatible with thermocouple probes. Available in 4 and channel formats

LCD Display

The display allows immediate viewing of current readings along with historical statistics

Large memory

Collect up to 1M data points and download via direct USB connection

Information

Product Description

The MadgeTech TCTempLCDX thermocouple data logger is designed to display and collect precise temperature data for meeting regulatory compliance, available with 4 and thermocouple inputs (12 and 16 options due out in 2021)

This temperature data logger is compatible with a variety of thermocouple sensors, such as J, K, T, E, R, S, B, N and more. With a memory capacity of over 2,000,000 readings and 4Hz recording speeds, this multi-channel data logger is extremely versatile, user-friendly, and ideal for use in a large-scale facility. Channels can be individually named in order to provide clear identification during recording and analysis.

We can accompany this temperature data logger with probes and offer a bespoke system calibration service, helping you to find the most appropriate setting for recording desired data.

For quick and seamless reporting, this temperature data logger with thermocouple is compatible with the MadgeTech MT4 software. Users can export data from a USB and view results from different channels simultaneously to carry out a detailed analysis.

The TCTempLCDX thermocouple data logger is accompanied with the following equipment:

  • USB cable
  • Power supply
  • Calibration certificate (input only, please select the optional system calibration if sensors need to be calibrated with your data logger)
  • Compatible with MT4 software, which can be downloaded free at Loggershop.

To learn more about the MadgeTech TCTempLCDX thermocouple data logger, get in touch with our friendly team of experts at Loggershop. Call 01929 459459 or email sales@loggershop.co.uk.

Specifications

Manufacturer

Madgetech

Parameter(s)

Temperature

Usage Type

Multi use

Connectivity

USB-A to micro USB cable (included); 460,800 baud

Sensor internal or external

External

Channels

TCTempX4LCD | PN 902170-00 | 4-Channel Thermocouple Data Logger
TCTempX8LCD | PN 902172-00 | 8-Channel Thermocouple Data Logger

Sensor type

Thermocouple
J, K, T, E, R, S, B, N

Memory

4-channel: 524,032 readings per channel
8-channel: 262,016 readings per channel

Sample rate

4 readings a second up to 1 reading every 24 hours

Range

-20 °C to +60 °C

Accuracy

Thermocouple Range (°C) Resolution Accuracy*
J -210 to +760 0.1 °C ±0.5 °C
K -270 to +1370 0.1 °C ±0.5 °C
T -270 to +400 0.1 °C ±0.5 °C
E -270 to +980 0.1 °C ±0.5 °C
R -50 to +1760 0.5 °C ±2.0 °C
S -50 to +1760 0.5 °C ±2.0 °C
B +50 to +1820 0.5 °C ±2.0 °C
N -270 to +1300 0.1 °C ±0.5 °C
* Estimated accuracy, real accuracies established with system calibration

Resolution

0.01°C

Material

Black anodized aluminium

Power

Battery 9V lithium
Or mains supply via supplied power adaptor

Battery Life

18 months typical (Display off)
3 months display on constantly

Dimensions

4-channel: 65.6 mm x 184.2 mm x 31.0 mm
8-channel: 65.6 mm x 184.2 mm x 31.0 mm

Operating Conditions

-20°C to +60°C
0 %RH to 95 %RH non-condensing

Alarm

In software

Features

LCD display
Flexible and robust thermocouple data logger with cold junction compensation.
