MadgeTechTCTempXTemperatureDataLogger
By MadgeTech Data LoggersOverview
The TCTempX temperature data logger, available with 4, 8, 12 and 16 thermocouple inputs, features flexible data collection with optional temperature probes.
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Channel option
- 3 Point System Calibration Certificate
Measures
Temperature over the range of -270 to +1370 °C. Compatible with thermocouple probes. Available in 4/8/12 and 16 channel formats
Large memory
Collect up to 1M data points and download via direct USB connection
Cost Effective
Utilises the free powerful Madgetech software for simple or in-depth analysis. Optional secure software is available for applications that require 21 CFR 11 compliance.
Information
Product Description
The MadgeTech TCTempX thermocouple data logger is designed to collect precise temperature data for meeting regulatory compliance, available with 4, 8, 12 and 16 thermocouple inputs.
This temperature data logger is compatible with a variety of thermocouple sensors, such as J, K, T, E, R, S, B, N and more. With a memory capacity of over 2,000,000 readings and 4Hz recording speeds, this multi-channel data logger is extremely versatile, user-friendly, and ideal for use in a large-scale facility. Channels can be individually named in order to provide clear identification during recording and analysis.
We can accompany this temperature data logger with probes and offer a bespoke system calibration service, helping you to find the most appropriate setting for recording desired data.
For quick and seamless reporting, this temperature data logger with thermocouple is compatible with the MadgeTech MT4 software. Users can export data from a USB and view results from different channels simultaneously to carry out a detailed analysis.
The TCTempX thermocouple data logger is accompanied with the following equipment:
- USB cable
- Power supply
- Included calibration certificate (input only, please select the optional system calibration if sensors need to be calibrated with your data logger)
- Optional calibration: -20°C/0°C/+250°C
- Compatible with MT4 software, which can be downloaded free at Loggershop.
To learn more about the MadgeTech TCTempX thermocouple data logger, get in touch with our friendly team of experts at Loggershop. Call 01929 459459 or email [email protected].
Specifications
- Manufacturer
Madgetech
- Parameter(s)
Temperature
- Usage Type
Multi use
- Connectivity
USB-A to micro USB cable (included); 460,800 baud
- Sensor internal or external
External
- Channels
TCTempX4 | PN 902169-00 | 4-Channel Thermocouple Data Logger
TCTempX8 | PN 902171-00 | 8-Channel Thermocouple Data Logger

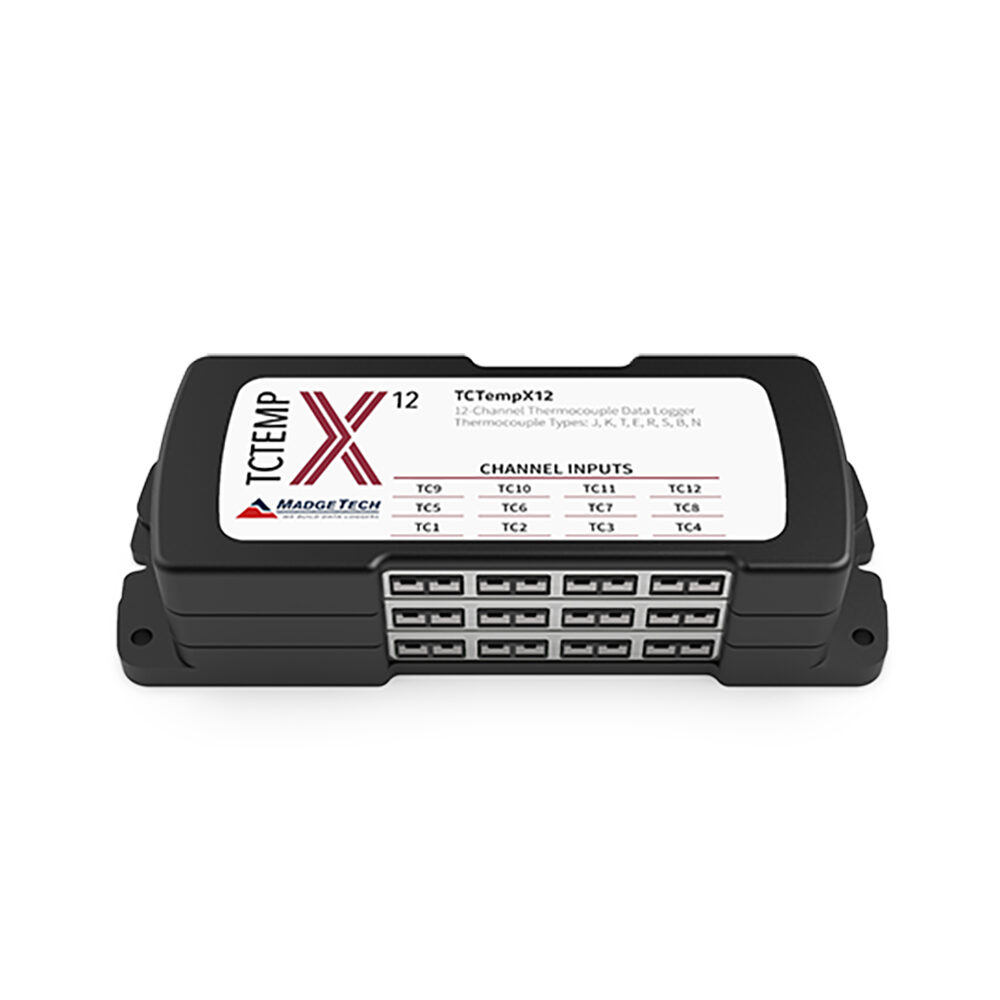

TCTempX12 | PN 902177-00 | 12-Channel Thermocouple Data Logger
TCTempX16 | PN 902174-00 | 16-Channel Thermocouple Data Logger- Sensor type
Thermocouple
J, K, T, E, R, S, B, N- Memory
4-channel: 524,032 readings per channel
8-channel: 262,016 readings per channel
12-channel: 174,677 readings per channel
16-channel: 131,008 readings per channel- Sample rate
4 readings a second up to 1 reading every 24 hours
- Range
-20 °C to +60 °C
- Accuracy
Thermocouple Range (°C) Resolution Accuracy*
J -210 to +760 0.1 °C ±0.5 °C
K -270 to +1370 0.1 °C ±0.5 °C
T -270 to +400 0.1 °C ±0.5 °C
E -270 to +980 0.1 °C ±0.5 °C
R -50 to +1760 0.5 °C ±2.0 °C
S -50 to +1760 0.5 °C ±2.0 °C
B +50 to +1820 0.5 °C ±2.0 °C
N -270 to +1300 0.1 °C ±0.5 °C
* Estimated accuracy, real accuracies established with system calibration- Resolution
0.01°C
- Material
Black anodized aluminium
- Power
Battery 9V lithium
Or mains supply via supplied power adaptor- Battery Life
18 months typical
- Dimensions
4-channel: 65.6 mm x 184.2 mm x 31.0 mm
8-channel: 65.6 mm x 184.2 mm x 31.0 mm
12-channel: 65.6 mm x 184.2 mm x 42.7 mm
16-channel: 65.6 mm x 184.2 mm x 54.4 mm- Environment
IP54
- Operating Conditions
-20°C to +60°C
0 %RH to 95 %RH non-condensing- Alarm
In software
- Features
Flexible and robust thermocouple data logger with cold junction compensation.
