Local Analysis SD Card Option Free Software
MCR-4V

MCR-4V 4 Channel Voltage Data Logger

£240.00

Low cost, 4 channel Voltage data logger.

Compatible with an SD card, direct USB, rugged, LCD display, expandable to 16 channels.

Sub-total
£240.00

Product Description

The low cost and durable MCR-4V is a revolutionary design which enables users to expand 4 channels to 16 channels by linking 4 x MCR-4V data loggers together.

With a fast recording rate and the ability to measure and record a wide range of transducers, sensors and other voltage sources in industrial applications. A clear LCD display provides users with immediate data and direct USB connection allowing for simple and fast communication to a PC. The free software can be installed multiple Windows computers for simple or more detailed data analysis.

MCR-4V Features

  • Expandable to 16 channels by linking 4 x MCR-4VC
  • Fast recording intervals
  • Direct USB connection
  • Robust and durable design
  • User replaceable battery. 2 x Standard AA Alkaline

MCR-4V Applications

  • Low level signal monitoring
  • Battery studies
  • Medical and Pharmaceutical
  • Power supply monitoring
  • Process plants
  • Environmental studies
  • Research and development

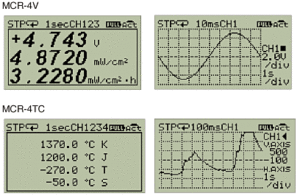

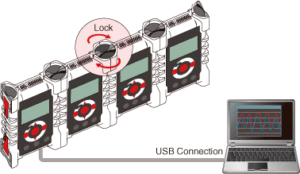

product_mcr_2.function-001 product_mcr_2.function-003 product_mcr_2.function-002

Manufacturer

T&D Corporation

Parameter(s)

Voltage

Usage Type

Multiple use

Connectivity

USB

Sensor internal or external

External

Channels

4 channels expandable to 16

Memory

(*2) When recording 1 channel : ~ 480,000 readings/ch
When recording 2 channels : ~ 240,000 readings/ch
When recording 3 channels : ~ 160,000 readings/ch
When recording 4 channels : ~ 120,000 readings/ch

Sample rate

2, 5, 10, 20, 50, 100, 200, 500 ms.
1, 2, 5, 10, 15, 20, 30 sec.
1, 2, 5, 10, 15, 20, 30, 60 min.
(The minimum interval will depend on the number of channels, measurement range, and 50-60 Hz filter setting.)

Range

Range ±300 mV, ±1.5 V, ±6 V, ±24 V, Auto (*1)
Absolute Maximum Input Voltage: ±50 V

Accuracy

When the 50-60 Hz filter is ON, varies with the Measurement Range as follows:
±300 mV : ±(0.3 % + 0.06 mV)
±1.5 V : ±(0.3 % + 0.3 mV)
±6 V : ±(0.3 % + 0.6 mV)
±24 V : ±(0.3 % + 2.4 mV)
Auto : According to the range in use

Resolution

50-60 Hz Filter ON : 0.01 mV
50-60 Hz Filter OFF : 0.1 mV

Material

ABS Plastic

Power

2 x AA Alkaline batteries

Battery Life

Approx. 4.5 ~ 150 days ( with AA alkaline batteries )

Dimensions

H 120 mm x W 75 mm x D 32 mm

Environment

Temperature: 0 to 50°C
Humidity: 90%RH or less ( no condensation )

Operating Conditions

Temperature: 0 to 50°C
Humidity: 90%RH or less ( no condensation )

Features

Low Cost, 4 channel voltage data logger, SD card slot, direct USB, rugged, LCD display, expandable to 16 channels

Product Brochure
MCR Overview Brochure WPLS PDF 28MB
MCR4VC - User Manual - WPLS PDF 7MB
Software
MCR Setup Software EXE 72MB
T&D Graph Analytical Software EXE 27MB

Product Description

The low cost and durable MCR-4V is a revolutionary design which enables users to expand 4 channels to 16 channels by linking 4 x MCR-4V data loggers together.

With a fast recording rate and the ability to measure and record a wide range of transducers, sensors and other voltage sources in industrial applications. A clear LCD display provides users with immediate data and direct USB connection allowing for simple and fast communication to a PC. The free software can be installed multiple Windows computers for simple or more detailed data analysis.

MCR-4V Features

  • Expandable to 16 channels by linking 4 x MCR-4VC
  • Fast recording intervals
  • Direct USB connection
  • Robust and durable design
  • User replaceable battery. 2 x Standard AA Alkaline

MCR-4V Applications

  • Low level signal monitoring
  • Battery studies
  • Medical and Pharmaceutical
  • Power supply monitoring
  • Process plants
  • Environmental studies
  • Research and development

product_mcr_2.function-001 product_mcr_2.function-003 product_mcr_2.function-002

Manufacturer

T&D Corporation

Parameter(s)

Voltage

Usage Type

Multiple use

Connectivity

USB

Sensor internal or external

External

Channels

4 channels expandable to 16

Memory

(*2) When recording 1 channel : ~ 480,000 readings/ch
When recording 2 channels : ~ 240,000 readings/ch
When recording 3 channels : ~ 160,000 readings/ch
When recording 4 channels : ~ 120,000 readings/ch

Sample rate

2, 5, 10, 20, 50, 100, 200, 500 ms.
1, 2, 5, 10, 15, 20, 30 sec.
1, 2, 5, 10, 15, 20, 30, 60 min.
(The minimum interval will depend on the number of channels, measurement range, and 50-60 Hz filter setting.)

Range

Range ±300 mV, ±1.5 V, ±6 V, ±24 V, Auto (*1)
Absolute Maximum Input Voltage: ±50 V

Accuracy

When the 50-60 Hz filter is ON, varies with the Measurement Range as follows:
±300 mV : ±(0.3 % + 0.06 mV)
±1.5 V : ±(0.3 % + 0.3 mV)
±6 V : ±(0.3 % + 0.6 mV)
±24 V : ±(0.3 % + 2.4 mV)
Auto : According to the range in use

Resolution

50-60 Hz Filter ON : 0.01 mV
50-60 Hz Filter OFF : 0.1 mV

Material

ABS Plastic

Power

2 x AA Alkaline batteries

Battery Life

Approx. 4.5 ~ 150 days ( with AA alkaline batteries )

Dimensions

H 120 mm x W 75 mm x D 32 mm

Environment

Temperature: 0 to 50°C
Humidity: 90%RH or less ( no condensation )

Operating Conditions

Temperature: 0 to 50°C
Humidity: 90%RH or less ( no condensation )

Features

Low Cost, 4 channel voltage data logger, SD card slot, direct USB, rugged, LCD display, expandable to 16 channels

Product Brochure
MCR Overview Brochure WPLS PDF 28MB
MCR4VC - User Manual - WPLS PDF 7MB
Software
MCR Setup Software EXE 72MB
T&D Graph Analytical Software EXE 27MB

Similar Products

  • RFVolt2000A USB and Wireless Voltage Data Logger

    Voltage, USB or wireless radio data logger.

    £215.00

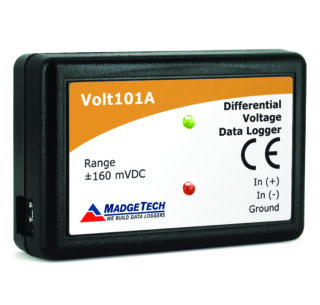

  • Volt101A Data Logger
