RFVolt2000AUSBandWirelessVoltageDataLogger

By MadgeTech Data Loggers
From: £215.00

Overview

Voltage, USB or wireless radio data logger.

Customise this datalogger

Part of a suite of products designed to work as a complete monitoring system

  • Voltage range
  • Wireless transceiver
  • Software upgrade
  • Power adapter
Add and customise

Wireless Measurement

Current data, available in ranges from -160mV to 32 VDC

Cloud

Compatible with MadgeTech cloud for remote data collection via the internet

LCD Display

The display allows immediate viewing of current readings along with historical statistics and alarm status

Information

Product Description

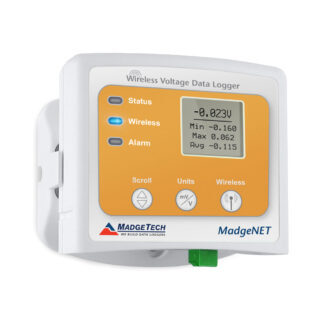

The RFVolt2000A is a compact data logger for monitoring and recording data delivered by sensors with a voltage output.

it is either battery or mains powered so it can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD screen, trigger local audible/visual alarms and connect to a USB computer for periodic analysis. If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeaters.

Ideally suited to clients looking for a quality analogue voltage data logger that could be networked should manually collecting data loggers become time consuming.

Hardware Features

  • Direct voltage connection via terminal block.
  • USB and Wireless connectivity .
  • Voltage data logger
  • Email and audible alarms.
  • LCD display.
  • Battery or optional mains powered.
  • Cloud services compatibility.

Applications

  • Battery usage studies
  • Photovaltic / Solar Cell monitoring
  • Recording signals from transducers and sensors

MT4 standard software Features

  • Engineering Units - Scale your voltage data against engineered parameters like PSI
  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with: Sensors, battery, mounting/stand bracket , MT4 software and USB cable.

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adapter

Specifications

Manufacturer

Madgetech

Parameter(s)

Voltage

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

Internal

Channels

1 channel

Memory

32,2568 readings

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

2.5 V: -3 VDC ~ +3 VDC
15 V: -8 VDC ~ +24 VDC
30 V: -8 VDC ~ +32 VDC
160 mV:-160 mVDC ~ +160 mVDC

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

Approximate 5 years typical for 15 minute reading rate

Dimensions

3.5 in x 3.17 in x 0.95 in
(88.9 mm x 80.5 mm x 24.1 mm) - Data logger only

Environment

-20 °C to ~ 60 °C, 0 %RH to 95 %RH non-condensing

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless , email & audible alarms, , LCD display, battery or mains powered
