RFRTDTemp2000A RTD temperature data logger
RFRTDTemp2000A RTD temperature data logger
RFRTDTemp2000A RTD temperature data logger
RFRTDTemp2000
RFRTDTemp2000A RTD temperature data logger
RFRTDTemp2000A RTD temperature data logger
RFRTDTemp2000A RTD temperature data logger
RFRTDTemp2000A

RFRTDTemp2000A USB and Wireless PT100 Temperature Data Logger

£215.00£302.50

4 wire PT100 temperature USB or wireless radio data logger.

Quantity Price You Save
1+ £215 0%
5+ £202.10 6%
11+ £197.80 8%
30+ £184.90 14%
50+ £182.75 15%
100+ £176.30 18%

Product Description

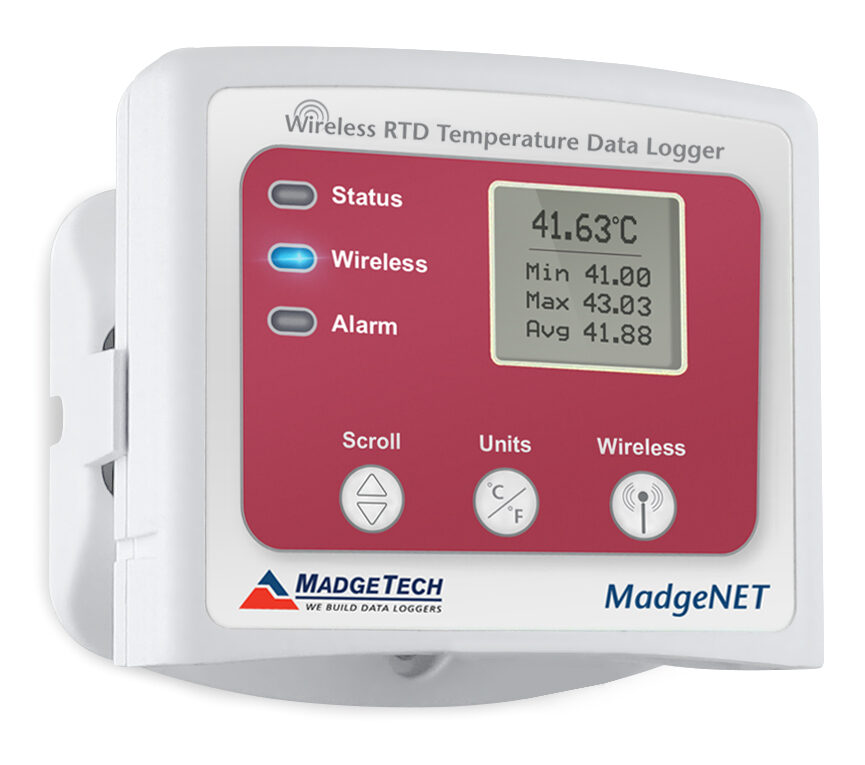

The RFRTDTemp2000A is a precision data logger, compatible with any 4 wire PT100/RTD temperature sensor.

It is battery or mains powered so it can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD screen, trigger local audible/visual alarms and connect to a USB computer for periodic analysis. If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeaters.

Displays and records data to an accuracy of 0.01with a resolution of 0.001°C.
Please contact our sales engineers to discuss system (Probe+Data logger) accuracies.

Hardware Features

  • USB and Wireless connectivity
  • Temperature data logger
  • Email and audible alarms
  • LCD display
  • Battery or optional mains power supply.
  • Cloud services compatibility

Suitable for.

  • Clinical trials
  • Appliance validation
  • Critical vaccine storage alarm with audible warning

MT4 standard software Features

  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with:  Connector for wiring to a sensor, battery, mounting/stand bracket , MT4 software and USB cable.

Requires: 4 wire PT100/RTD temperature sensor with bare tails to be terminated into supplied connector

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adapter
Manufacturer

Madgetech

Parameter(s)

Temperature

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

External

Channels

2 channel, internal and external

Sensor type

External RTD

Memory

16,128 readings per channel

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

External channel: -200 ~ +850°C

Accuracy

External channel: 0.1°C

Resolution

0.001°C

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

3 years typical at a 1 minute reading rate

Dimensions

76.2mm x 88.9mm x 24.1mm

Environment

-20°C to ~ 60°C

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless, email & audible alarms, 21 CFR 11, LCD display, battery or mains powered

Product Brochure
RFRTDTemp2000A Data Sheet WPLS PDF 1 MB
Instruction Manual
RFRTDTemp2000A User Guide WPLS PDF 1 MB
Software
MadgeTech Software ZIP 30MB

Product Description

The RFRTDTemp2000A is a precision data logger, compatible with any 4 wire PT100/RTD temperature sensor.

It is battery or mains powered so it can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD screen, trigger local audible/visual alarms and connect to a USB computer for periodic analysis. If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeaters.

Displays and records data to an accuracy of 0.01with a resolution of 0.001°C.
Please contact our sales engineers to discuss system (Probe+Data logger) accuracies.

Hardware Features

  • USB and Wireless connectivity
  • Temperature data logger
  • Email and audible alarms
  • LCD display
  • Battery or optional mains power supply.
  • Cloud services compatibility

Suitable for.

  • Clinical trials
  • Appliance validation
  • Critical vaccine storage alarm with audible warning

MT4 standard software Features

  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with:  Connector for wiring to a sensor, battery, mounting/stand bracket , MT4 software and USB cable.

Requires: 4 wire PT100/RTD temperature sensor with bare tails to be terminated into supplied connector

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adapter
Manufacturer

Madgetech

Parameter(s)

Temperature

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

External

Channels

2 channel, internal and external

Sensor type

External RTD

Memory

16,128 readings per channel

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

External channel: -200 ~ +850°C

Accuracy

External channel: 0.1°C

Resolution

0.001°C

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

3 years typical at a 1 minute reading rate

Dimensions

76.2mm x 88.9mm x 24.1mm

Environment

-20°C to ~ 60°C

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless, email & audible alarms, 21 CFR 11, LCD display, battery or mains powered

Product Brochure
RFRTDTemp2000A Data Sheet WPLS PDF 1 MB
Instruction Manual
RFRTDTemp2000A User Guide WPLS PDF 1 MB
Software
MadgeTech Software ZIP 30MB
