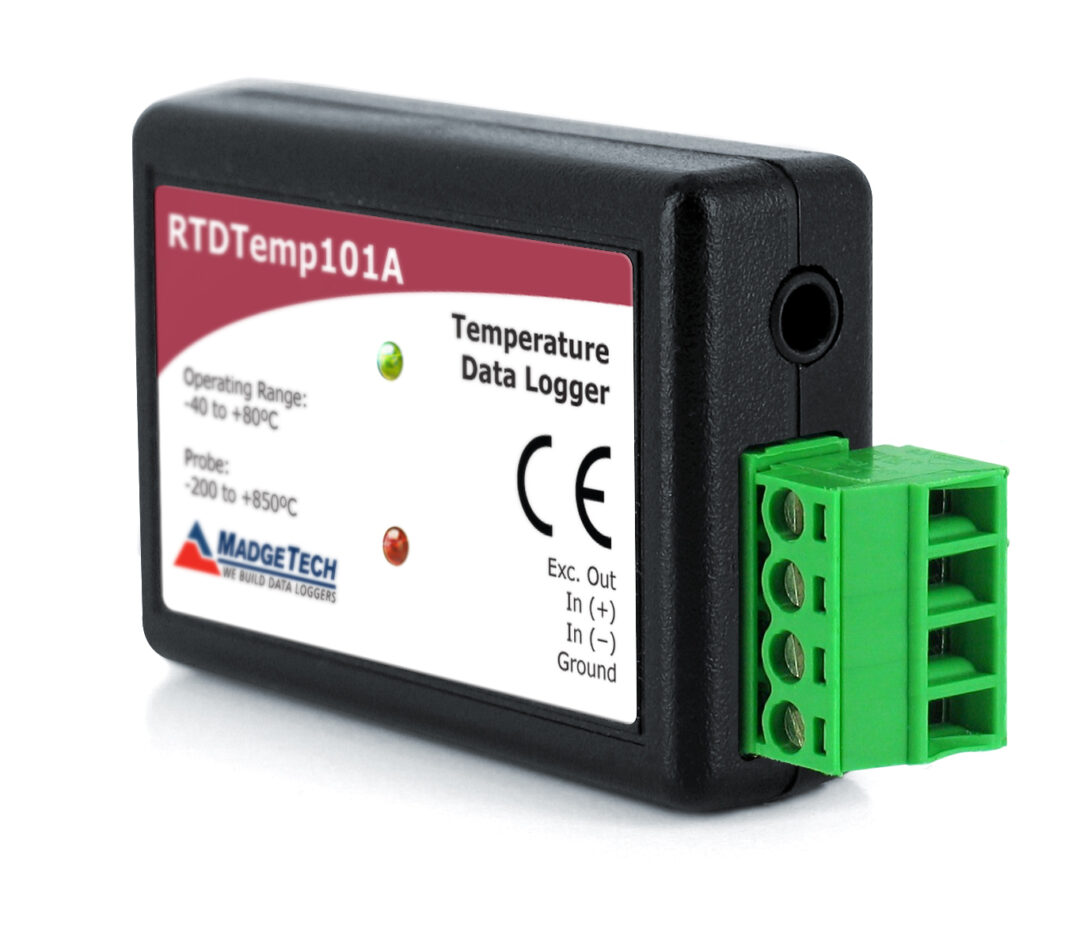

RTDTemp101A Precision PT100 Data Logger

From: £145.00

Precision temperature data logger for connection to 4-wire RTD probe.

Product Description

The most accurate low cost data logger on the market delivering 0.015°C  accuracies.

The  RTDTemp101A records temperatures across the range of -200 to +850°C when using an external RTD probe (supplied separately) making it incredibly flexible to cover a range of applications. With over million memory points and a battery life of up to 10 years the RTDTemp101A offers market leading performance at an affordable price.

The free MadgeTech 4 software makes programming and downloading data easy with additional powerful reporting for detailed data analysis. The software evens features a battery level indicator that clearly shows the remaining  life of the battery.  The battery is also user replaceable saving both time and cost of ownership.

The RTDTemp101A is suitable of a wide range of applications including Dry Ice, Freezer,  Fridges, Stability chambers and other appliances that require precision monitoring.

Requires IFC200 interface and free software



Manufacturer

Madgetech

Parameter(s)

Temperature

Usage Type

Multi use

Connectivity

USB via IFC200 interface

Sensor internal or external

External RTD

Channels

Single

Sensor type

External RTD

Memory

1,000,000 memory points

Sample rate

1 reading every second to 1 reading every 24 hours

Range

-200 ~ +850°C

Accuracy

0.015°C - Input only
Please contact us to discuss system accuracies.

Resolution

0.01°C

Material

ABS Plastic

Power

Battery

Battery Life

up to 10 years

Dimensions

36mm x 56mm x 16mm

Environment

IP54 for dry environments used with Waterbox101A for IP65 applications

Operating Conditions

-40 °C ~ +80 °C and 0 %RH to 95 %RH non-condensing

Alarm

LED and in report

Features

External probe, User replaceable battery, Push button start, Optional password protection, LED, 21 CFR 11, Battery life indicator, up to 10 year battery life

Instruction Manual
RTDTemp101A Information Card WPLS PDF 314 KB
Product Brochure
RTDTemp101A_WPLS PDF 1 MB

Product Description

The most accurate low cost data logger on the market delivering 0.015°C  accuracies.

The  RTDTemp101A records temperatures across the range of -200 to +850°C when using an external RTD probe (supplied separately) making it incredibly flexible to cover a range of applications. With over million memory points and a battery life of up to 10 years the RTDTemp101A offers market leading performance at an affordable price.

The free MadgeTech 4 software makes programming and downloading data easy with additional powerful reporting for detailed data analysis. The software evens features a battery level indicator that clearly shows the remaining  life of the battery.  The battery is also user replaceable saving both time and cost of ownership.

The RTDTemp101A is suitable of a wide range of applications including Dry Ice, Freezer,  Fridges, Stability chambers and other appliances that require precision monitoring.

Requires IFC200 interface and free software
