RTR-500BW Wireless Base Station Data Logger
glb-rtr500bw
glb-rtr500bw-left
glb-rtr500bw-right
RTR500BW

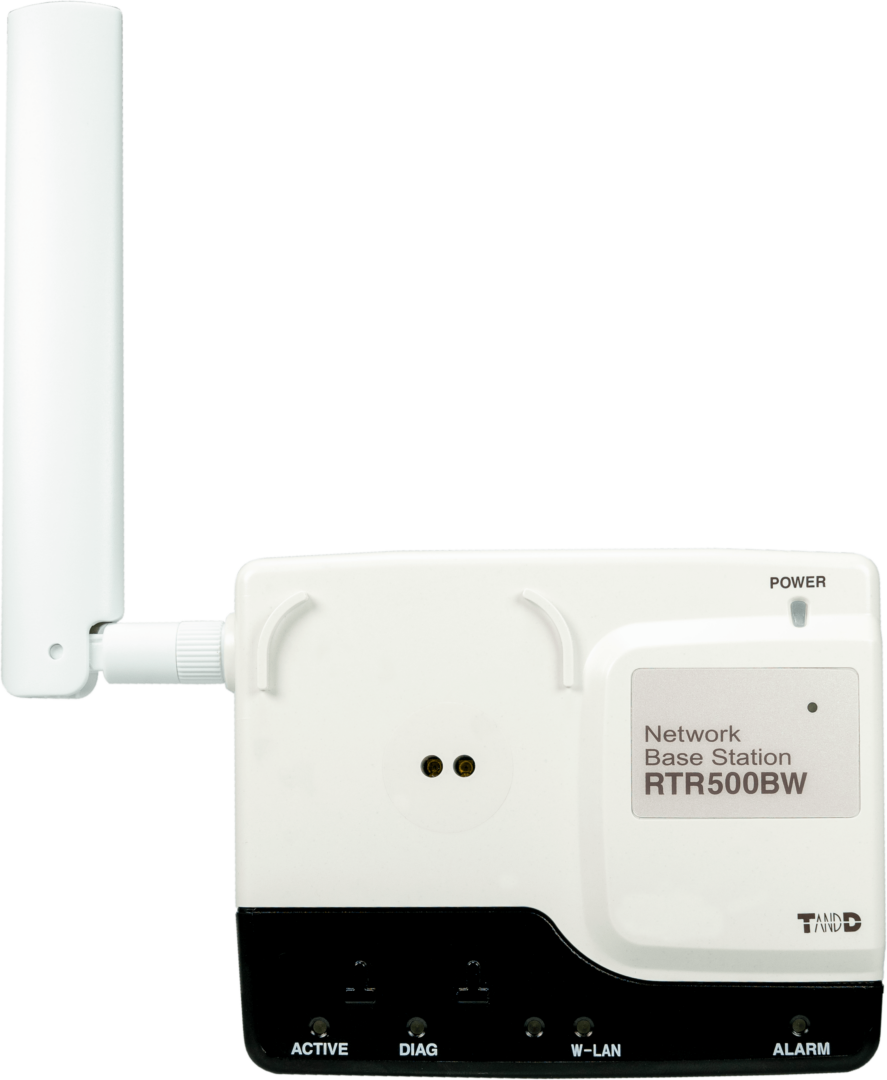

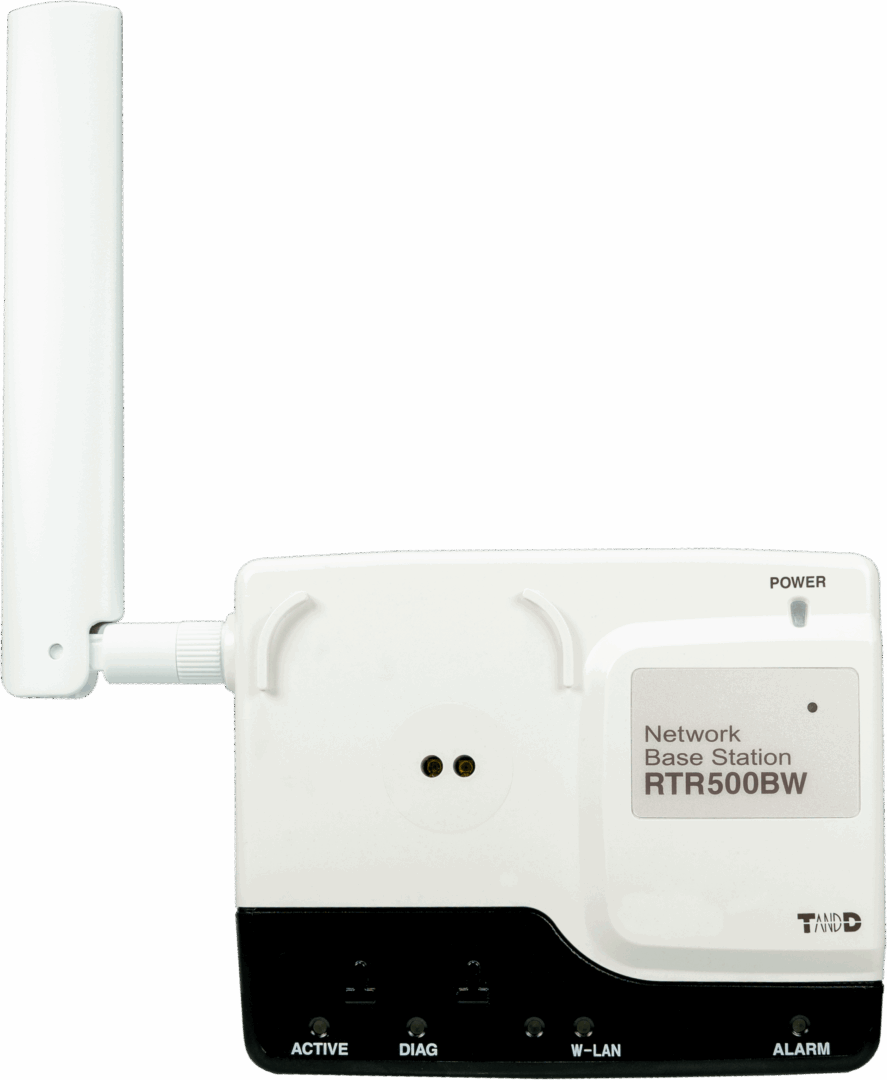

RTR500BW Network Base Station for RTR500B Data Loggers

£270.00

RTR500BW Base station with LAN and WiFi network connectivity, USB and Bluetooth data logger setup and sends RTR500 data to WSS cloud software.

Sub-total
£270.00

Product Description

RTR500BW: Wireless collection of data using radio to communicate with 1 ~ 50 RTR500 data loggers. Ethernet/LAN connectivity to your network with free TandD web storage service for on-line monitoring and installable utilities for local network collection and presentation of data.

Create a cost effective, local or global, scaleable network of data loggers avoiding infrastructure costs by using established  LAN and WiFi networks

Supplied as standard with mains power pack, aerial, LAN connection and USB cables. Can be purchased with a larger aerial for enhancing signal strength when required.

Available with optional mounting bracket for fixing to a wall.

RTR500BW Features

  • LAN and WiFi communication
  • Bluetooth setup
  • HTTPS Compatability
  • Automated route settings
  • Remotely access your data over the internet for free.
  • Take control and ownership of your data using free issued offline analytical and archiving utilities.
  • Robust and durable design.
  • Relay output for connection to local or remote 3rd party monitoring/alarm system
  • Offline analysis with TandD Graph software

iOS – Mobile setup application



Manufacturer

TandD

Data logger to Base station

Short Range Wireless Communication
Frequency Range: 869.7 to 870MHz | RF Power: 5mW
Transmission Range: Application/environment dependant, please contact our engineers for advice.

Connectivity

Wired LAN (RJ45 connector 100 Base-TX/10 Base-T)
Wireless LAN (IEEE 802.11 a/b/g/n, WEP(64bit/128bit) / WPA-PSK(TKIP) / WPA2-PSK(AES))
Bluetooth 4.2 (Bluetooth Low Energy) For Settings
USB 2.0 (Mini-B connector) For Settings
Optical Communication (proprietary protocol)

Communication Protocol

Options: HTTP, HTTPS, FTP, SNTP, DHCP
Communication via proxy is not supported.

Compatible devices

RTR501B, 502B, 503B, 505B, 507B and RTR500BC including Bluetooth
Backward compatible with, RTR501, 502, 503, 507, 574, 576, 505 and RTR500 excluding Bluetooth

Registration limit

50 data loggers

Power

Mains powered

Dimensions

Device: 83mm x 102mm x 28mm
Standard aerial: 115mm

Operating Conditions

-10 ~ 60°C

Alarm

Email
Relay for audio/visual beacon and interfacing with BMS

Features

Cloud data access via web browser
Setup via USB and Bluetooth

Product Brochure
RTR500B Catalog WPLSPDF5MB
Software
RTR500BW-203-softwareEXE120MB
T&D Graph Analytical SoftwareEXE28MB
TandD Tools 1002EXE95MB
RTR500BW-firmware-10013EXE7MB
Product Manual
RTR00BW-ManualPDF2MB
