SRIL-8DataLogger
By LogTag Data LoggersOverview

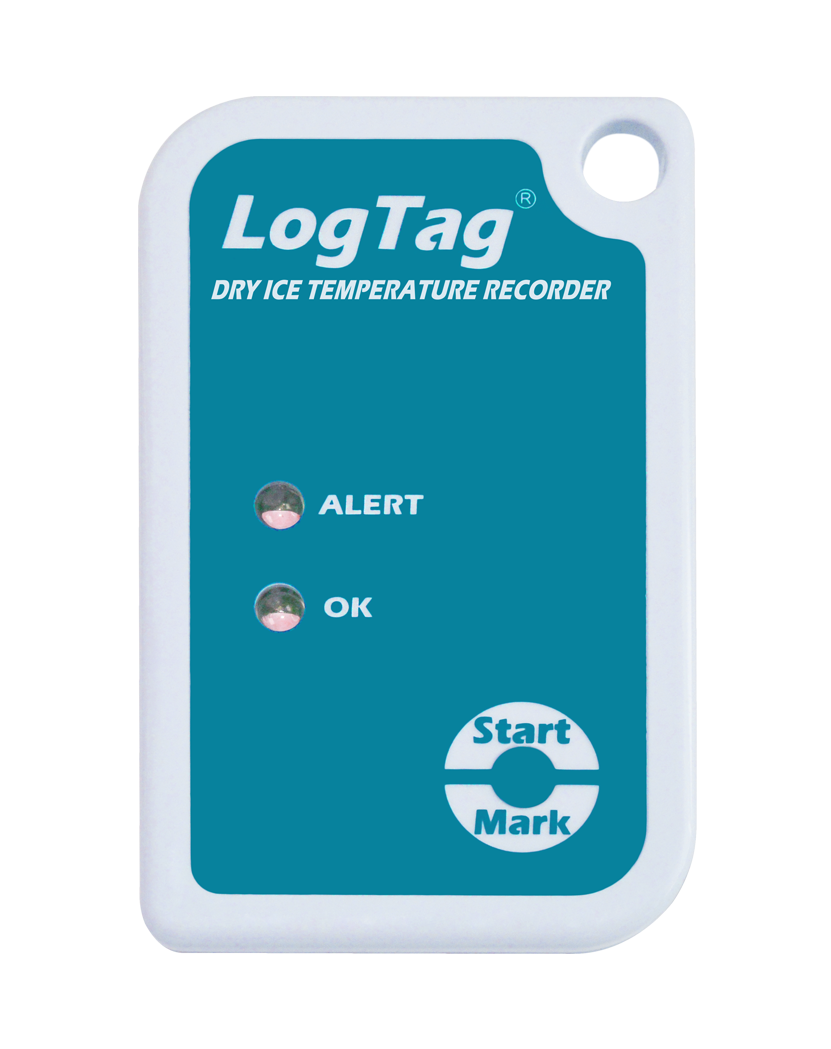

The SRIL-8 data logger is an ultra-low temperature, single use, user configurable data logger with integral probe for ULT freezer and dry ice temperature monitoring, 8000 readings and clear LED alarm.
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Calibration certificate
- Cradle - Required for data download
Rated for -80 °C
Up to 8000 temperature readings over -80 °C to +40 °C measurement range
Visual Alarm
Green and red lights indicate if collected data is in or out of the user defined (acceptable) limits
Software
Take advantage of LogTag's freely available companion software LogTag© Analyser
Information
Product Description
Please note: Configuration and data retrieval requires a USB interface cradle.
The SRIL-8 data logger is a single use, ultra-low temperature data logger with integral data logger probe, designed specifically for use in the distribution of time temperature sensitive products in dry ice at -80°C.
Cold chain shipping
Simply configure the SRIL-8 temperature data logger using the USB interface cradle and free issued LogTag data logger software (see downloads section) and deploy the data logger directly into the cold chain shipping container.
Ideally suited to recording up to 40 days of time stamped temperature readings (8-minute interval) during the transportation process.
Upon receipt of the delivery a clear indication will be presented via the green and red flashing LED and a full audit of the shipment can be extracted, verified and automatically distributed to assigned personnel following download. Rapid configuration, retrieval of collected data and analysis is performed using the free issued LogTag analyser data logger software in conjunction with a USB interface cradle.
Specifications
- Manufacturer
LogTag
- Parameter(s)
Temperature
- Usage Type
Single
- Connectivity
USB via interface
- Sensor internal or external
Internal
- Channels
1
- Sensor type
Thermistor
- Memory
8000
- Sample rate
1 minute ~ 18 hours
- Range
-80°C ~ +40°C
- Accuracy
<+/- 1.7°C
Contact our calibration department for advice on offset adjustment.- Resolution
0.1°C between -80°C ~ 0°C
- Material
Polycarbonate
- Power
3.6v low temperature battert
- Battery Life
1000hrs
- Dimensions
86mm x 54.5mm x 8.6mm
- Environment
IP65
NEMA 4- Operating Conditions
-80°C ~ +40°C
Suitable for use in dry ice shipment and ultra low temperature freezers- Alarm
Flashing LED and in report
- Features
LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance- Computer Requirements
Windows PC
- Compliance
RTCA/DO‐160G section 21 as category H
Downloads
Product Brochure
LogTag SRIL-8 Brochure WPLSPDF • 2 MB
Instruction Manual
TRIL-SRIL-TREL Quick Start Guide WPLSPDF • 1 MB
Software - Windows PC only
LogTag LTAnalyzer SoftwareEXE •
