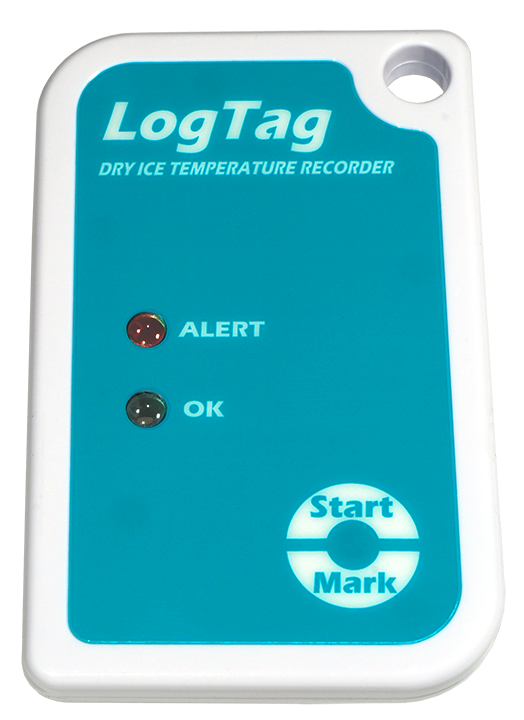

TRIL-8DataLogger

By LogTag Data Loggers
From: £67.47

Overview

The LogTag TRIL-8 is an ultra low temperature data logger which is user configurable with an integral probe for freezer and dry ice temperature monitoring up to 8000 readings and a clear LED alarm.

Customise this datalogger

Part of a suite of products designed to work as a complete monitoring system

  • Calibration certificate
  • Pre configuration
  • Cradle - Required to download data
  • Protective Enclosure
  • Bracket
* Calibration takes between 3 - 7 business days Add and customise

Rated for -80 °C

Up to 8000 temperature readings over -80 °C to +40 °C measurement range

Multiple Use

Up to 1000 hours use in -80 °C environment, delivering cost effective operation without a probe being needed.

Software

Take advantage of LogTag's freely available companion software LogTag© Analyser

Information

Product Description

Please note: Configuration and data retrieval requires a USB interface cradle.

The TRIL-8 ultra low temperature data logger comes with an integral temperature probe, designed for use in ultra low temperature freezers and in the repeated distribution of time temperature sensitive products in dry ice at -80°C.

Simply configure and reconfigure the TRIL-8 temperature data logger using the USB interface cradle and free issued LogTag analyser data logger software (see downloads section) and deploy the data logger directly into the cold chain shipping container or assigned location(s) within the ultra low temperature freezer.

When temperature monitoring is finished, a clear indication will be presented via the green and red flashing LED and a full audit can be extracted, verified and automatically distributed to assigned personnel. Rapid configuration, retrieval of collected data and analysis is performed using the free issued LogTag analyser software in conjunction with a USB interface cradle.



Specifications

Manufacturer

LogTag

Parameter(s)

Temperature

Usage Type

Multiple

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

1

Sensor type

Thermistor

Memory

8000

Sample rate

1 minute ~ 18 hours

Range

-80°C ~ +40°C

Accuracy

<+/- 1.7°C
Contact our calibration department for advice on offset adjustment.

Resolution

0.1°C between -80°C ~ 0°C

Material

Polycarbonate

Power

3.6v low temperature battery

Battery Life

1000hrs

Dimensions

86mm x 54.5mm x 8.6mm

Environment

IP65
NEMA 4

Operating Conditions

-80°C ~ +40°C
Suitable for use in dry ice shipment and ultra low temperature freezers

Alarm

Flashing LED and in report

Features

LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance

Computer Requirements

Windows PC

Compliance

RTCA/DO‐160G section 21 as category H
