TempSenTempod100XBLowTemperatureBluetoothDataLogger

By TempSen Data Loggers
£145.20

Overview

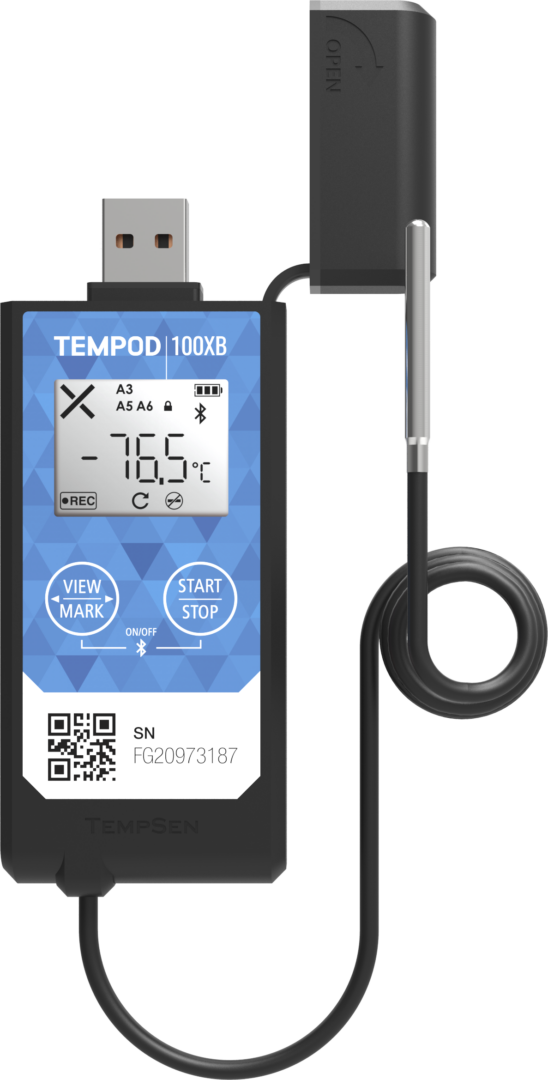

The Tempod 100XB is a wireless dry ice temperature data logger for -100°C ~ +70°C including external 1m RTD sensor. Features include Bluetooth for smartphone app, USB connection, PDF reporting. Supplied with certificate (-80, 0, +30°C)

Bluetooth and USB Direct

Automatically generate detailed PDF reports with the option to download data with TempSen Express© and TempSen Go© on Android and iOS.

LCD Display

The display allows immediate viewing of current and salient historical environmental events including the status of 5 alarm thresholds

Replaceable Battery

An inexpensive coin cell battery that can be sourced and replaced without special tools.

Information

Product Description

Discover the Tempod 100XB Bluetooth temperature data logger. This easy to use temperature monitoring device records data wirelessly to ensure the safety of temperature sensitive products.

Features of the Tempod 100XB data logger

The Tempod 100XB USB data logger is a technically advanced device that is suited for regular monitoring and periodic validation of ultra-low temperature (ULT) freezers. The external RTD probe is 1m in length, enabling this Tempod data logger to monitor extremely low temperature environments .

This low temperature data logger operates in temperatures down to -100°C and up to 70°C, while the data logger itself can withstand temperatures as low as -20°C.

TempSen have developed the Tempod 100XB temperature data logger to make it easier for clients with ever-moving logistics to monitor. It is supplied with a replaceable battery and a robust USB connector and casing. Download the Tempsen Go App on your smartphone to access data anywhere, anytime, with flight mode to enable complete cold chain monitoring.

The Tempod 100XB Bluetooth data logger is ideal for products within dry ice such as pharmaceuticals, vaccines and food both in transit and throughout the cold chain process. Use an effective precaution to guarantee quality and prevent safety incidents.

Benefits and functionalities of the Tempod 100X Bluetooth data logger

  • Bluetooth connectivity

The Tempsen Go app is a data logging platform designed for smartphones that enables the user to search, connect, control and download data from the Tempsen 100XB data logger. Save data in your device and view graph and statistics, export files and send data to partners.

  • External 1m RTD temperature sensor

Enabling the low temperature data logger to monitor such cold environments

  • 3 point calibration

3 point NIST traceable calibration

  • PDF Data logger

The Tempod 100XB automatically generates encrypted PDF reports – no additional software is needed.

  • Heighted measurement accuracy

Measures at ±0.5°C for an accurate representation of temperature fluctuations.

  • Multiple alarm ranges

View temperature excursion statistics with up to 5 alarm ranges.

  • USB Connector

A built in USB connector enables connection to desktop computers with ease.

  • Password protection

Set a password to prevent unauthorised changes to the data logger.

  • Software free online configuration

The Tempod 100XB temperature data logger can be configured quickly and easily without specific software and is compatible with multiple platforms.

  • Time mark

If events have occurred that may affect temperature, they can be marked with the click of a button.

  • Repeat start

A button on the Bluetooth data logger allows a recording to restart with the latest configurations.

If you would like more information about the TempSen Tempod 100XB low temperature data logger, our team at Loggershop would be happy to help. Contact us by calling 01929 459459 or sending an email to [email protected]. Buy the Tempod 100XB Bluetooth data logger at Loggershop online.

Specifications

Manufacturer

Tempsen

Usage

Multi-use

Sensors

Temperature

Connectivity

USB
Bluetooth

Memory Capacity

28800 readings

Probe Measurement Range

-100°C ~ 70°C

Operating Range

-20°C ~ +70C

Accuracy

±0.5°C

Resolution

0.1°C

Start Mode

Manual / Auto / Temperature start

Logging Interval

1 minute ~ 2 hours

Logging Mode

Start/stop and repeat start

Alarm Ranges

High and low alarm / 5 alarm ranges

Battery

3.0V CR2450 lithium battery (Replaceable)

Battery Life

12 months typical

LCD Display Functions

•OK(√), Alarm(x), Running indicator
•Running status
•Temperature Statistics (max, min, avg)
•Remaining battery level
•Mark history

Automatic Data File

Encrypted PDF report
Embedded raw data

Software

21 CFR Part 11 compliant TempCentre Data Management Software

Dimensions

100mm L x 40mm W x 12mm H

Weight

Approx. 48g

Certification

CE
FCC
RTCA-DO160G
IATA PI970 II
RoHs
WEEE

Downloads

Instruction Manual

Software - Windows PC only

tempsenexpress-installer
EXE • 77MB
