ThermoVaultOvenDataLogger
By MadgeTech Data Loggers
Overview
Cost effective, single channel, high temperature recording (350°C)
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Calibration certificate
- Data Cable - Required for data download
- Spare Battery
- Software Upgrade
Rated for High °C
Deploy in environments up to 350 °C. for 30 minutes using supplied thermal shield and probe
Large memory
Collect up to 500K data points and download via USB interface module
Cost Effective
Utilises the free powerful Madgetech software for simple or in-depth analysis. Optional secure software is available for applications that require 21 CFR 11 compliance.
Information
Product Description
Please note: Requires IFC200 Interface and Software (see downloads section).
The Thermovault is a data logger used for over profiling and can with stand temperatures of 350°C for 30 minutes. (see table below)

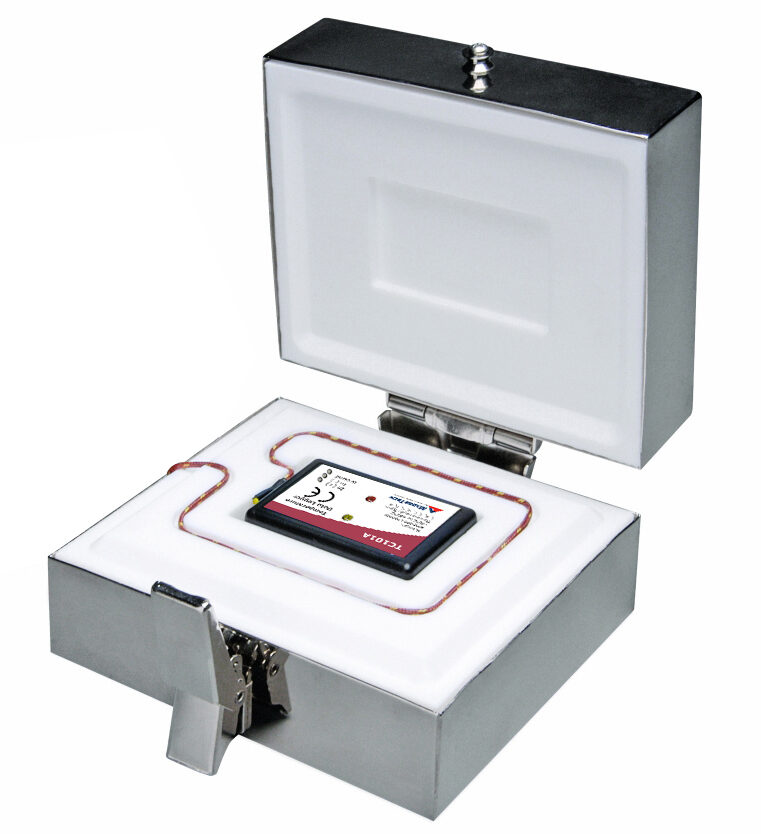

The data logger is pre programmed and placed in the thermal shield before being placed in the process to record the temperatures. The free easy to use software enables the start time and recording interval to be pre set and analysed once the process has been completed. Data can be shown in graphical or tabular format and exported in excel or PDF format for distribution.Optional secure software enables 21 CFR 11 compliance.
A fast recording rate of 4 reading per second makes Thermovault an excellent value high temperate validation and mapping instrument.
The Thermovault is commonly used for conveyor and batch ovens, powered coating and cure ovens as well as the food industry.
Time vs. Temperature Chart
| Ambient Temperature | Maximum Duration |
| 100 °C (212 °F) | 136 minutes |
| 125 °C (257 °F) | 100 minutes |
| 150 °C (302 °F) | 80 minutes |
| 175 °C (347 °F) | 66 minutes |
| 200 °C (392 °F) | 56 minutes |
| 225 °C (437 °F) | 49 minutes |
| 250 °C (500 °F) | 44 minutes |
| 275 °C (527 °F) | 39 minutes |
| 300 °C (572 °F) | 36 minutes |
| 325 °C (617 °F) | 32 minutes |
| 350 °C (662 °F) | 30 minutes |
Specifications
- Manufacturer
Madgetech
- Parameter(s)
Temperature
- Usage Type
Multi use
- Connectivity
USB via IFC200
- Sensor internal or external
External
- Channels
Single
- Sensor type
Thermocouple
- Memory
500,000 readings; software configurable memory wrap
250,000 readings in multiple start/stop mode- Sample rate
1 reading every second up to 1 reading every 24 hours
- Range
See specification sheet, time over temperature
- Accuracy
±0.25 °C
- Resolution
0.1°C
- Material
304 stainless steel w/ PTFE insulation
- Power
Battery 9V Lithium
- Battery Life
10 Years typical at a 15 minute reading rate
- Dimensions
165 mm x 63 mm x 63 mm
- Environment
See specifications sheet, 0 %RH to 95 %RH non-condensing
- Operating Conditions
See specifications sheet, 0 %RH to 95 %RH non-condensing
- Alarm
LED and In software reporting
- Features
Cost affective, high temperature, Large memory, single channel
Downloads
Product Brochure
Thermovault Datasheet WPLSPDF • 1 MB
Product Manual
ThermoVault Reference card WPLSPDF • 285 KB Thermovault User Guide WPLS
PDF • 428 KB
Software - Windows PC only
MadgeTech SoftwareZIP • 25MB
