TICTiSO°Tag3Yearfreezetemperatureindicator

By LogTag Data Loggers
£10.70

Overview

TICT iSO°Tag – 3 year Freeze temperature indicator with optional statistical electronic record keeping.

Pass/Fail LCD

Tick/cross indicates the status of monitored data against alarm threshold

36 month operation

min/max data collection for up to 3 yrs.

Alarm logging

Time stamped readings collected before and after alarm event.

Information

Product Description

Unique 3 year freeze indicator with clear indication of pass/reject on LCD display.  In the event that temperature sensitive products guarded by the free indicator are subjected to a 'reject' event, details leading up to, during and after the event can be extracted using the optional TICT/TIC20 interface. Evidence of compliance is established when saving summary data using the TICT/TIC20 interface (optional)

Key features

  • ‘Tick’/’Cross’ display shows temperature exposure below freezing point.
  • Collect daily minimum/maximum temperature statistics for up to 3 years.
  • Logged, time stamped recordings before & after alarm event.

The LogTag® TICT iS0°Tag® is a tamper-proof electronic indicator which shows if the temperature has been at or below freezing point (0°C or 32°F) for 60 minutes or more.

While the temperature remains above freezing point, the display shows a tick symbol. If the temperature drops below freezing point for 60 minutes or more, the display shows a cross symbol, which cannot be reset or deleted.

The TICT iS0°Tag® can be used to monitor the temperature of any freeze-sensitive product such as vaccine, food, or specialty chemicals for up to 3 years.

Statistical data can be downloaded using a dedicated LogTag® Interface Cradle and freely available LogTag® Analyzer software.

Please contact us on 01929 459459 to discuss volume and annual contract discounts.

Specifications

Measuring Range

-10°C~+25°C

Accuracy

+/- 0.5°C

Resolution

0.1°C

Sample interval

Factory pre-set between 5~15 minutes

Memory

1096 x Min/Max days.
Duration of excursion beyond alarm limits for each day.
Up to 270 recorded real time temperature values each before and after the alarm has triggered.

Alarm limits

1 upper and 1 lower temperature alarm threshold.

LCD

Alarms and temperature data on display

Compliance

21 CFR Part 11
FCC
CE
RoHS
WHO

Consider these alternatives

LogTag Data Loggers

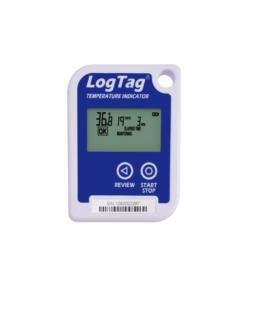

TIC20
