TR-76DataLoggerwithCo2,TemperatureandHumiditySensors

By T&D Data Loggers
£365.00

Overview

Co2, humidity and temperature USB TandD data logger for recording temperatures between 0 ~ 55°C, humidity values from 10~ 95% and Co2 from 0 ~ 9999 ppm.

Measurement Range

Temperature -30 to 80 °C, humidity 0 to 99% and 0 - 9999ppm CO2 via supplied sensors

Power Options

Battery for short term studies or use power adaptor for longer studies i.e. 83 days at 15 minute recording interval

Free Software

Connect via USB to setup and analysis software

Information

Product Description

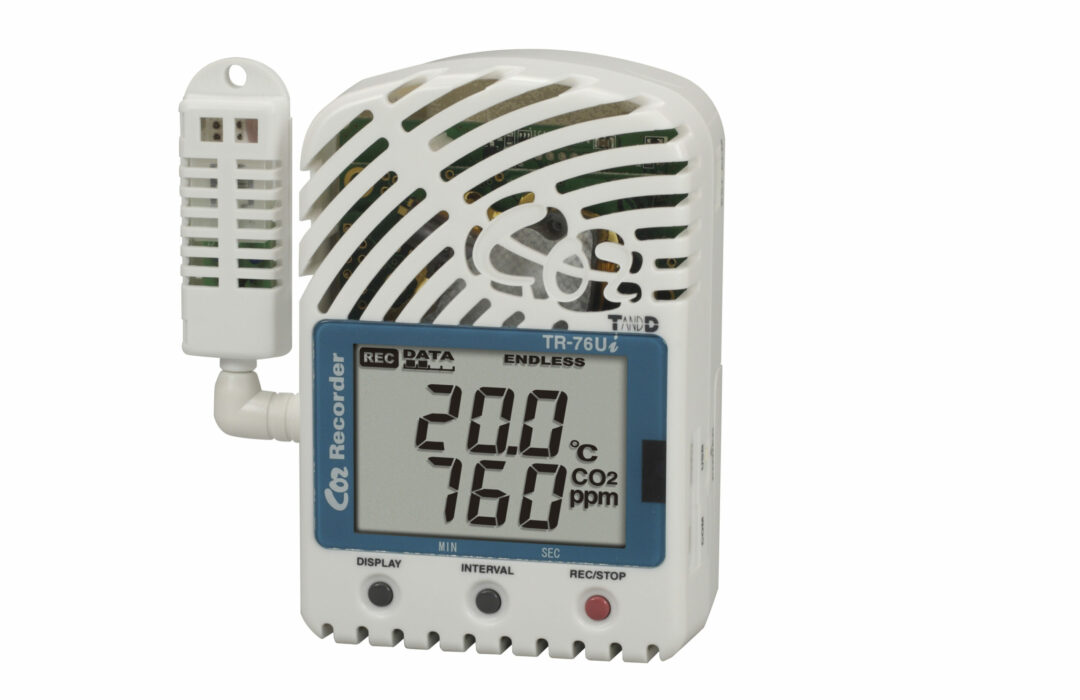

USB data logger including LCD display, supplied with integral Co2 sensor and interchangeable plug-in THA-3101 °C/rH sensor.

The TR-76UI can measure and record temperature data from 0 ~ 55°C, humidity values from 10 ~ 95% along with Co2 from 0 ~ 9999 ppm.

This is a building services solution, designed for measuring and recording working conditions. Please contact our sales team if you require either a device for safety or a Co2 incubator solution which are facilitated best with different technologies.

Supplied as standard with USB cable, free software, interchangeable THA-3151 and integral Co2 sensor, 4 x AA user replaceable batteries and mains power pack.

Features

  • Robust and durable design.
  • Accurate and can be recalibrated.
  • User replaceable battery.

Specifications

Manufacturer

TandD

Parameter(s)

Temperature
Humidity
Carbon Dioxide

Usage Type

Multiple Use

Connectivity

USB Interface

Sensor internal or external

Internal Co2
External temperature and humidity

Channels

3

Sensor type

Thermistor for temperature
Polymer resistance for humidity
NDIR sensor for Carbon Dioxide

Memory

8000 reading back-up memory

Sample rate

1 reading a second ~ 1 reading every hour

Range

0°C ~ +55°C
10 ~ 95% rH
0 ~ 9999 ppm

Accuracy

+/- 0.5°C Temperature
+/- 0.5% Humidity
+/- 5% of reading Co2
Contact our calibration department for advice on offset adjustment.

Resolution

0.1 °C
1% rH
1 ppm

Material

ABS Plastic

Power

User replaceable batteries
Mains power pack

Battery Life

2 days

Dimensions

96mm x 66mm x 46mm with 60mm antenna

Operating Conditions

0°C ~ +45°C

Features

Robust and durable design
Accurate and can be recalibrated
User replaceable battery
