uSric-8 Data logger

From: £18.21

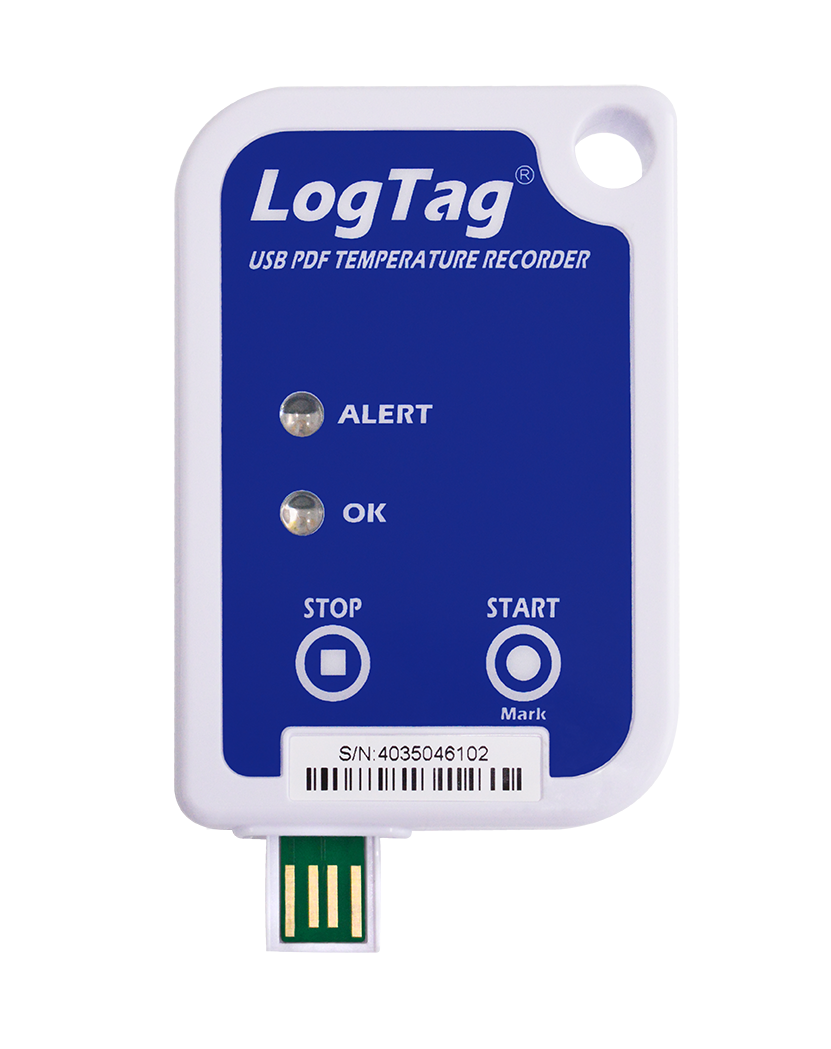

The uSric-8 data logger is a user configurable, single use temperature data logger with 8000 measurement points, start/stop button, direct USB connection and PDF reporting.









Options

QuantityPriceYou Save
10+£17.305%
25+£16.3910%
1+£18.210%

Product Description

The uSric-8 is a user configurable, single use temperature data logger with direct USB connectivity and automated PDF reporting function. It is ideally suited to supply chain monitoring and validation exercises where the recipient of the shipment needs to review collected data without requiring a bespoke interface or having to install propriety software.

A simple solution for shipments

Anybody shipping time temperature sensitive products will need to verify acceptable environmental conditions were maintained throughout the journey, the user configurable uSric-8 data logger delivers a simple, high quality and cost effective solution.

Although LogTag data logger software is required to configure the data logger it is not needed to create finished PDF reports.  Optional analysis can be performed in LogTag Analyzer software (see the downloads section), plotting saved data in graphical, tabular, statistical formats and cross referencing multiple plots on one time line.

Supplied with USB cap, instructions, 2nd label for shipping labels and LogTag Analyzer data logger software.

Manufacturer

LogTag

Parameter(s)

Temperature

Usage Type

Single

Connectivity

Direct USB

Sensor internal or external

Internal

Channels

1

Sensor type

Digital

Memory

8001

Sample rate

1 minute ~ 6 hours

Range

-30°C ~ +60°C

Accuracy

< +/- 0.5°C between -5 and +30°C

Resolution

0.1°C between -15°C and + 55°C

Material

Polycarbonate

Power

Battery

Battery Life

4320 hours in operation
17520 hours on the shelf

Dimensions

93mm x 54.5mm x 8.6mm

Environment

IEC 60529, IP64 with USB cap fitted

Operating Conditions

-25°C ~ +60°C

Alarm

LED and in post analysis report

Features

Direct USB connection
PDF reporting
Detailed analysis and automated data distribution
User configurable
21 CFR Part 11 and Annex 11 compliant

Computer Requirements

Windows PC

Compliance

RTCA/DO‐160G section 21 as category H

Product Brochure
LogTag USRIC-8 Brochure WPLSPDF5 MB
Instruction Manual
LogTag USRIC-8 User Guide WPLSPDF2 MB
USB Quick Start Guide WPLSPDF3 MB
Software
LogTag LTAnalyzer SoftwareEXE55MB
