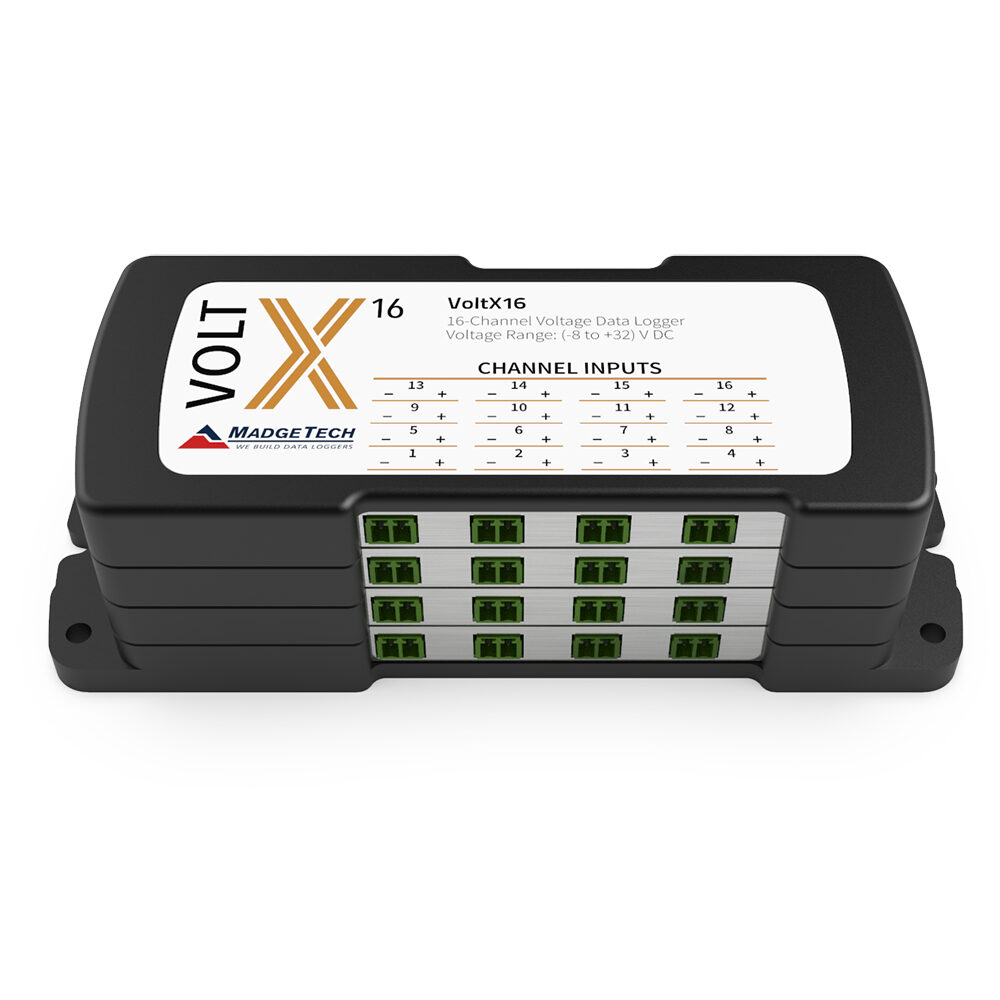

The MadgeTech VoltX voltage data logger is available with 4, 8, 12 and 16 inputs, supplied with calibration certificate, USB cable and power supply.
Part of a suite of products designed to work as a complete monitoring system
Measures
Voltage data, available in ranges from -160mVDC to +32 VDC and in 4/8/12 and 16 channel formats
Large memory
Collect up to 1M data points and download via direct USB connection
Cost Effective
Utilises the free powerful Madgetech software for simple or in-depth analysis. Optional secure software is available for applications that require 21 CFR 11 compliance.
The MadgeTech VoltX voltage data logger is a fantastic solution for collecting accurate voltage data and meet regulatory compliance. This multi channel data logger is available with 4 different input options, depending on your requirements (4, 8, 12 or 16). It is also available in three measurement ranges, either 160mV, 3.2v or 32V. With quick and easy set-up and an 18 month battery life, this data logger makes voltage monitoring a seamless process. All it takes is simply connecting your sensors/outputs into the three wire screw terminals.
This voltage data logger and recorder is designed to deliver robust and user friendly data logging, with a measurement range of -20°C to +60°C. It boasts a large memory capacity and can collect up to 2,794,836 readings for either short or prolonged periods or durations. No interface is required; this voltage data recorder uses simple USB connection.
The MadgeTech VoltX data logger is compatible with the free MT4 software, which allows users to access data and create reports straight away. Data can be viewed in either graphical or tabular formats for your ease.
The VoltX data logger is equipped with all you need to effectively record voltage data:
For more information about this voltage data logger, get in touch with our friendly team at Loggershop. Call 01919 459459 or email [email protected].
Madgetech
Voltage
Multi use
USB-A to micro USB cable (included); 460,800 baud
VoltX4 | 4 -Channel Current Data Logger
VoltX8 | 8 -Channel Current Data Logger
VoltX12 | 12 -Channel Current Data Logger
VoltX16 | 16 -Channel Current Data Logger
4-channel: 698,709 readings per channel
8-channel: 349,354 readings per channel
12-channel: 232,903 readings per channel
16-channel: 174,677 readings per channel
4 readings a second up to 1 reading every 24 hours
Model Range
160mV ± 160mV
3.2V ± 3.2V
32V -8V to +32V
Model Accuracy
160mV ±0.032 mV
3.2V ±0.0032 V
32V ±0.02 V
Model Resolution
160mV 0.02 mV
3.2V 0.0004 mV
32V 0.004 mV
Model
160mV +3 V
3.2V +50 V
32V +50 V
Anodized aluminium
Battery 9V lithium
Or mains supply via supplied power adaptor
1 year typical
4-channel: 65.6 mm x 184.2 mm x 31.0 mm
8-channel: 65.6 mm x 184.2 mm x 31.0 mm
12-channel: 65.6 mm x 184.2 mm x 42.7 mm
16-channel: 65.6 mm x 184.2 mm x 54.4 mm
-20°C to +60°C
IP54
In software
Supplied with calibration certificate
