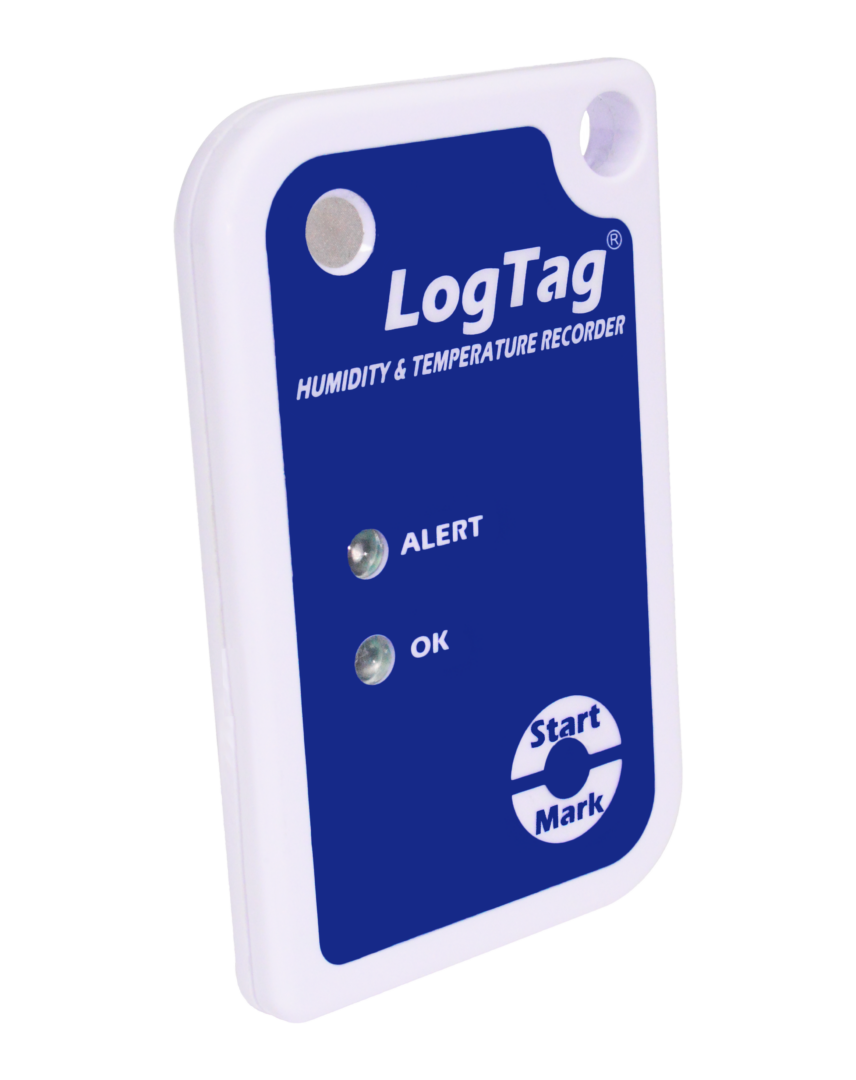

HAXO-8

HAXO-8 Data Logger

By LogTag Data Loggers

From: £60.38

Choose the LogTag HAXO-8 humidity and temperature data logger with integral sensors, 8000 paired reading memory and LED alarm.

Product Description

Please note: The Logtag USB interface cradle is required to operate the HAXO-8 data logger.

The HAXO-8 data logger is a cost effective battery powered humidity and temperature data logger.

It samples and records 8000 humidity and 8000 temperature data points against time for evaluation. Use with the free LogTag Analyzer software (see downloads section) and the LTI-HID interface cradle for simple and rapid batch configuration, download and analysis.

The HAXO-8 data logger is ideally suited for dampness studies and can be used to verify humidity and temperature levels in residential environments. This can help pin point the source of a problem and resolve complaints concerning condensation. Deploy multiple HAXO-8 data loggers to map storage conditions that can have a detrimental impact on packaging and products in warehouses and cold stores. Then, analyse the collected time vs. humidity and temperature data.

Supplied with fixed 3v battery.



Manufacturer

LogTag

Parameter(s)

Temperature
Humidity

Usage Type

Multiple Use

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

2

Sensor type

Thermistor
Polymer

Memory

8000 Temperature readings
8000 Humidity readings

Sample rate

30 seconds ~ 60 minutes

Range

-40°C ~ +85°C
0 ~ 100% rH

Accuracy

+/- <0.5°C between 0°C and +50°C +/- <5% between 10 and 80% rH Contact our calibration department for advice on offset adjustment.

Resolution

0.1°C
0.1% rH

Material

Polycarbonate

Power

3V fixed battery

Battery Life

365 ~ 900 days

Dimensions

86mm (H) x 54.5mm (W) x 8.6mm (T)

Environment rating

IP61

Operating Conditions

-40°C ~ +85°C

Alarm

Flasing LED and in report

Features

LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance
EN12830
WHO PQS EO6/06: PQS Code E006/00

Computer Requirements

Windows PC

Compliance

RTCA/DO‐160G section 21 as category H

Product Brochure
LogTag HAXO-8 Brochure WPLSPDF5 MB
Instruction Manual
LogTag Quick Start Guide WPLSPDF295 KB
HAXO-Quick Start Guide WPLSPDF293 KB
Software
LogTag LTAnalyzer SoftwareEXE55MB

Product Description

Please note: The Logtag USB interface cradle is required to operate the HAXO-8 data logger.

The HAXO-8 data logger is a cost effective battery powered humidity and temperature data logger.

It samples and records 8000 humidity and 8000 temperature data points against time for evaluation. Use with the free LogTag Analyzer software (see downloads section) and the LTI-HID interface cradle for simple and rapid batch configuration, download and analysis.

The HAXO-8 data logger is ideally suited for dampness studies and can be used to verify humidity and temperature levels in residential environments. This can help pin point the source of a problem and resolve complaints concerning condensation. Deploy multiple HAXO-8 data loggers to map storage conditions that can have a detrimental impact on packaging and products in warehouses and cold stores. Then, analyse the collected time vs. humidity and temperature data.

Supplied with fixed 3v battery.



Manufacturer

LogTag

Parameter(s)

Temperature
Humidity

Usage Type

Multiple Use

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

2

Sensor type

Thermistor
Polymer

Memory

8000 Temperature readings
8000 Humidity readings

Sample rate

30 seconds ~ 60 minutes

Range

-40°C ~ +85°C
0 ~ 100% rH

Accuracy

+/- <0.5°C between 0°C and +50°C +/- <5% between 10 and 80% rH Contact our calibration department for advice on offset adjustment.

Resolution

0.1°C
0.1% rH

Material

Polycarbonate

Power

3V fixed battery

Battery Life

365 ~ 900 days

Dimensions

86mm (H) x 54.5mm (W) x 8.6mm (T)

Environment rating

IP61

Operating Conditions

-40°C ~ +85°C

Alarm

Flasing LED and in report

Features

LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance
EN12830
WHO PQS EO6/06: PQS Code E006/00

Computer Requirements

Windows PC

Compliance

RTCA/DO‐160G section 21 as category H

Product Brochure
LogTag HAXO-8 Brochure WPLSPDF5 MB
Instruction Manual
LogTag Quick Start Guide WPLSPDF295 KB
HAXO-Quick Start Guide WPLSPDF293 KB
Software
LogTag LTAnalyzer SoftwareEXE55MB
