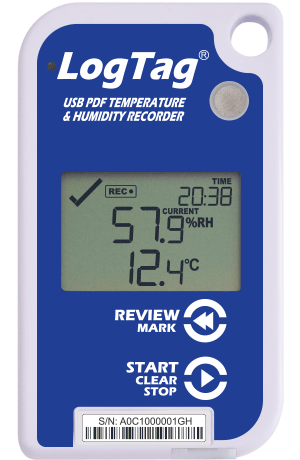

UHADO-16 Temperature and Humidity

Product coming soon

Product Description

Release date: August/September 2019

LogTag recorders presents the much anticipated UHADO-16 temperature and humidity data logger, ideally suited to static and transportation monitoring and validation exercises.

Building on the proven reliability of the well established robust and reliable HAXO-8, adding functions and features included in the latest USB temperature offerings.

The introduction of an informative LCD display enables users to review salient data at appliance/room/package level before the temperature and humidity data is downloaded and analysed.

User replaceable battery; indefinitely prolongs the life span of the data logger.  Simply remove the back, remove the old battery and slot in a new CR2032 once a year as a precaution.

USB connectivity; Although compatible with our favoured LogTag USB  cradle (Working with lots of LogTag data loggers is a breeze when using these) the UHADO-16 can be setup  and downloaded without a bespoke USB interface, the data logger is supplied with all that you need to connect it to a computer.

Long recording duration:  The large memory enables users to apply a configuration profile to record temperature and humidity data for up to 320  days at 30 minute intervals, minimising the time between compulsory downloads.

WiFi bracket compatible: Users needing real-time data or a solution which does not require a user to physically retrieve a data logger for data extraction can use the UHADO-16 in conjunction with the optional WiFi bracket to automate data retrieval and trigger email alarms.

Supplied with free software, computer connectivity and a battery for out of the box data logging!

Manufacturer

LogTag

Parameter(s)

Temperature
Humidity

Usage Type

Multiple Use

Connectivity

USB input integral to data logger
USB via USB cradle
WiFi via optional interface or cradle

Sensor internal or external

internal

Channels

2

Sensor type

Thermistor
Polymer

Memory

16'000 Temperature readings
16'000 Humidity readings

Sample rate

30 seconds ~ several hours

Range

-30°C ~ +70°C
0 ~ 100% rH (With limitations)

Accuracy

+/- 2% between 15~85%rH @ 25°C
+/- 0.4°C between -5~+50°C
[Please consult tables in the Product Brochure for more information]

Resolution

0.1°C
0.1%rH

Material

Polycarbonate

Power

User replaceable CR2032 coin cell battery

Dimensions

93mm(H) x 54.5mm(W) x 8.6mm(T)

Environment rating

IP61

Operating Conditions

-30°C ~ +70°C
0 ~ 100% rH (With limitations)

Alarm

Details present on LCD, in report and via email if used in conjunction with optional WiFi accessories.

Computer Requirements

Windows PC running installable LogTag Analyzer software

Features

• Record and display Temperature & Humidity readings simultaneously
• Up to 16,000 sets of recordings - enough for the longest trip
• Real time clock provides date/time stamp for every recording
• USB micro-port for direct connection to a computer
• Automatic generation of a PDF report without special software
• Contact pins allow connection to LogTag Interfaces, including WiFi type
• User configuration for alarm setting, logging interval, trip duration etc.
• In transit inspections can be recorded at the push of a button
• User replaceable CR2032 lithium coin cell battery

Product Brochure
LogTag_UHADO-16_Brochure_WPLS PDF 1 MB
Software
LogTag LTAnalyzer Software EXE 55MB

Product Description

Release date: August/September 2019

LogTag recorders presents the much anticipated UHADO-16 temperature and humidity data logger, ideally suited to static and transportation monitoring and validation exercises.

Building on the proven reliability of the well established robust and reliable HAXO-8, adding functions and features included in the latest USB temperature offerings.

The introduction of an informative LCD display enables users to review salient data at appliance/room/package level before the temperature and humidity data is downloaded and analysed.

User replaceable battery; indefinitely prolongs the life span of the data logger.  Simply remove the back, remove the old battery and slot in a new CR2032 once a year as a precaution.

USB connectivity; Although compatible with our favoured LogTag USB  cradle (Working with lots of LogTag data loggers is a breeze when using these) the UHADO-16 can be setup  and downloaded without a bespoke USB interface, the data logger is supplied with all that you need to connect it to a computer.

Long recording duration:  The large memory enables users to apply a configuration profile to record temperature and humidity data for up to 320  days at 30 minute intervals, minimising the time between compulsory downloads.

WiFi bracket compatible: Users needing real-time data or a solution which does not require a user to physically retrieve a data logger for data extraction can use the UHADO-16 in conjunction with the optional WiFi bracket to automate data retrieval and trigger email alarms.

Supplied with free software, computer connectivity and a battery for out of the box data logging!

Manufacturer

LogTag

Parameter(s)

Temperature
Humidity

Usage Type

Multiple Use

Connectivity

USB input integral to data logger
USB via USB cradle
WiFi via optional interface or cradle

Sensor internal or external

internal

Channels

2

Sensor type

Thermistor
Polymer

Memory

16'000 Temperature readings
16'000 Humidity readings

Sample rate

30 seconds ~ several hours

Range

-30°C ~ +70°C
0 ~ 100% rH (With limitations)

Accuracy

+/- 2% between 15~85%rH @ 25°C
+/- 0.4°C between -5~+50°C
[Please consult tables in the Product Brochure for more information]

Resolution

0.1°C
0.1%rH

Material

Polycarbonate

Power

User replaceable CR2032 coin cell battery

Dimensions

93mm(H) x 54.5mm(W) x 8.6mm(T)

Environment rating

IP61

Operating Conditions

-30°C ~ +70°C
0 ~ 100% rH (With limitations)

Alarm

Details present on LCD, in report and via email if used in conjunction with optional WiFi accessories.

Computer Requirements

Windows PC running installable LogTag Analyzer software

Features

• Record and display Temperature & Humidity readings simultaneously
• Up to 16,000 sets of recordings - enough for the longest trip
• Real time clock provides date/time stamp for every recording
• USB micro-port for direct connection to a computer
• Automatic generation of a PDF report without special software
• Contact pins allow connection to LogTag Interfaces, including WiFi type
• User configuration for alarm setting, logging interval, trip duration etc.
• In transit inspections can be recorded at the push of a button
• User replaceable CR2032 lithium coin cell battery

Product Brochure
LogTag_UHADO-16_Brochure_WPLS PDF 1 MB
Software
LogTag LTAnalyzer Software EXE 55MB
