RFTCTemp2000A USB and Wireless Thermocouple Temperature Data Logger

From: £215.00



Thermocouple temperature USB or wireless radio data logger

Quantity Price You Save
1+ £215 0%
5+ £202.10 6%
11+ £197.80 8%
30+ £184.90 14%
50+ £182.75 15%
100+ £176.30 18%

Product Description

Thermocouple data logger, compatible with any J/K/T/E/R/S/B/N type temperature sensor, fitted with a mini plug.

Battery or mains powered data logger that can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD and trigger local audible/visual alarms and connect to a USB computer for periodic analysis.  If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeaters.

This thermocouple data logger boasts a second internal temperature sensor, allowing users to insert a probe into product whilst recording ambient temperature, making it an ideal solution for fridge monitoring.  Knowing the ambient temperature is key in conducting a risk assessment when a refrigerated appliance fails.

Hardware Features

  • USB and Wireless connectivity
  • Temperature data logger
  • Email and audible alarms
  • LCD display
  • Battery or optional mains power supply.
  • Cloud services compatibility

Suitable for.

  • Ambient versus product temperature
  • Oven monitoring
  • Autoclave validation
  • Recording thermocouple data

MT4 standard software Features

  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with:  Connector for wiring to a sensor, battery, mounting/stand bracket , MT4 software and USB cable.

Requires: Thermocouple temperature sensor with mini plug connector

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adapter
Manufacturer

Madgetech

Parameter(s)

Temperature

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

External

Channels

2 channel, internal and external

Sensor type

External thermocouple

Memory

16,128 readings per channel

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

External channel : -200 ~ + 1300°C (K type thermocouple)
Internal channel : -20 ~ 60°C

Accuracy

External channel : 0.5°C
Internal channel : calibrated 0.1°C

Resolution

0.1°C

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

3 years typical at a 1 minute reading rate

Dimensions

76.2 mm x 88.9 mm x 24.1 mm

Environment

-20 °C to ~ 60 °C

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless , email & audible alarms, 21 CFR 11, LCD display, battery or mains powered

Product Brochure
RFTCTemp2000A Data Sheet WPLS PDF 1,004 KB
MadgeTech_Warehouse_Brochure_WPLS PDF 3MB
Instruction Manual
RFTCTemp2000A User Guide WPLS PDF 1 MB

Product Description

Thermocouple data logger, compatible with any J/K/T/E/R/S/B/N type temperature sensor, fitted with a mini plug.

Battery or mains powered data logger that can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD and trigger local audible/visual alarms and connect to a USB computer for periodic analysis.  If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeaters.

This thermocouple data logger boasts a second internal temperature sensor, allowing users to insert a probe into product whilst recording ambient temperature, making it an ideal solution for fridge monitoring.  Knowing the ambient temperature is key in conducting a risk assessment when a refrigerated appliance fails.

Hardware Features

  • USB and Wireless connectivity
  • Temperature data logger
  • Email and audible alarms
  • LCD display
  • Battery or optional mains power supply.
  • Cloud services compatibility

Suitable for.

  • Ambient versus product temperature
  • Oven monitoring
  • Autoclave validation
  • Recording thermocouple data

MT4 standard software Features

  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with:  Connector for wiring to a sensor, battery, mounting/stand bracket , MT4 software and USB cable.

Requires: Thermocouple temperature sensor with mini plug connector

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adapter
Manufacturer

Madgetech

Parameter(s)

Temperature

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

External

Channels

2 channel, internal and external

Sensor type

External thermocouple

Memory

16,128 readings per channel

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

External channel : -200 ~ + 1300°C (K type thermocouple)
Internal channel : -20 ~ 60°C

Accuracy

External channel : 0.5°C
Internal channel : calibrated 0.1°C

Resolution

0.1°C

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

3 years typical at a 1 minute reading rate

Dimensions

76.2 mm x 88.9 mm x 24.1 mm

Environment

-20 °C to ~ 60 °C

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless , email & audible alarms, 21 CFR 11, LCD display, battery or mains powered

Product Brochure
RFTCTemp2000A Data Sheet WPLS PDF 1,004 KB
MadgeTech_Warehouse_Brochure_WPLS PDF 3MB
Instruction Manual
RFTCTemp2000A User Guide WPLS PDF 1 MB

Similar Products

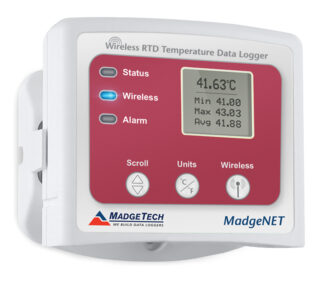

  • RFRTDTemp2000A USB and Wireless PT100 Temperature Data Logger

    4 wire PT100 temperature USB or wireless radio data logger.

    From £215.00

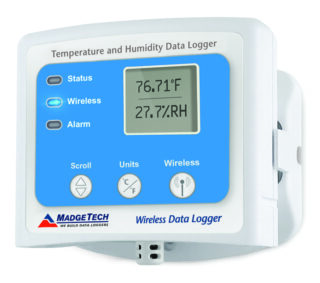

  • RFRHTemp2000A USB and Wireless Humidity Temperature Data Logger
