By MadgeTech Data Loggers


Now with WiFi connectivity! The TitanS8 touch screen data logger by MadgeTech has 8 channels, is portable and combines industrial toughness with scientific accuracy. The Titan S8 can be used as a standalone data logger due to its versatility and ability to measure current, voltage, temperature and pulse in real time.

Universal Inputs

Connect and record 8 °C, mA, mV, V and frequency inputs

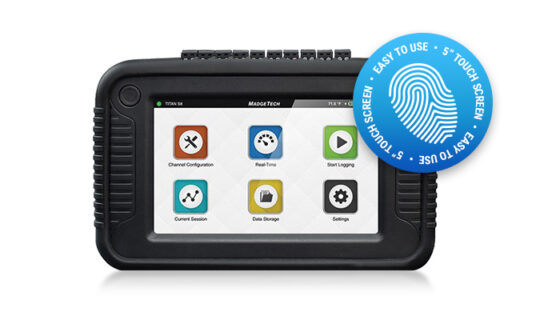

Touch Screen

Self contained data logger with analysis and internal/external data storage

Durable user definable recording

4KHz - 10Hz 1 min - 24 hours"


Product Description

Easily gain remote access to the Titan S8 through any web browser by using the IP address provided in the device settings. While the Titan S8 is in use, the remote user interface will show the current screen including any real-time readings being recorded. Users will also be able to navigate the device through the interface, providing complete control over functions without physically interacting with it.

Additionally, the remote user interface is capable of downloading current and past data for further analysis. Downloaded data can be saved as a MadgeTech file, making the data easy to import into the MadgeTech 4 Software to be viewed and for further analysis.

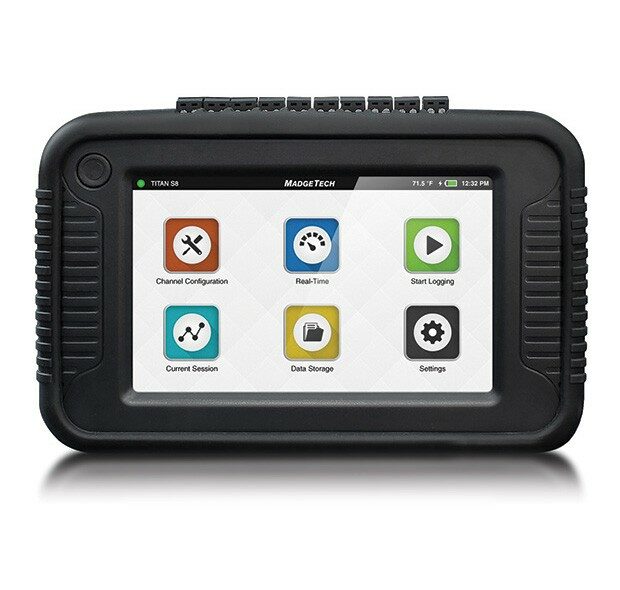

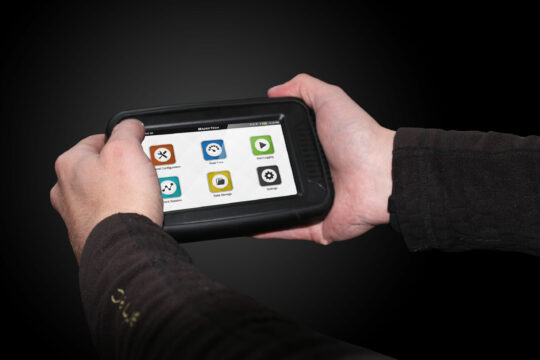

The MadgeTech Titan S8 touch screen data logger is a portable, multi-use industrial data logger with eight probe channels and a user-friendly touchscreen interface. The Titan S8 is a complete all in one solution, unlike many other data loggers, it does not require a PC or downloaded software to work. The touch screen allows the user to see their historic data at the touch of a button, including:

  • Display rotation
  • Real time data visualization
  • On screen alerts
  • Wiring diagram
  • On screen keyboard
  • Built in troubleshooting
  • Language translation

This versatile, portable data logger supports thermocouple, RTD or thermistor temperature probes to measure current, voltage, temperature and pulse in real time. This adaptability and power make Titan S8 the perfect companion for any industrial engineer, quality assurance professional, compliance officer or automotive technician.

The technology  used in the Titan S8 is comprised of:

  • 8 Input channels
  • USB, WiFi and internet data download (LAN connection via adaptor, not supplied)
  • 1GB of internal memory to store up to 180,000,000 readings
  • Engineering units
  • No required software
  • Rechargeable battery





Rechargeable battery: 10 hours continuous use
Mains power


168.9mm x 111.8 x 35.8mm
5" touch screen


Integral TPE protective boot

Recording rate

• 4 KHz ~ 10Hz - Single channel mV/V/mA
• 4 Hz
• 1 Second
• 2 Seconds
• 5 Seconds
• 10 Seconds
• 15 Seconds
• 30 Seconds
• 1 Minute
• 2 Minutes
• 5 Minutes
• 10 Minutes
• 15 Minutes
• 30 Minutes
• 1 Hour
• 2 Hours
• 5 Hours
• 10 Hours
• 12 Hours
• 24 Hours

Temperature rating


Humidity rating


Current measuring range

Resolution: 0.0001mA
Accuracy: +/-0.024mA
Input impedance: 30 Ohm

mV measuring range

Range: -100mV ~ 2450mV
Resolution: 0.0001mV
Accuracy: +/- 0.1mV (0~100mV)
Input impedance: 1 GOhm
Maximum voltage: 3V

Voltage measuring range

Range: -0.5V~ 12V
Resolution: 0.0001V
Accuracy: +/- 0.01V (-0.5V~12V)
Input impedance: 1 GOhm
Maximum voltage: 25V

PT100 Temperature measuring range and specification

3 wire
Range: -25°C~+850°C
Resolution: 0.01°C
Accuracy: 0.1°C

Frequency/Pulse measuring range and specification

Maximum count: 4,000,000,000
Maximum frequency: 25KHz
Input signal: 0~12V
Impedance: 58 KOhm

Thermocouple type and range

Type J -200°C to +760 °C
Type K -270 °C to +1370 °C
Type T -270 °C to +400 °C
Type E -270 °C to +980 °C
Type R -50 °C to +1760 °C
Type S -50 °C to +1760 °C
Type B +50 °C to +1820 °C
Type N -270 °C to +1300 °C
