TREX-8ExternalTemperatureDataLogger
By LogTag Data LoggersOverview

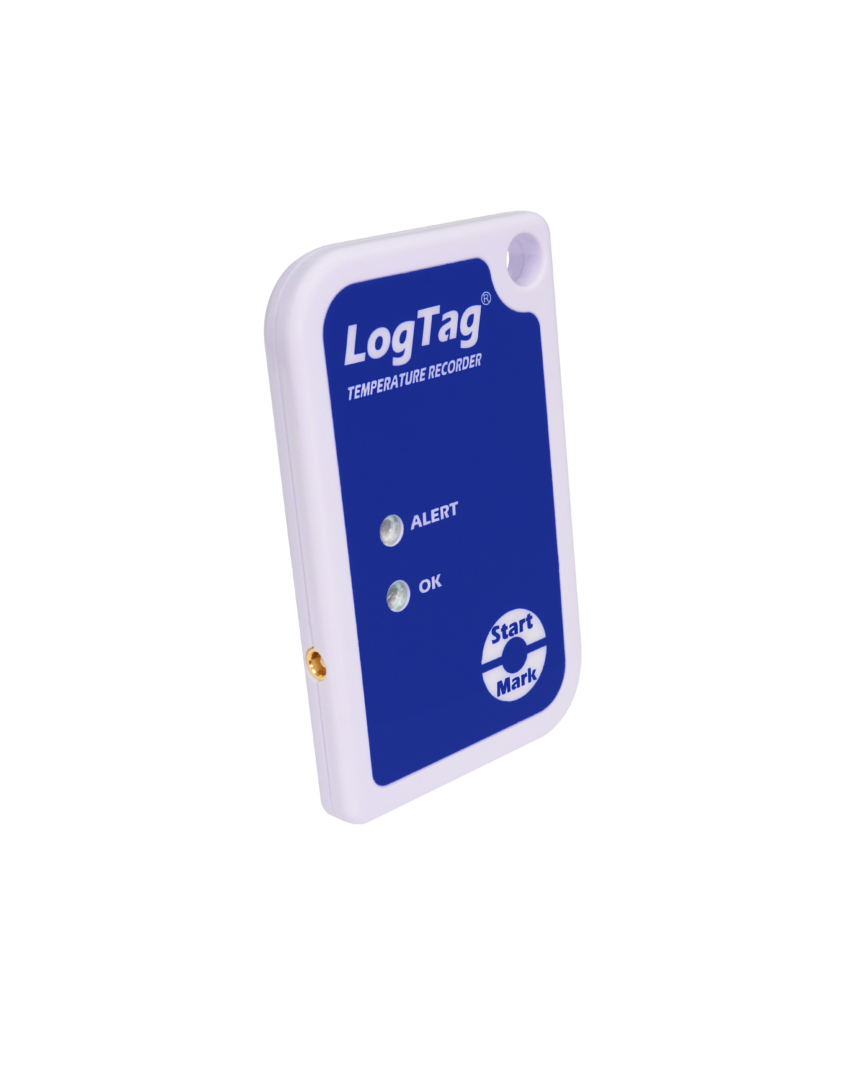

The TREX-8 temperature data logger by LogTag features a gold plated connector for interchangeable external probe temperature sensors to collect high resolution temperature readings from -40°C to +99°C. Temperature probe options include thermal dampeners to enable vaccine storage monitoring, bare and stainless steel tips and 1.5 or 3M cable lengths. Requires USB cradle for configuration and data retrieval.
Customise this datalogger
Part of a suite of products designed to work as a complete monitoring system
- Select probe option
- Calibration certificate
- Cradle - Required to download data
- Bracket
Visual Alarm
Green and red lights indicate if collected data is in or out of the user defined (acceptable) limits
Well specified
-40 to + 99 °C measuring range, 8000 readings, 30 sec ~ 60 min sample rate.
Remote Probe
Interchangeable external probe socket with high quality connector
Information
Product Description
Please Note: This data logger requires a LogTag USB cradle and a LogTag external temperature probe.
The TREX-8 is a cost-effective temperature data logger is ideal for measuring several data ranges due to the variety of temperature sensors available. It features the industries best download time with up to 3 years battery life, ‘OK’ and ‘ALERT’ indicators with high and low customisable alarms. Choose from 10 PTFE external sensor probe options to record up to 8,000 temperature readings and extract or analyse data with ease using the LogTag USB cradle and data logger software.
Guidance for using the TREX-8 for vaccine temperature monitoring
Dampen temperature response times with the thermal dampener, a clean and adaptable alternative to traditional Glycol buffers. Following the guidance of the Centres for Disease Control and Prevention, LogTag created the probe dampener to help in simulating the temperature of vaccine stored within fridges. Buffering the temperature readings helps to avoid collecting transient temperature spikes caused by opening and shutting doors and the oscillation of fans inside fridges used to control temperature. The dampener, when used in conjunction with standard operating procedures outlined in the CDC guidance document will help with vaccine storage routines an minimise alarms and impact on product quality.
TREX-8 features
The TREX-8, used in conjunction with a temperature sensor is suited to applications requiring high quality, low cost measurement of air, liquids, tight spaces or surfaces temperature over the range -40 to +99°C.
The LogTag TREX-8 temperature data logger offers faster configuration and download speeds than direct USB equivalents along with user defined ‘batch profile’ configurations that incorporate recording intervals and alarm thresholds.
Specifications
- Manufacturer
LogTag
- Parameter(s)
Temperature
- Usage Type
Multiple Use
- Connectivity
USB via interface
- Sensor internal or external
External
- Channels
1
- Sensor type
Thermistor
- Memory
8031 Temperature readings
- Sample rate
30 seconds ~ 60 minutes
- Operational Range
-40°C ~ +85°C
- Measuring Range
-40°C ~ +99°C
- Accuracy
With recorder case sitting in environmental temperature between 0°C ~ 50°C the rated accuracy is:
Better than ±0.5°C for -10°C~ +40°C
Better than ±0.7°C for -10°C~ -30°C & +40°C~+60°C
Better than ±0.8°C for -30°C~ -40°C & +60°C~+80°C
Better than ±1.0°C for +80°C~+99°C- Resolution
< 0.1°C for -40°C ~ +40°C,
< 0.2°C for +40°C ~ +80°C- Material
Polycarbonate
- Power
3V fixed battery
- Battery Life
900 days
- Dimensions
86mm (H) x 54.5mm (W) x 8.6mm (T)
- Environment rating
IP61
- Alarm
Flashing LED and in report
- Features
LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance- Computer Requirements
Windows PC
- Compliance
RTCA/DO‐160G section 21 as category H
