TRIX-8

TRIX-8 Data Logger

£17.00£62.00

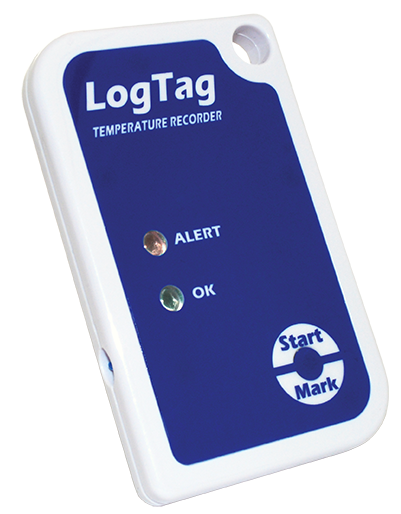

The LogTag TRIX-8 is the best value temperature data logger on the market. It contains an Integral temperature sensor housed within robust casing with a 8000 reading memory and clear LED alarm.

Quantity Price You Save
1+ £17 0%
10+ £16.15 5%
25+ £15.30 10%
50+ £14.88 12.5%

Product Description

The TRIX-8 temperature data logger is an established standard for the reliable collection of temperature data whilst keeping costs to a minimum. It can also be used in routine supply chain validation and in static semi permanent applications.

The LogTag data logger records 8000 time stamped temperature readings for audit and analysis, with clear visual indication of alarm status. Bright green and red flashing lights indicate if the collected data is in or out of acceptable temperature thresholds. The unique integral, exposed temperature sensor ensures that the correct environmental temperatures are measured and recorded.

The LogTag Trix-8 is used extensively throughout the NHS healthcare for monitoring temperatures in fridges, freezers and incubators. It is also ideal for generating a temperature mapping survey of building or storage conditions that impact on workers or time temperature sensitive products.

The LogTag TRIX-8 has a robust IP65 design (IP67 with protective enclosure) and is the same size as your credit card and still thin enough to be mailed in the post. Use the USB cradle and free LogTag Analyzer data logger software for a simple and rapid batch configuration, download and analysis.

Every data logger has a mounting lug which enables the data logger to be held in place at different heights on racking or shelves. The optional wall mounting bracket  offers a practical and aesthetically pleasing solution for semi permanent monitoring applications. Once you have issued the LogTag with a name, the bracket can be labelled with the same name, ensuring the correct data logger is returned to the correct position.

Supplied with fixed 3v battery.

Note: USB interface cradle is required to operate the TRIX-8.

Manufacturer

LogTag

Parameter(s)

Temperature

Usage Type

Multiple Use

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

1

Sensor type

Thermistor

Memory

8000 Temperature readings

Sample rate

30 seconds ~ 60 minutes

Range

-40°C ~ +85°C

Accuracy

+/- <0.5°C between -20°C and +40°C Contact our calibration department for advice on offset adjustment.

Resolution

0.1°C

Material

Polycarbonate

Power

3V fixed battery

Battery Life

365~900 days

Dimensions

86mm (H) x 54.5mm (W) x 8.6mm (T)

Environment rating

IP65
IP67 when used in conjunction with the protective enclosure

Operating Conditions

-40°C ~ +85°C

Alarm

Flashing LED and in report

Features

LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance
EN12830
WHO PQS EO6/06: PQS Code E006/00

Computer Requirements

Windows PC

Product Brochure
TRIX8 Product Brochure WPLS PDF 1 MB
Instruction Manual
LogTag Quick Start Guide WPLS PDF 295 KB
TRIX-TREX-SRIC-User-Guide_WPLS PDF 4 MB
Software
LogTag LTAnalyzer Software EXE 32MB
LogTag Xpress Quick Start EXE 20MB
