TR72A2
Wi-Fi, Bluetooth and USB Humidity and Temperature Data Logger
Measurement Range
Connection Options
Real-time data From: £211.83 View and buy
HAXO-16UDataLogger
By LogTag Data Loggers
Overview
Choose the LogTag HAXO-16U humidity and temperature data logger.
Customise this datalogger
Enhance your monitoring with these options
- Traceable Calibration Certificate *
- Wall Bracket
LCD
Real-time LCD shows current data and limit violations at a glance
Multiple Use
365-day data logging with full start/stop/restart control.
Direct USB
Simply connect via USB and use the free LogTag® Analyzer software to configure the device, download data, and generate detailed reports.
Information
Product Description

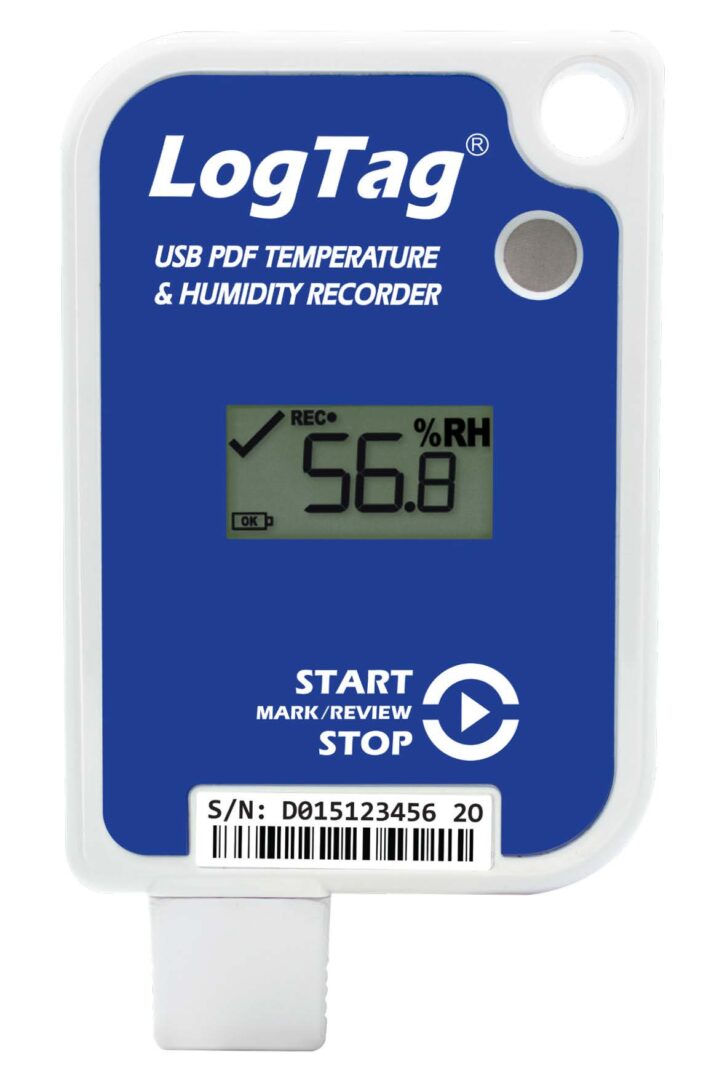

LogTag® HAXO-16U USB Temperature & Humidity Data Logger
Precision Environmental Monitoring – Built for Demanding Applications
The LogTag® HAXO-16U is a high-performance data logger designed for accurate and reliable monitoring of both temperature and humidity in critical storage and transport conditions. With USB PDF generation, robust environmental tolerance, and extended logging capacity, it’s the ideal solution for regulated industries requiring traceable, auditable data.
Technical Specifications & Features
Integrated USB Interface
No docking station required – direct PC connection for rapid data offload and analysis.
Automated Reporting
Generates tamper-proof PDF and CSV reports upon connection – no proprietary software necessary.
Dual Environmental Sensors
High-accuracy temperature and humidity measurement, suitable for cold chain, GxP-compliant operations.
Extended Logging Capacity
Stores up to 32,000 readings (approx. 1 year at 15 min intervals).
Single Button Operation
Simplifies deployment and reduces training overhead.
Rugged Polycarbonate Enclosure
Operates reliably in harsh environments; tested down to -30°C.
LCD Display
Real-time display of temperature, humidity, and status indicators for at-a-glance assessment.
Flexible Deployment Options
Available in single-use or multi-use configurations to match operational needs.
Analyzer Software Support
Optional use of LogTag® Analyzer for advanced configuration, data visualization, and compliance management.
Applications
- Pharmaceutical and biotech cold chain logistics
- Clinical trials and healthcare product transport
- Food storage and perishable goods monitoring
- Industrial and environmental data collection
- GxP and GDP-compliant quality assurance systems
The HAXO-16U is engineered for professionals who require validated, traceable environmental monitoring with minimal infrastructure. Whether you're auditing a refrigerated supply chain or validating storage conditions, this logger delivers dependable performance with minimal user intervention.
Specifications
- Manufacturer
LogTag
- Parameter(s)
Temperature
Humidity- Usage Type
Multiple Use
- Connectivity
USB via interface
- Sensor internal or external
Internal
- Channels
2
- Memory
32,000 logs, up to 365 days @ 16 min logging
- Sample rate
Configurable from 30 seconds to 18 hours
- Range
-30°C ~ +70°C
0 ~ 100% rH- Accuracy
Better than ±0.45 °C (±0.8 °F) for +0 °C to +50 °C (+32 °F to +122 °F), typically ±0.3 °C (±0.6 °F)
Better than ±0.8 °C (±1.4 °F) for +50 °C to +70 °C (+122 °F to +158 °F), typically ±0.5 °C (±0.9 °F)
Better than ±0.95 °C (±1.7 °F) for -30 °C to +0 °C (-22 °F to +32 °F), typically ±0.6 °C (±1.1 °F)
Better than ±3 %RH for 20 %RH to 80 %RH, typically ±2 %RH
Better than ±5 %RH for 0 %RH to 20 %RH, typically ±4 %RH
Better than ±5 %RH for 80 %RH to 100 %RH, typically ±4 %RH- Resolution
Humidity Better than 0.1 %RH
Temperature Better than 0.1 °C or 0.1 °F- Material
Polycarbonate
- Power
CR2450 3V Li-MnO2 UN38.3 Approved coin cell, non-rechargeable, non-replaceable
- Battery Life
1 year storage, 1 year of normal use (based on 16 minute logging)
- Dimensions
107 mm (H) x 54.5 mm (W) x 8.6 mm (T) including USB cap
- Environment rating
IP61 with USB cap fitted
- Operating Conditions
-30°C ~ +70°C
- Alarm
Tick or cross on LCD and in report
- Features
Direct USB
Integrated temperature and humidity sensors.
Single button operation
21 CFR Part 11 compliance
Free software.- Computer Requirements
Windows PC
- Compliance
CE
21 CFR Part 11
Downloads
Product Brochure
HAXO-16U BrochurePDF • 2 MB
Software - Windows PC only
LogTag LTAnalyzer SoftwareEXE • 55MB
